YZ 16335 BVE (84946) - Snapper Scrambler 33" Zero-Turn Mower, 16hp 33" SPINDLE ASSEMBLY Parts Diagram

Scrambler 33" Zero-Turn Mower, 16hp

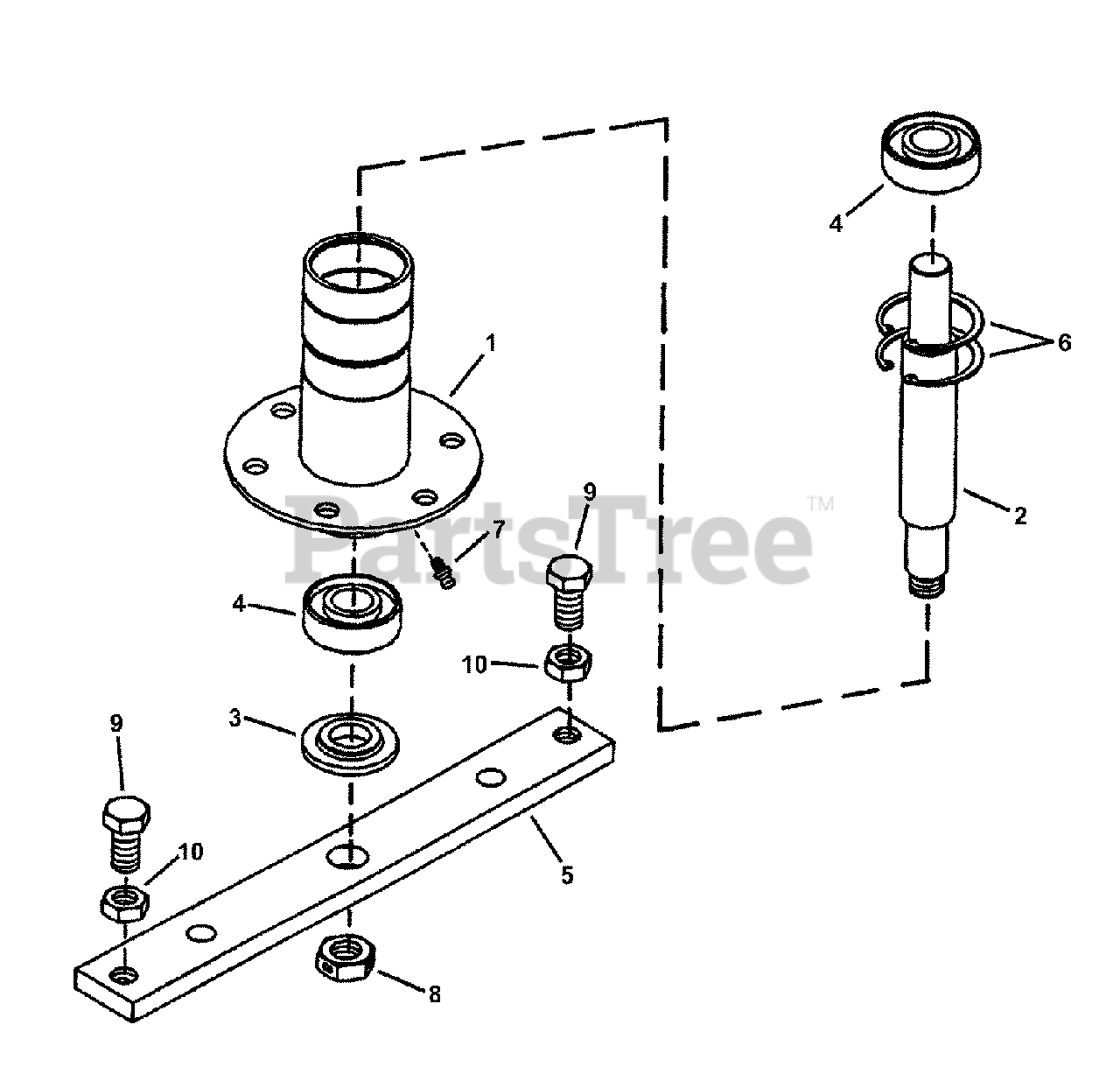

33" SPINDLE ASSEMBLY Parts Diagram

  • Title
--

Snapper 7052917

ASSEMBLY, Spindle
(Superseded to 7052917AYP)

Note: includes items 1 thru 10

$

$

Not available

1

Snapper 7047962

WELDMENT, Spindle Housing
(Superseded to 7052294YP)

$179.99

$

In Stock, only 2 left!

0

2

Snapper 7024687

SHAFT, Spindle (7.54" long)
(Superseded to 7024687YP)

$35.99

$

Usually ships in 2-12 days

0

3

Snapper 7014407

WASHER, Spindle
(Superseded to 7014407SM)

$7.49

$

In Stock, Qty 18

0

4

Snapper 7013313

BALL BEARING, 3/4" I.D.
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

5

Snapper 7037751

HOLDER, Blade
(Superseded to 7037751BMYP)

$45.99

$

Usually ships in 2-12 days

0

6

Snapper 7012491

RING, 1-3/4" External Retaining Ring
(Superseded to 7012491SM)

$4.49

$

In Stock, Qty 20+

0

7

Snapper 7010817

FITTING, Lube, Press-In (for .187 dia. Hole)
(Superseded to 7010817SM)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7090356

NUT, 5/8-18 Hex Center Lock Jam, GR5 or B
(Superseded to 7090356YP)

$5.49

$

In Stock, Qty 20+

0

9

Snapper 7090392

SCREW, 1/2-20 x 1" Hex Head Cap
(Superseded to 703880)

$4.49

$

In Stock, Qty 20+

0

10

Snapper 7091939

NUT, 1/2-20 Hex GR5 or B
(Superseded to 7091939YP)

Note: replaces 90559

$3.49

$

In Stock, Qty 20+

0
