YZ 15334 BVE (84892) - Snapper Yard Cruiser 33" Zero-Turn Mower, 15hp 33" Mower Deck Assembly (Part 3) Parts Diagram

Yard Cruiser 33" Zero-Turn Mower, 15hp

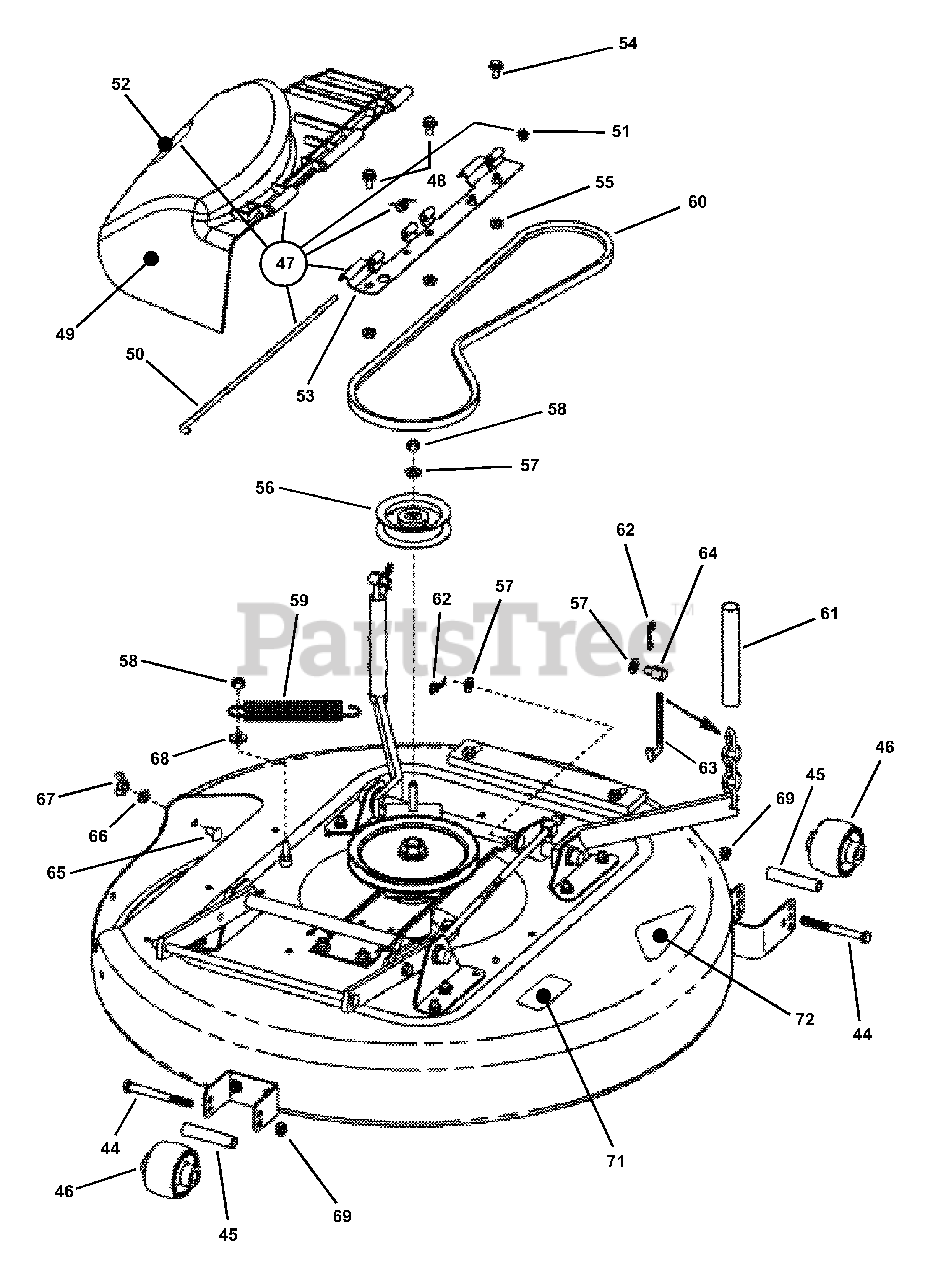

33" Mower Deck Assembly (Part 3) Parts Diagram

  • Title

44

Snapper 7091532

SCREW, 3/8-24 X 3/4" Hex Head Cap, Grade 5
(Superseded to 703876)

$6.99

$

In Stock, Qty 10

0

45

Snapper 7015272

SPACER, 3" Long
(Superseded to 7015272YP)

$7.49

$

Usually ships in 2-12 days

0

46

Snapper 7019190

WHEEL, Gage
(Superseded to 7019190YP)

$11.99

$

Usually ships in 2-12 days

0

47

Snapper 7052555

ASSEMBLY, 28" & 33" Discharge Chute
(Superseded to 7600147YP)

Note: (Includes 48 thru 53)

$122.99

$

In Stock, only 1 left!

0

48

Snapper 7016341

SPRING, Hinge
(Superseded to 7016341YP)

$4.49

$

In Stock, Qty 14

0

49

Snapper 7026233

CHUTE, Discharge
(Superseded to 7026233YP)

$74.99

$

In Stock, Qty 20+

0

50

Snapper 7026234

ROD, Chute
(Superseded to 7105174YP)

$8.99

$

In Stock, Qty 11

0

51

Snapper 7026483

WASHER, Palnut
(Superseded to 7026483YP)

Note: (For 1/4" rod)

$4.49

$

In Stock, only 1 left!

0

52

Snapper 7013010

DECAL, CPSC
(Superseded to 7013010SM)

Note: Was 26831

$9.49

$

In Stock, Qty 10

0

53

Snapper 7033780

HINGE, Plastic Side Chute
(Superseded to 7300886BMYP)

$20.99

$

Usually ships in 2-12 days

0

54

Snapper 7091811

BOLT, 5/16-18 x 5/8" Hex Flange Lock, Grade 5
(Superseded to 7091811SM)

$3.99

$

In Stock, Qty 5

0

55

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

56

Snapper 7075707

IDLER, 4" Outside Diameter Flat
(Superseded to 7075707YP)

Note: Was 27717

$37.99

$

In Stock, only 1 left!

0

57

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514

$3.99

$

In Stock, Qty 20+

0

58

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

59

Snapper 7035969

SPRING, External
(Superseded to 7035969SM)

$20.99

$

Usually ships in 2-12 days

0

60

Snapper 7035389

V-BELT, HA Section, 55.2" Effective Length
(Superseded to 7035389YP)

$49.99

$

In Stock, Qty 5

0

61

Snapper 7028021

COVER, Chain

$

$

Not available

62

Snapper 7091503

HAIRPIN, 3/32 x 1-1/2"
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

63

Snapper 7028728

ADJUSTER, Chain
(Superseded to 703827)

$10.99

$

In Stock, Qty 11

0

64

Snapper 7028200

SWIVEL, Adjustable
(Superseded to 7028200SM)

$13.99

$

In Stock, only 2 left!

0

65

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

66

Snapper 7090188

WASHER, 11/32" Flat
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 1 left!

0

67

Snapper 7091537

NUT, 5/16-18 Wing
(Superseded to 7091537YP)

Note: Was 90492

$4.49

$

In Stock, only 3 left!

0

68

Snapper 7091528

WASHER, 3/8" Flat
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

69

Snapper 7090289

NUT, 3/8-24 Hex Center Lock
(Superseded to 703458)

Note: Was 91600

$4.99

$

In Stock, Qty 14

0

?70

Snapper 7014852

DECAL, Caution
(Superseded to 7101665YP)

$14.99

$

In Stock, Qty 5

0

71

Snapper 7014852

DECAL, Caution
(Superseded to 7101665YP)

Note: Was 16973

$14.99

$

In Stock, Qty 5

0

72

Snapper 7022991

DECAL, Hi-Vac
(Superseded to 7022991YP)

$

$

Not available
