YZ 15334 BVE (84892) - Snapper Yard Cruiser 33" Zero-Turn Mower, 15hp 33" Mower Deck Assembly (Part 2) Parts Diagram

Yard Cruiser 33" Zero-Turn Mower, 15hp

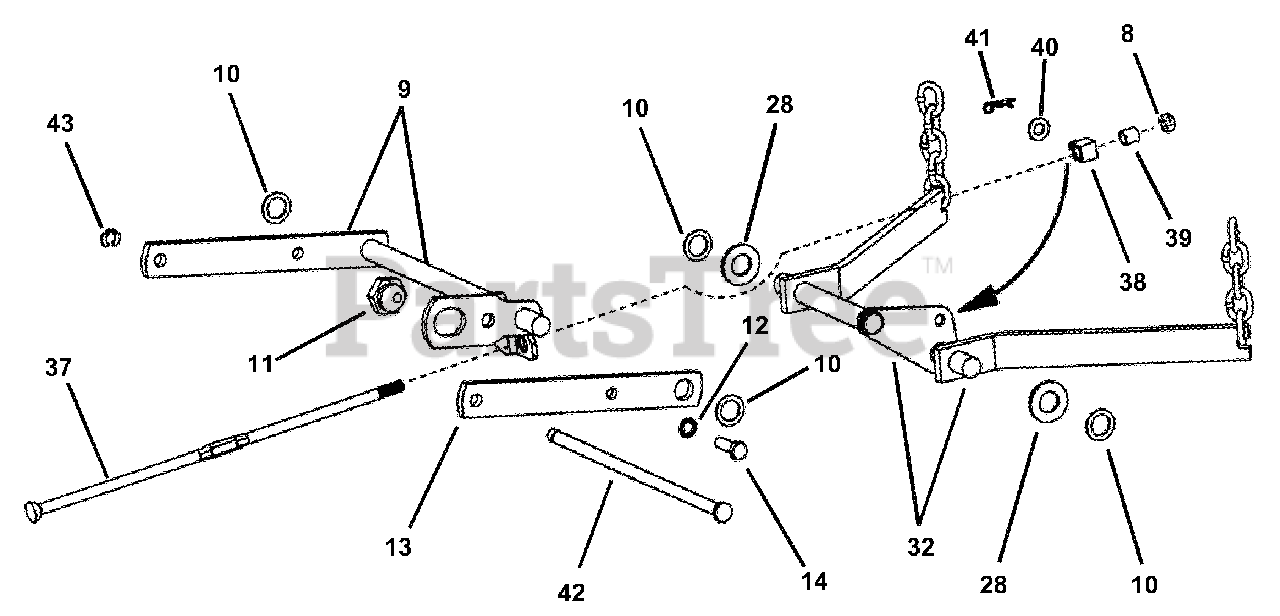

33" Mower Deck Assembly (Part 2) Parts Diagram

  • Title

8

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 2 left!

0

9

Snapper 7042586

ARM, Front Lift (weldment)
(Superseded to 7042586YP)

$128.99

$

Usually ships in 2-12 days

0

10

Snapper 7010935

WASHER, 3/4"
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

11

Snapper 7015447

ECCENTRIC, Leveling (3/8-24 thread)
(Superseded to 7015447YP)

$22.99

$

Usually ships in 2-12 days

0

12

Snapper 7090390

WASHER, 3/8" Internal Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0

13

Snapper 7034815

ARM, Front Lift
(Superseded to 7034815YP)

$18.99

$

Usually ships in 2-12 days

0

14

Snapper 7090163

SCREW, 3/8-24 x 1-1/4" Hex Head Cap

$

$

Not available

28

Snapper 7032028

WASHER, 25/32" Flat
(Superseded to 7032028YP)

$4.99

$

Usually ships in 2-12 days

0

32

Snapper 7042585

ARM, Rear Lift (weldment)
(Superseded to 7042585YP)

$176.99

$

Usually ships in 2-12 days

0

37

Snapper 7035495

ROD, Cutting Deck Timing
(Superseded to 7035495YP)

$22.99

$

Usually ships in 2-12 days

0

38

Snapper 7024586

SWIVEL, Brake Link PM
(Superseded to 7024586YP)

$4.99

$

Usually ships in 2-12 days

0

39

Snapper 7021815

SPACER, 25/64"

$7.99

$

Usually ships in 2-12 days

0

40

Snapper 7090122

WASHER, 3/8"
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

41

Snapper 7091310

HAIRPIN, #13
(Superseded to 703430)

Note: Was 16231

$3.49

$

In Stock, only 2 left!

0

42

Snapper 7022717

ROD, Deck Support
(Superseded to 7022717YP)

$48.99

$

Usually ships in 2-12 days

0

43

Snapper 7017847

RING, 7/16" Snap
(Superseded to 7017847YP)

$4.49

$

Usually ships in 2-12 days

0
