YZ 145383 BVE (84732) - Snapper Yard Cruiser 38" Zero-Turn Mower, 14.5hp 38" Mower Deck Assembly (Part 2) Parts Diagram

Yard Cruiser 38" Zero-Turn Mower, 14.5hp

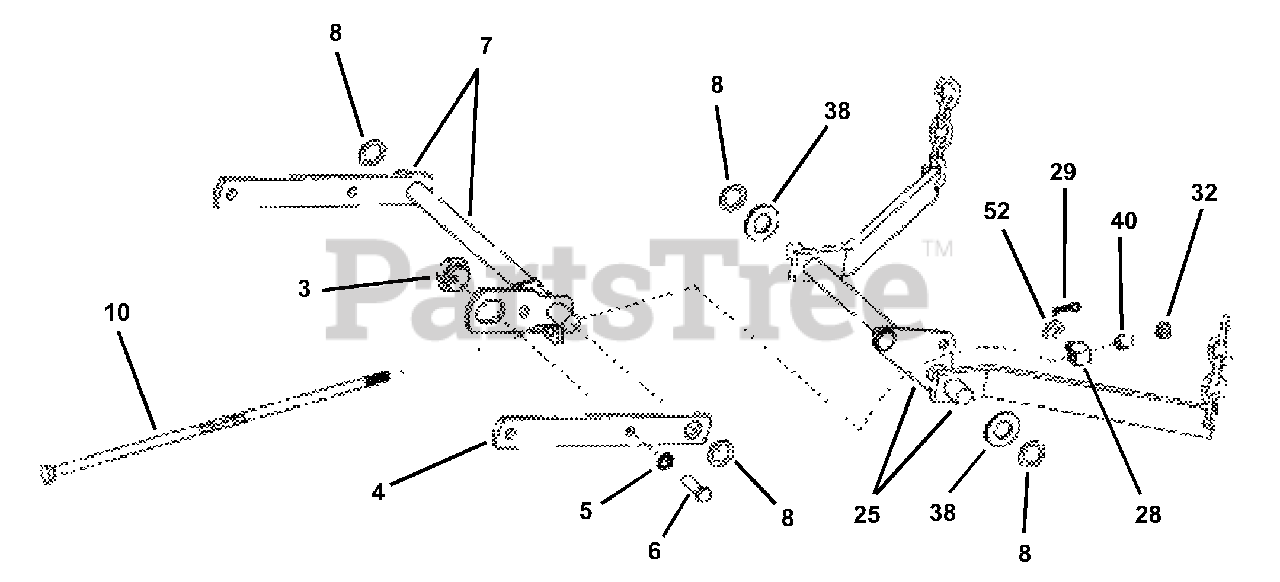

38" Mower Deck Assembly (Part 2) Parts Diagram

  • Title

3

Snapper 7015447

ECCENTRIC, Leveling (3/8-24 thread)
(Superseded to 7015447YP)

$22.99

$

Usually ships in 2-12 days

0

4

Snapper 7034815

LIFT ARM, Front
(Superseded to 7034815YP)

$18.99

$

Usually ships in 2-12 days

0

5

Snapper 7090390

WASHER, 3/8" Internal Tooth Lk.
(Superseded to 703930)

$4.49

$

Usually ships in 2-12 days

0

6

Snapper 7090163

SCREW, 3/8-24 x 1-1/4" Hex Head Cap, Grade 5

$

$

Not available

7

Snapper 7042586

LIFT ARM, Front (weldment)
(Superseded to 7042586YP)

$128.99

$

Usually ships in 2-12 days

0

8

Snapper 7010935

WASHER, 3/4" x1-1/8" Flat
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

10

Snapper 7035495

ROD, Cutter Deck Timing(3/8-16)
(Superseded to 7035495YP)

$22.99

$

Usually ships in 2-12 days

0

25

Snapper 7042585

TIMING ARM, Rear (weldment)
(Superseded to 7042585YP)

$176.99

$

Usually ships in 2-12 days

0

28

Snapper 7024586

SWIVEL, Brake Link
(Superseded to 7024586YP)

$4.99

$

Usually ships in 2-12 days

0

29

Snapper 7091310

HAIR PIN, #13
(Superseded to 703430)

Note: Was 16231

$3.49

$

In Stock, only 2 left!

0

32

Snapper 7091585

NUT, 3/8-16 Hex Center Lock, Grade 5
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 2 left!

0

38

Snapper 7032028

WASHER, 3/4" x 1-1/2" Flat
(Superseded to 7032028YP)

$4.99

$

Usually ships in 2-12 days

0

40

Snapper 7021815

SPACER, .391 I.D. x .520 O.D. x .531 Thick

$7.99

$

Usually ships in 2-12 days

0

52

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514

$3.99

$

In Stock, Qty 20+

0
