YZ 145383 BVE (84732) - Snapper Yard Cruiser 38" Zero-Turn Mower, 14.5hp 38" Mower Deck Assembly (Part 1) Parts Diagram

Yard Cruiser 38" Zero-Turn Mower, 14.5hp

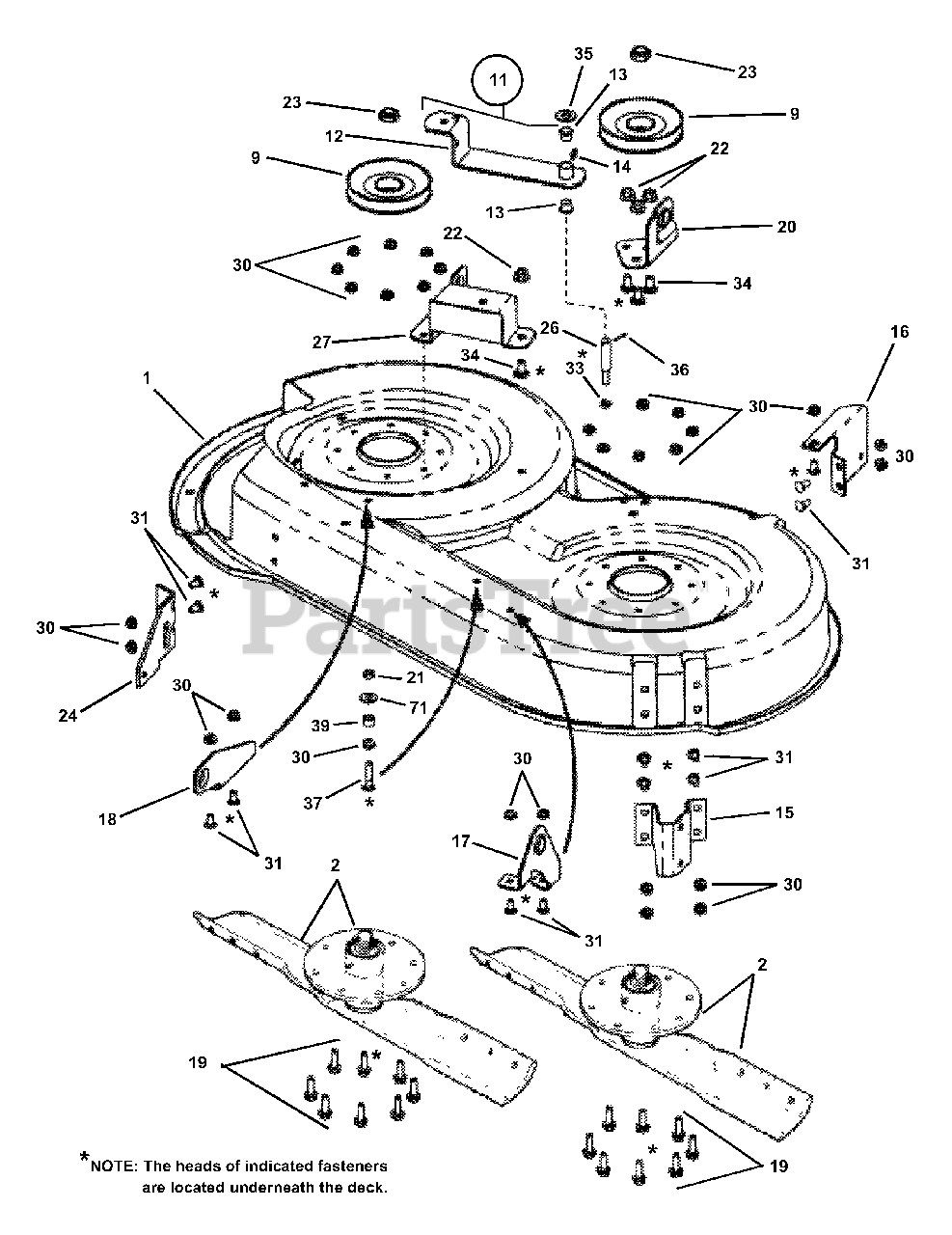

38" Mower Deck Assembly (Part 1) Parts Diagram

  • Title

1

Snapper 7061957

DECK, 38" Replacement
(Superseded to 7061957YP)

$805.99

$

Usually ships in 2-12 days

0

2

Snapper 7054513

ASSEMBLY, Spindle
(Superseded to 7054513YP)

Note: (See "38" Mower Deck Assembly (Part 2)" illustration and parts list for breakdown)

$448.99

$

Usually ships in 2-12 days

0

9

Snapper 7029213

PULLEY, 4-1/2" O.D., A/B Groove
(Superseded to 7029213YP)

$59.99

$

In Stock, only 3 left!

0

11

Snapper 7058440

ASS'Y, Idler Arm
(Superseded to 7058440YP)

Note: (Incl. 12-14)

$186.99

$

Usually ships in 2-12 days

0

12

Snapper 7058440

WELDMENT, Idler Arm
(Superseded to 7058440YP)

Note: Was 58439

$186.99

$

Usually ships in 2-12 days

0

13

Snapper 7011016

BUSHING, 1/2" Nylon
(Superseded to 7011016YP)

$4.49

$

In Stock, only 3 left!

0

14

Snapper 7013864

LUBE FITTING, Straight (press-fit for .187 dia. Hole)
(Superseded to 7013864SM)

$3.49

$

In Stock, Qty 12

0

15

Snapper 7033756

BRACKET, Gage Wheel
(Superseded to 7033756SM)

$19.99

$

In Stock, only 1 left!

0

16

Snapper 7033891

BRACKET, Left Hand Wheel
(Superseded to 7033891YP)

$21.99

$

Usually ships in 2-12 days

0

17

Snapper 7034861

BRK'T, 38" Deck Lift, LH Front

$

$

Not available

18

Snapper 7034863

BRK'T, 38" Deck Lift, RH Front
(Superseded to 7034863YP)

$24.99

$

Usually ships in 2-12 days

0

19

Snapper 7027168

SCREW, 5/16-18 x 1" Hex Head Cap, Grade 5
(Superseded to 703585)

Note: Was 90636

$4.99

$

In Stock, only 1 left!

0

20

Snapper 7035566

BRK'T, Left Hand Rear Lift Arm
(Superseded to 7035566YP)

$41.99

$

Usually ships in 2-12 days

0

21

Snapper 7091575

NUT, 5/16-18 Hex Center Lock Grade 5
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

22

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

23

Snapper 7091006

NUT, 5/8-18 Hex Nyloc
(Superseded to 7091006SM)

$4.49

$

Usually ships in 2-12 days

0

24

Snapper 7035494

BRACKET, Gage Wheel
(Superseded to 7035494BMYP)

$41.99

$

Usually ships in 2-12 days

0

26

Snapper 7042964

STUD, Idler (5/16-24 thread)
(Superseded to 7042964SM)

$32.99

$

In Stock, only 3 left!

0

27

Snapper 7044648

BRACKET, Stationary Idler
(Superseded to 7044648YP)

$88.99

$

Usually ships in 2-12 days

0

30

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

31

Snapper 7090799

BOLT, 5/16-18 x 5/8" Short Neck Carriage, Grade 5
(Superseded to 703447)

Note: Was 91026

$4.49

$

In Stock, Qty 20+

0

33

Snapper 7092062

NUT, 5/16-24 Hex Center Lock
(Superseded to 703459)

Note: Was 11201

$3.49

$

In Stock, Qty 20+

0

34

Snapper 7091547

BOLT, 3/8-16 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

35

Snapper 7091587

WASHER, 1/2" x 1-1/16" Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

36

Snapper 7091597

COTTER-PIN, 3/32 x 3/4"
(Superseded to 703312)

Note: Was 91082

$3.99

$

In Stock, Qty 20+

0

37

Snapper 7091303

BOLT, 5/16-18 x 1-1/2" Short Neck Carriage, Grade 5
(Superseded to 703800)

Note: Was 90958

$3.99

$

In Stock, Qty 7

0

39

Snapper 7028620

SPACER, .340 I.D. x .630 O.D. x .310 Thick
(Superseded to 7028620SM)

$4.49

$

In Stock, only 1 left!

0

Snapper 7026154

DECAL, 38"
(Superseded to 7026154SM)

$6.49

$

Usually ships in 2-12 days

0

Snapper 7013010

DECAL, CPSC, Heavy Adhesi
(Superseded to 7013010SM)

Note: Was 26831

$9.49

$

In Stock, Qty 11

0

Snapper 7046720

DECAL, Chute Deflector
(Superseded to 7046720SM)

$7.49

$

Usually ships in 2-12 days

0

71

Snapper 7091528

WASHER, 3/8" I.D. x 7/8 O.D. Flat
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0
