YZ 145382 BVE (84599) - Snapper Yard Cruiser 38" Zero-Turn Mower, 14.5hp 38" Mower Deck Assembly Parts Diagram

Yard Cruiser 38" Zero-Turn Mower, 14.5hp

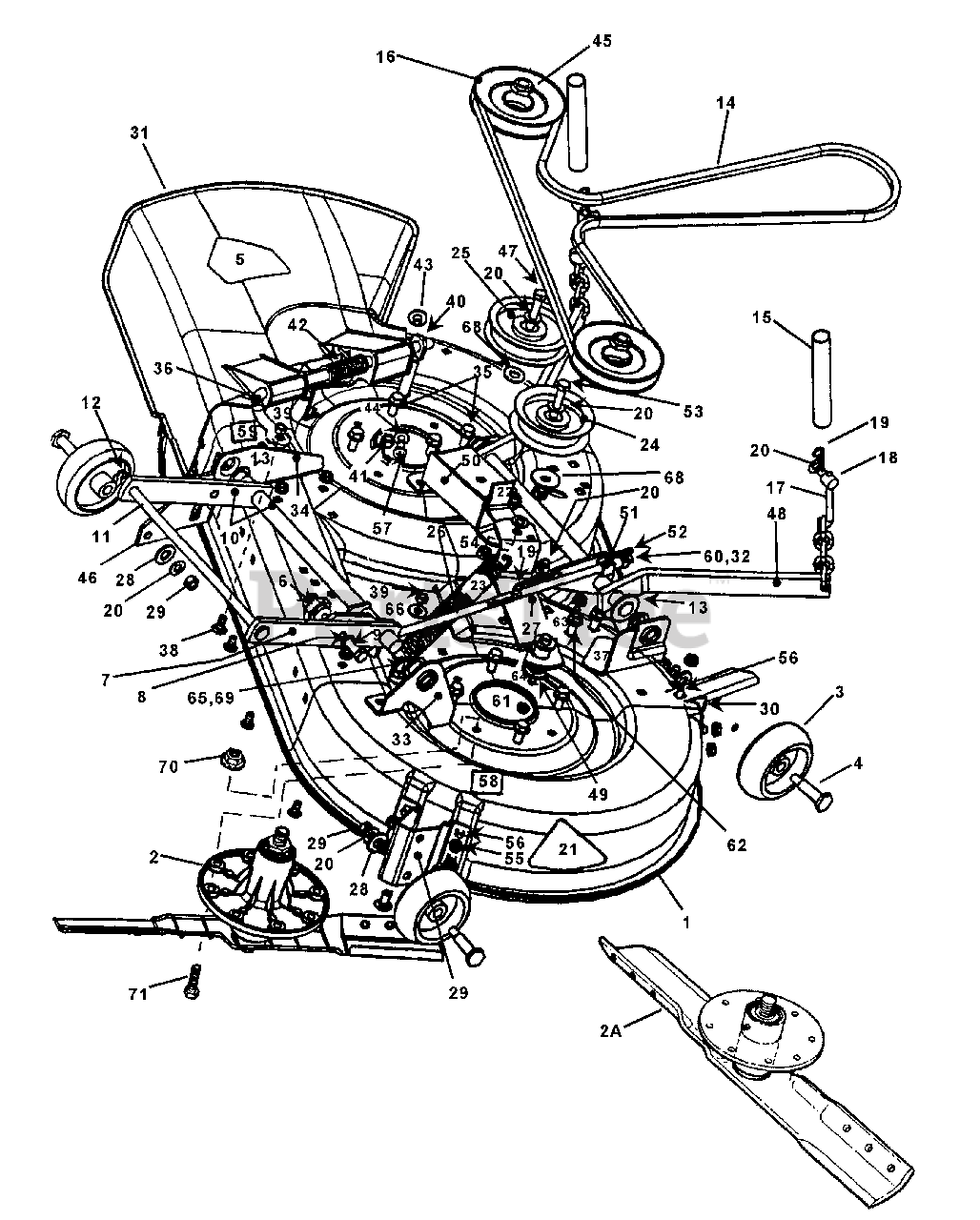

38" Mower Deck Assembly Parts Diagram

  • Title

1

Snapper 7061957

DECK, 38"
(Superseded to 7061957YP)

Note: Was 35646

$805.99

$

Usually ships in 2-12 days

0

2

Snapper 7054513

ASSEMBLY, Spindle
(Superseded to 7054513YP)

Note: Was 52847 (Series 1)

$448.99

$

Usually ships in 2-12 days

0

2A

Snapper 7063198

ASSEMBLY, Spindle
(Superseded to 7063198SM)

Note: Was 58357 (Series 2)

$286.99

$

Usually ships in 2-12 days

0

3

Snapper 7026122

WHEEL 4 x 1-1/2" Offset
(Superseded to 7026122SM)

$10.99

$

In Stock, only 2 left!

0

4

Snapper 7091526

BOLT, 3/8-24 Shoulder
(Superseded to 7091526SM)

$

$

Not available

5

Snapper 7013010

DECAL, CPSC- Heavy Adhesive
(Superseded to 7013010SM)

Note: Was 26831

$9.49

$

In Stock, Qty 11

0

6

Snapper 7015447

ECCENTRIC, Leveling
(Superseded to 7015447YP)

$22.99

$

Usually ships in 2-12 days

0

7

Snapper 7034815

LIFT ARM, Front
(Superseded to 7034815YP)

$18.99

$

Usually ships in 2-12 days

0

8

Snapper 7090390

WASHER, 3/8" Internal Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0

9

Snapper 7090163

SCREW, 3/8-24 x 1-1/4" Hex Head Cap. Grade 5

$

$

Not available

10

Snapper 7042586

LIFT ARM, Front
(Superseded to 7042586YP)

$128.99

$

Usually ships in 2-12 days

0

11

Snapper 7022717

ROD, Deck Support
(Superseded to 7022717YP)

$48.99

$

Usually ships in 2-12 days

0

12

Snapper 7017847

RING, .438 External Retaining
(Superseded to 7017847YP)

$4.49

$

Usually ships in 2-12 days

0

13

Snapper 7010935

WASHER, 3/4" I.D. x 1-1/8" Flat
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

14

Snapper 7029308

V-BELT, HA Section
(Superseded to 7029308YP)

$56.99

$

In Stock, only 2 left!

0

15

Snapper 7028021

COVER, Chain

$

$

Not available

16

Snapper 7029213

PULLEY, 4-1/2" O.D. A/B Groove
(Superseded to 7029213YP)

$59.99

$

In Stock, only 3 left!

0

17

Snapper 7028728

ADJUSTER, Chain
(Superseded to 703827)

$10.99

$

Usually ships in 2-12 days

0

18

Snapper 7028200

SWIVEL, Adjustable
(Superseded to 7028200SM)

$13.99

$

In Stock, Qty 5

0

19

Snapper 7091503

HAIR PIN, 3/32 x 1-1/2"
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

20

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514

$3.99

$

In Stock, Qty 20+

0

21

Snapper 7026154

DECAL, 38 Inch
(Superseded to 7026154SM)

$6.49

$

Usually ships in 2-12 days

0

22

Snapper 7036561

BELT GUIDE, 38/42

$

$

Not available

23

Snapper 7035969

SPRING, Extension
(Superseded to 7035969SM)

$20.99

$

Usually ships in 2-12 days

0

24

Snapper 7075707

IDLER, 4" O.D. Flat
(Superseded to 7075707YP)

Note: Was 27717

$37.99

$

In Stock, only 2 left!

0

25

Snapper 7018574

IDLER, 4-1/8" O.D. Flat
(Superseded to 7018574SM)

$38.99

$

In Stock, Qty 20+

0

26

Snapper 7035495

ROD, Cutter Deck Timing
(Superseded to 7035495YP)

$22.99

$

Usually ships in 2-12 days

0

27

Snapper 7063127

ARM, Idler
(Superseded to 7063127YP)

Note: Was 42646 (Series 1)

$198.99

$

Usually ships in 2-12 days

0

Snapper 7058440

ARM, Idler
(Superseded to 7058440YP)

Note: Was 58439 (Series 2)

$186.99

$

Usually ships in 2-12 days

0

28

Snapper 7091587

WASHER, 1/2" x 1-1/16" Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

29

Snapper 7033756

BRACKET, Gage Wheel
(Superseded to 7033756SM)

$19.99

$

In Stock, only 1 left!

0

30

Snapper 7033891

BRACKET, L.H. Wheel
(Superseded to 7033891YP)

$21.99

$

Usually ships in 2-12 days

0

31

Snapper 7029425

CHUTE, Discharge
(Superseded to 7104733YP)

$87.99

$

In Stock, Qty 20+

0

32

Snapper 7021815

SPACER, 25/64"

$7.99

$

Usually ships in 2-12 days

0

33

Snapper 7034861

BRACKET, 38 Deck Lift, L.H. Front

$

$

Not available

34

Snapper 7034863

BRACKET, 38 Deck Lift, R.H. Front
(Superseded to 7034863YP)

$24.99

$

Usually ships in 2-12 days

0

35

Snapper 7090815

SCREW, 3/8-16 x 3/4" Hex Washer Self-Tap
(Superseded to 703950)

$5.49

$

In Stock, only 3 left!

0

36

Snapper 7035502

ROD, Pivot, Side Discharge
(Superseded to 7035502SM)

$32.99

$

Usually ships in 2-12 days

0

37

Snapper 7035566

BRACKET, L.H. Rear Lift Arm
(Superseded to 7035566YP)

$41.99

$

Usually ships in 2-12 days

0

38

Snapper 7091508

BOLT, 5/16-18 x 3/4" Carr. Grade 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

39

Snapper 7091575

NUT, 5/16-18 Hex Center Lock, Grade 5
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

40

Snapper 7035503

ROD, Mounting, Side Discharge
(Superseded to 7035503SM)

$14.99

$

Usually ships in 2-12 days

0

41

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

42

Snapper 7035813

SPRING, Torsion- Side Discharge
(Superseded to 7035813SM)

$24.99

$

In Stock, only 1 left!

0

43

Snapper 7036543

TEENUT, 5/16-18 Thread
(Superseded to 7036543SM)

$2.99

$

Usually ships in 2-12 days

0

44

Snapper 7090188

WASHER, 5/16" I.D. x 11/16" Flat
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 2 left!

0

45

Snapper 7091006

NUT, 5/8-18 Lock
(Superseded to 7091006SM)

$4.49

$

Usually ships in 2-12 days

0

46

Snapper 7035494

BRACKET, Gage Wheel
(Superseded to 7035494BMYP)

$41.99

$

Usually ships in 2-12 days

0

47

Snapper 7091305

SCREW, 3/8-16 x 2", Hex Head Cap, Grade 5
(Superseded to 7091305SM)

$4.49

$

Usually ships in 2-12 days

0

48

Snapper 7042585

TIMING ARM, Rear
(Superseded to 7042585YP)

$176.99

$

Usually ships in 2-12 days

0

49

Snapper 7042964

STUD, Idler
(Superseded to 7042964SM)

$32.99

$

In Stock, only 3 left!

0

50

Snapper 7044648

BRACKET, Stationary Idler
(Superseded to 7044648YP)

$88.99

$

Usually ships in 2-12 days

0

51

Snapper 7024586

SWIVEL, Brake Link
(Superseded to 7024586YP)

$4.99

$

Usually ships in 2-12 days

0

52

Snapper 7091310

HAIR PIN, #13
(Superseded to 703430)

Note: Was 16231

$3.49

$

In Stock, only 2 left!

0

53

Snapper 7091553

SCREW, 3/8-16 x 1-3/4" Hex Head Cap, Grade 5
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

54

Snapper 7091585

NUT, 3/8-16 Hex Ctr Lock, Gr. 5
(Superseded to 703347)

$4.99

$

In Stock, only 4 left!

0

55

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

56

Snapper 7090799

BOLT, 5/16-18 x 5/8" Carriage, Grade 5
(Superseded to 703447)

Note: Was 91026

$4.49

$

In Stock, Qty 20+

0

57

Snapper 7091833

SCREW, 5/16-18 x 5/8" Pan Head
(Superseded to 7091833SM)

Note: Was 91918

$4.49

$

In Stock, only 1 left!

0

58

Snapper 7014852

DECAL, Caution
(Superseded to 7101665YP)

Note: Was 16973

$14.99

$

In Stock, only 3 left!

0

59

Snapper 7014852

DECAL, Caution
(Superseded to 7101665YP)

$14.99

$

In Stock, only 3 left!

0

60

Snapper 7091585

NUT, 3/8-16 Hex Ctr. Lock, Grade 5
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 4 left!

0

61

Snapper 7092062

NUT, 5/16-24 Hex Center Lock
(Superseded to 703459)

Note: Was 11201

$3.49

$

In Stock, Qty 20+

0

62

Snapper 7091547

BOLT, 3/8-16 x 3/4" Carr., Gr. 5
(Superseded to 703448)

Note: Was 90850

$4.49

$

In Stock, Qty 20+

0

63

Snapper 7091587

WASHER, 1/2" I.D. x 1-1/16" O.D. Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

64

Snapper 7091597

COTTER-PIN, 3/32 x 3/4"
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

65

Snapper 7091303

BOLT, 5/16-18 x 1-1/2" Carr., Gr. 5
(Superseded to 703800)

Note: Was 90958

$3.99

$

In Stock, Qty 12

0

66

Snapper 7091528

WASHER, 3/8" I.D. x 7/8" O.D. Flat
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

?67

Snapper 7032028

WASHER, 3/4" I.D. x 1-1/2" O.D. Flat
(Superseded to 7032028YP)

$4.99

$

Usually ships in 2-12 days

0

68

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

69

Snapper 7028620

SPACER, 11/32"
(Superseded to 7028620SM)

$4.49

$

In Stock, only 1 left!

0

70

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

71

Snapper 7027168

SCREW, 5/16-18 x 1" Hex Cap
(Superseded to 703585)

Note: Was 90636

$4.99

$

In Stock, only 1 left!

0
