YZ 145332 BVE (84598) - Snapper Yard Cruiser 33" Zero-Turn Mower, 14.5hp 33" Mower Deck Assembly Parts Diagram

Yard Cruiser 33" Zero-Turn Mower, 14.5hp

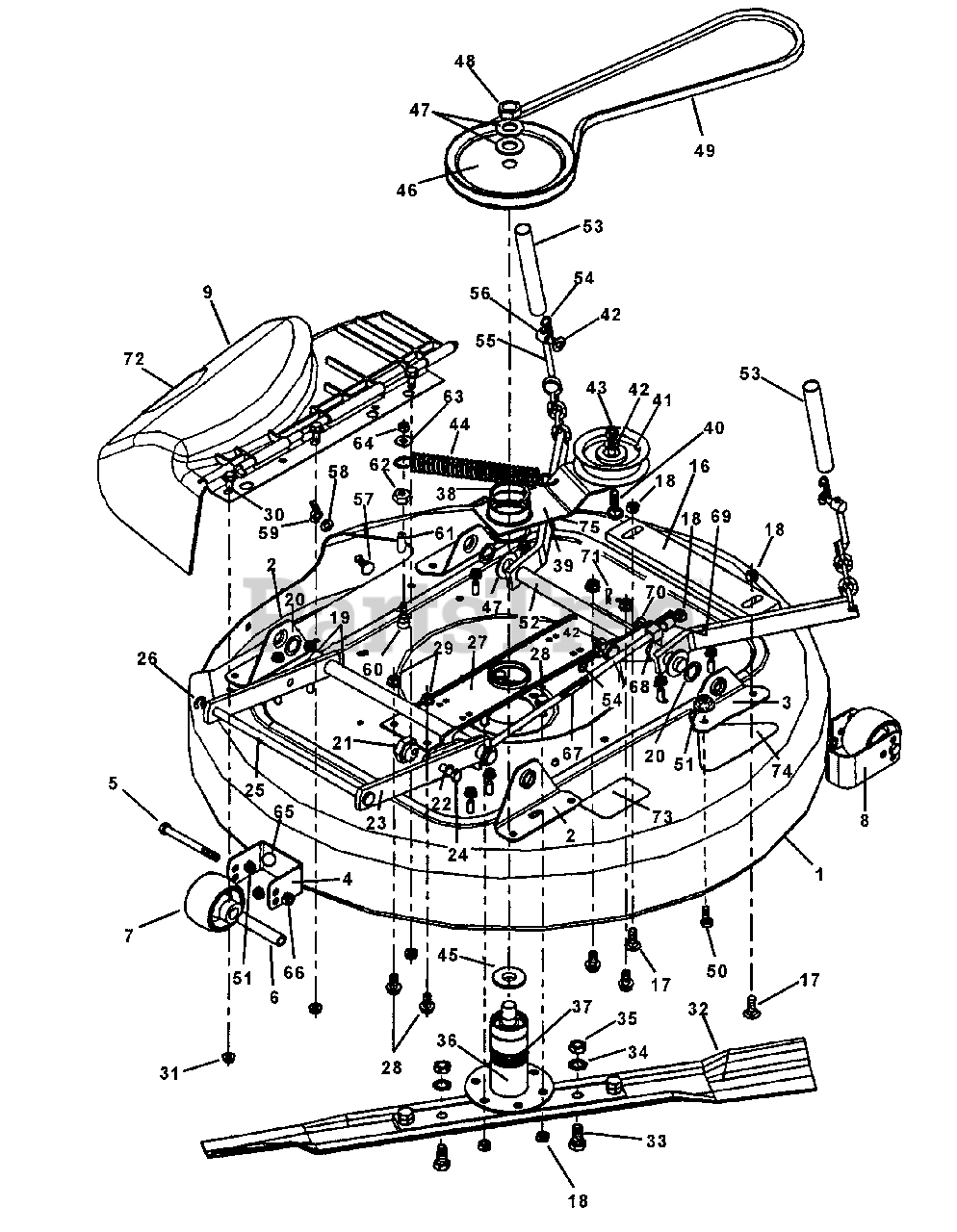

33" Mower Deck Assembly Parts Diagram

  • Title

1

Snapper 7061956

DECK, 33"
(Superseded to 7061956YP)

Note: Was 36580

$731.99

$

In Stock, only 1 left!

0

2

Snapper 7034866

BRACKET, Deck Lift Slotted

$

$

Not available

3

Snapper 7034867

BRACKET, Deck Lift

$

$

Not available

4

Snapper 7033570

BRACKET, Anti-Scalp Adj. Front
(Superseded to 7033570BMYP)

$19.99

$

In Stock, only 1 left!

0

5

Snapper 7091532

SCREW, 3/8-24 x 3/4" H.H. Cap
(Superseded to 703876)

$6.99

$

In Stock, Qty 10

0

6

Snapper 7015272

SPACER, 3" Long
(Superseded to 7015272YP)

$7.49

$

Usually ships in 2-12 days

0

7

Snapper 7019190

WHEEL, Gage
(Superseded to 7019190YP)

$11.99

$

Usually ships in 2-12 days

0

8

Snapper 7033571

BRACKET, Anti-Scalp Adj. Side
(Superseded to 7033571BMYP)

$14.99

$

In Stock, only 4 left!

0

9

Snapper 7052555

ASSM'Y. Chute 28 & 33" Discharge
(Superseded to 7600147YP)

$122.99

$

In Stock, only 1 left!

0

?10

Snapper 7016341

HINGE, Spring
(Superseded to 7016341YP)

$4.49

$

In Stock, Qty 14

0

?11

Snapper 7026233

CHUTE, Discharge
(Superseded to 7026233YP)

$74.99

$

In Stock, Qty 20+

0

?12

Snapper 7026234

ROD, Chute
(Superseded to 7105174YP)

$8.99

$

In Stock, Qty 11

0

?13

Snapper 7026483

WASHER, Palnut
(Superseded to 7026483YP)

$4.49

$

In Stock, only 1 left!

0

?14

Snapper 7013010

DECAL, CPSC
(Superseded to 7013010SM)

Note: Was 26831

$9.49

$

In Stock, Qty 11

0

?15

Snapper 7033780

HINGE, Side Chute Plastic
(Superseded to 7300886BMYP)

$20.99

$

Usually ships in 2-12 days

0

16

Snapper 7036579

BAR, Weight Rear
(Superseded to 7036579YP)

$55.99

$

Usually ships in 2-12 days

0

17

Snapper 7091640

BOLT, 3/8-16 x 1" Carriage
(Superseded to 703814)

Note: Was 90747

$4.49

$

In Stock, only 4 left!

0

18

Snapper 7091585

NUT, 3/8-16 Hex Lock
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 2 left!

0

19

Snapper 7042586

ARM, Front Lift
(Superseded to 7042586YP)

$128.99

$

Usually ships in 2-12 days

0

20

Snapper 7010935

WASHER, 3/4"
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

21

Snapper 7015447

ECCENTRIC, Leveling
(Superseded to 7015447YP)

$22.99

$

Usually ships in 2-12 days

0

22

Snapper 7090390

WASHER, 3/8" Internal Tooth Lock
(Superseded to 703930)

$4.49

$

Usually ships in 2-12 days

0

23

Snapper 7034815

ARM, Front Lift
(Superseded to 7034815YP)

$18.99

$

Usually ships in 2-12 days

0

24

Snapper 7090163

SCREW, 3/8-24 x 1-1/4" H. H. Cap

$

$

Not available

25

Snapper 7022717

ROD, Deck Support
(Superseded to 7022717YP)

$48.99

$

Usually ships in 2-12 days

0

26

Snapper 7017847

RING, 7/16" Snap
(Superseded to 7017847YP)

$4.49

$

Usually ships in 2-12 days

0

27

Snapper 7038018

BRACE, Spindle
(Superseded to 7038018AYP)

$23.99

$

Usually ships in 2-12 days

0

28

Snapper 7091588

BOLT, 3/8-16 x 3/4" Hex Flange Lock, Grade 5
(Superseded to 703955)

Note: Was 90612

$4.49

$

In Stock, Qty 6

0

29

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

30

Snapper 7091811

BOLT, 5/16-18 x 5/8" Hex Flange Lock, Grade 5
(Superseded to 7091811SM)

$3.99

$

In Stock, Qty 5

0

31

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock Grade 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

32

Snapper 7034168

BLADE, 33" High Lift
(Superseded to 7034168BZYP)

$26.99

$

In Stock, only 3 left!

0

33

Snapper 7090392

SCREW, 1/2-20 x 1" H. H. Cap
(Superseded to 703880)

$4.49

$

In Stock, Qty 20+

0

34

Snapper 7090509

WASHER, 1/2" Internal Tooth Lock
(Superseded to 7090509YP)

$4.49

$

In Stock, Qty 10

0

35

Snapper 7090559

NUT, 1/2-20 Hex Jam
(Superseded to 703903)

$3.49

$

In Stock, Qty 20+

0

36

Snapper 7052917

ASSEMBLY, Spindle
(Superseded to 7052917AYP)

$

$

Not available

37

Snapper 7012670

RING, 2" Tolerance
(Superseded to 7012670YP)

$8.49

$

In Stock, Qty 5

0

38

Snapper 7010740

RING, 2" External Retaining
(Superseded to 7010740YP)

$5.49

$

In Stock, only 3 left!

0

39

Snapper 7042587

ARM, Idler
(Superseded to 7042587YP)

$84.99

$

Usually ships in 2-12 days

0

40

Snapper 7090990

BOLT, 3/8-16 x 2" Carriage
(Superseded to 7090990YP)

$5.49

$

Usually ships in 2-12 days

0

41

Snapper 7075707

IDLER, 4" O.D. Flat
(Superseded to 7075707YP)

Note: Was 27717

$37.99

$

In Stock, only 1 left!

0

42

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514

$3.99

$

In Stock, Qty 20+

0

43

Snapper 7091585

NUT, 3/8-16 Hex Lock
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

44

Snapper 7035969

SPRING, External
(Superseded to 7035969SM)

$20.99

$

Usually ships in 2-12 days

0

45

Snapper 7014407

WASHER, Spindle
(Superseded to 7014407SM)

$7.49

$

In Stock, Qty 17

0

46

Snapper 7026558

PULLEY, Spindle
(Superseded to 7026558YP)

$34.99

$

Usually ships in 2-12 days

0

47

Snapper 7032028

WASHER, 25/32" Flat
(Superseded to 7032028YP)

$4.99

$

Usually ships in 2-12 days

0

48

Snapper 7074467

NUT, 3/4-16 Hex Jam
(Superseded to 7074467SM)

Note: Was 10027

$4.49

$

In Stock, Qty 10

0

49

Snapper 7035389

BELT, HA 33" Deck
(Superseded to 7035389YP)

$49.99

$

In Stock, Qty 5

0

50

Snapper 7090595

BOLT, 5/16-18 x 3/4" Hex Flange Lock
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

51

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

52

Snapper 7042585

ARM, Rear Lift
(Superseded to 7042585YP)

$176.99

$

Usually ships in 2-12 days

0

53

Snapper 7028021

COVER, Chain

$

$

Not available

54

Snapper 7091503

PIN, 3/32 x 1-1/2" Hair
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

55

Snapper 7028728

ADJUSTER, Chain
(Superseded to 703827)

$10.99

$

In Stock, Qty 12

0

56

Snapper 7028200

SWIVEL, Adjustable
(Superseded to 7028200SM)

$13.99

$

In Stock, only 2 left!

0

57

Snapper 7091508

BOLT, 5/16-18 x 3/4" Carriage Grade 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

58

Snapper 7090188

WASHER, 11/32" Grade 5
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 3 left!

0

59

Snapper 7091537

NUT, 5/16-18 Wing
(Superseded to 7091537YP)

Note: Was 90492

$4.49

$

In Stock, only 3 left!

0

60

Snapper 7090700

BOLT, 5/16-18 x 1-1/2" Hex Flange Lock
(Superseded to 7091602SM)

$3.99

$

In Stock, Qty 5

0

61

Snapper 7028620

SPACER, 11/32"
(Superseded to 7028620SM)

$4.49

$

In Stock, only 1 left!

0

62

Snapper 7091575

NUT, 5/16-18 Hex Lock
(Superseded to 703164)

Note: Was 91067

$3.49

$

In Stock, Qty 19

0

63

Snapper 7091528

WASHER, 3/8" Flat
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

64

Snapper 7091585

NUT, 5/16-18 Hex Lock
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

65

Snapper 7090731

BOLT, 5/16-18 x 1/2" Carriage
(Superseded to 703798)

Note: Was 90004

$4.49

$

Usually ships in 2-12 days

0

66

Snapper 7090289

NUT, 3/8-24 Hex Lock
(Superseded to 703458)

Note: Was 91600

$4.99

$

In Stock, Qty 14

0

67

Snapper 7035495

ROD, Cutting Deck Timing
(Superseded to 7035495YP)

$22.99

$

Usually ships in 2-12 days

0

68

Snapper 7024586

SWIVEL, Brake Link PM
(Superseded to 7024586YP)

$4.99

$

Usually ships in 2-12 days

0

69

Snapper 7021815

SPACER, 25/64"

$7.99

$

Usually ships in 2-12 days

0

70

Snapper 7090122

WASHER, 3/8"
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

71

Snapper 7091310

PIN, Hair
(Superseded to 703430)

Note: Was 16231

$3.49

$

In Stock, only 2 left!

0

72

Snapper 7014852

DECAL, Caution
(Superseded to 7101665YP)

$14.99

$

In Stock, Qty 5

0

73

Snapper 7014852

DECAL, Caution
(Superseded to 7101665YP)

Note: Was 16973

$14.99

$

In Stock, Qty 5

0

74

Snapper 7022991

DECAL, Hi-Vac
(Superseded to 7022991YP)

$

$

Not available

75

Snapper 7046720

DECAL, Chute/Deflector
(Superseded to 7046720SM)

$7.49

$

Usually ships in 2-12 days

0
