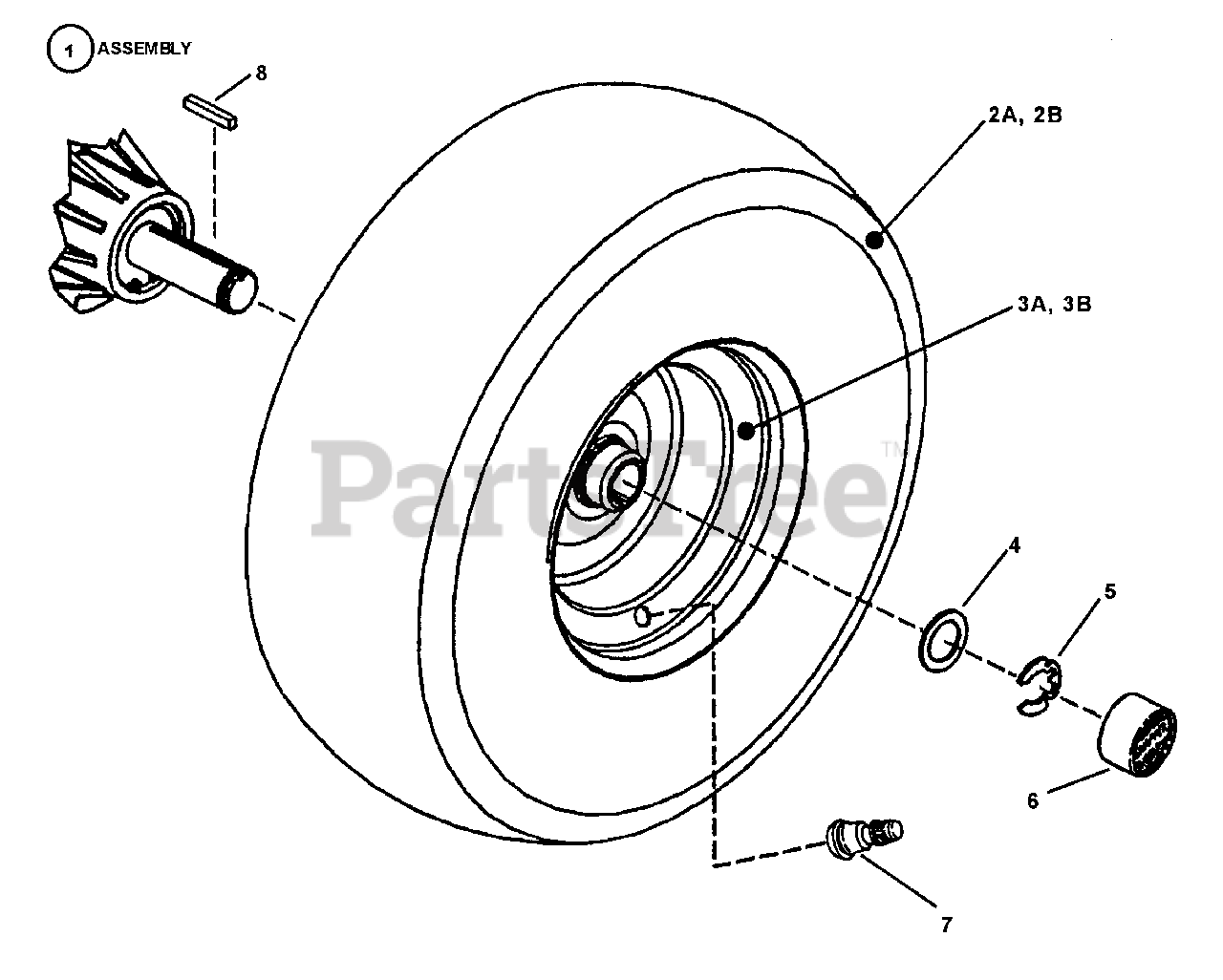

YZ 13381 BE (82532) - Snapper Yard Cruiser 38" Zero-Turn Mower, 13hp Wheels - Rear Parts Diagram

Yard Cruiser 38" Zero-Turn Mower, 13hp

Wheels - Rear Parts Diagram

  • Title
1

Snapper 7058947

ASSEMBLY, Rear Tire & Rim
(Superseded to 7058947YP)

Note: Was 57681 (Includes 2A, 3A, & 7)(33" Models)

$196.99

$

Usually ships in 2-12 days

0

Snapper 7057682

ASSEMBLY, Rear Tire & Rim

Note: (Includes Items 2B, 3B, & 7) (38" Models)

$

$

Not available

2A

Snapper 7046321

TIRE, 18 x 7.00-8, Multi-Trac
(Superseded to 7046321YP)

Note: (33" Models)

$230.99

$

Usually ships in 2-12 days

0

2B

Snapper 7046322

TIRE, 18 x 8.50-8, Multi-Trac
(Superseded to 7072705YP)

Note: (38" Models)

$125.99

$

Usually ships in 2-12 days

0

3A

Snapper 7035427

RIM, 18 x 6.50
(Superseded to 7035427YP)

Note: (33" Models)

$112.99

$

Usually ships in 2-12 days

0

3B

Snapper 7035562

RIM, 18 x 8.50

Note: (38" Models)

$

$

Not available

4

Snapper 7016561

BUSHING, Machine
(Superseded to 7016561YP)

$5.49

$

In Stock, Qty 7

0

5

Snapper 7091764

RING, Retaining, External 1"

$4.49

$

Usually ships in 2-12 days

0

6

Snapper 7011022

CAP, Hub
(Superseded to 7011022YP)

$4.49

$

In Stock, Qty 20+

0

7

Snapper 7012234

STEM, Valve
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

8

Snapper 7042940

KEY, Square M6 x 38mm
(Superseded to 7042940YP)

$6.49

$

Usually ships in 2-12 days

0
