YZ 13331 BE (82531) - Snapper Yard Cruiser 33" Zero-Turn Mower, 13hp 33" Spindle Assembly Parts Diagram

Yard Cruiser 33" Zero-Turn Mower, 13hp

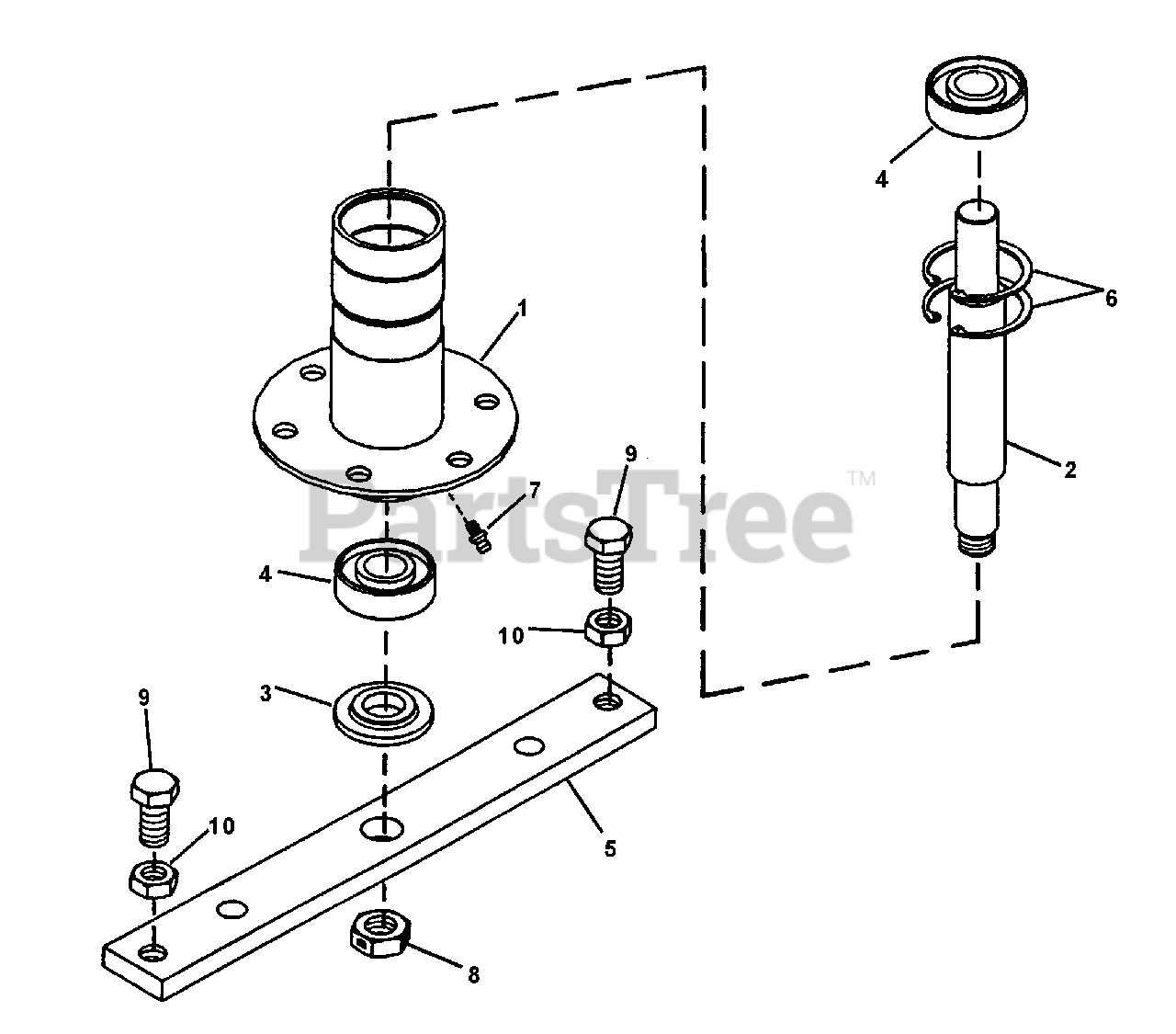

33" Spindle Assembly Parts Diagram

  • Title
1

Snapper 7047962

HOUSING, Spindle
(Superseded to 7052294YP)

$179.99

$

In Stock, only 2 left!

0

2

Snapper 7024687

SPINDLE, Shaft (7.54" Long)
(Superseded to 7024687YP)

$35.99

$

Usually ships in 2-12 days

0

3

Snapper 7014407

WASHER
(Superseded to 7014407SM)

$7.49

$

In Stock, Qty 18

0

4

Snapper 7013313

BEARING, Spindle
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

5

Snapper 7037751

HOLDER, Blade
(Superseded to 7037751BMYP)

$45.99

$

Usually ships in 2-12 days

0

6

Snapper 7012491

RING, 1-3/4" External Retaining
(Superseded to 7012491SM)

$4.49

$

In Stock, Qty 20+

0

7

Snapper 7010817

FITTING, Lube (Press fit for .187 hole-no ball)
(Superseded to 7010817SM)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7090356

NUT, 5/8-18 Hex Center Lock Jam
(Superseded to 7090356YP)

$5.49

$

In Stock, Qty 20+

0

9

Snapper 7090392

SCREW, 1/2-20 x 1" Hex Head Cap
(Superseded to 703880)

$4.49

$

In Stock, Qty 20+

0

10

Snapper 7090559

NUT, 1/2-20 Hex Jam
(Superseded to 703903)

$3.49

$

In Stock, Qty 20+

0
