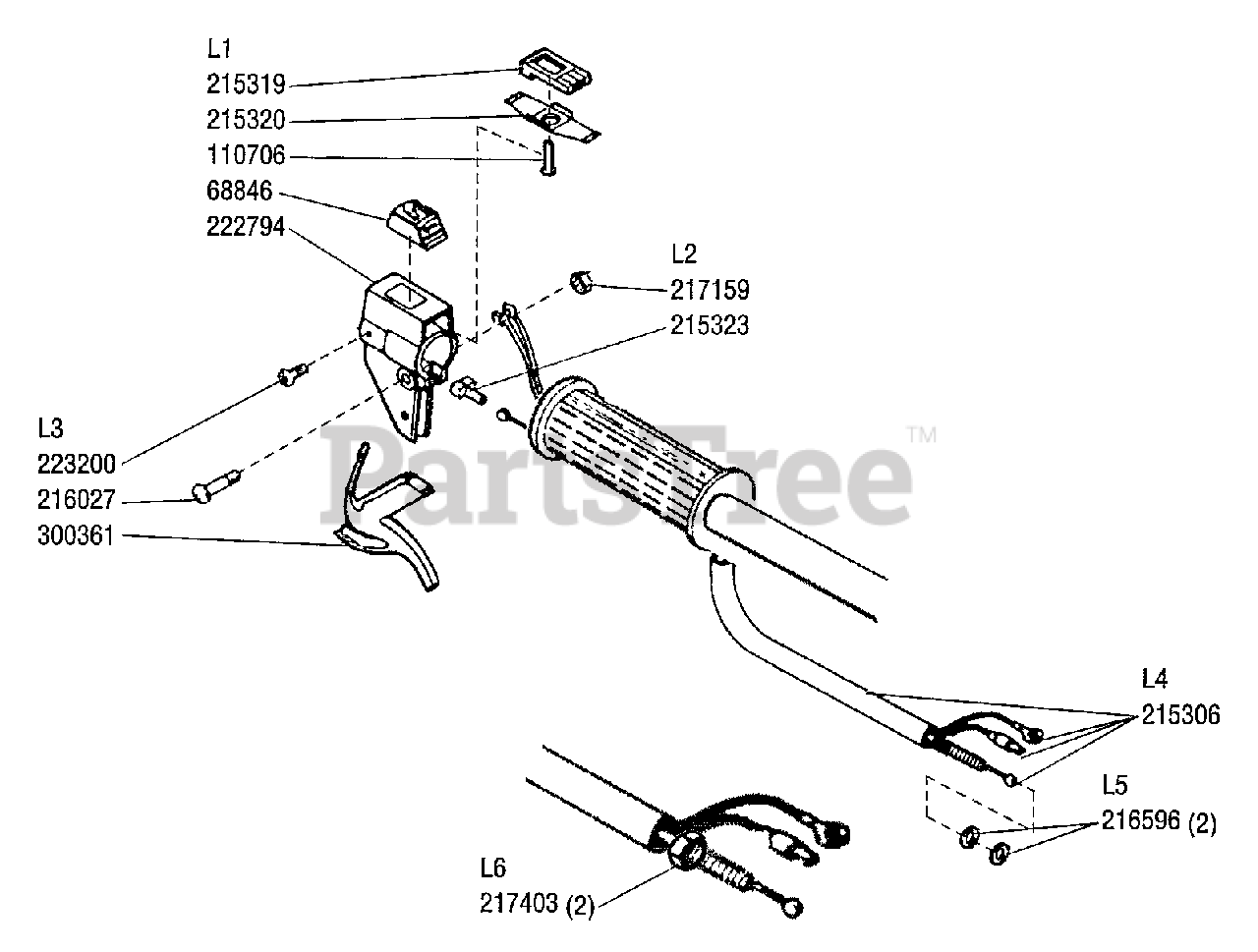

YW 210 - Shindaiwa Yardware String Trimmer Throttle Lever, Switch Parts Diagram

Yardware String Trimmer

Throttle Lever, Switch Parts Diagram

  • Title

L1-215319

Echo 215319

SWITCH, ON OFF
(Superseded to 16340022060)

$2.49

$

Usually ships in 2-4 days

0

L1-215320

Echo 215320

PLATE, CONTACT
(Superseded to 16341322060)

$

$

Not available

L1-110706

Echo 110706

SCREW
(Superseded to 90005400300)

$

$

Not available

L1-68846

Echo 68846

KNOB, SWITCH
(Superseded to 16341022060)

$

$

Not available

L1-222794

Echo 222794

THROTTLE TRIGGER HOUSING
(Superseded to Discontinued)

$

$

Not available

L2-217159

Echo 217159

NUT,5
(Superseded to 20013922060)

$

$

Not available

L2-215323

Echo 215323

GUIDE,CABLE
(Superseded to 17811222060)

$

$

Not available

L3-223200

Echo 223200

SCREW STH.
(Superseded to 90005500100)

$

$

Not available

L3-216027

Echo 216027

SCREW,5
(Superseded to 88995022060)

$1.49

$

Usually ships in 2-4 days

0

L3-300361

Echo 300361

TRIGGER,THROTTLE
(Superseded to 17801022160)

$

$

Not available

L4-215306

Echo 215306

CABLE,ASM CONTROL
(Superseded to 17810022160)

$20.99

$

Usually ships in 2-4 days

0

L5-216596

Echo 216596

WASHER,CIRCULAR 6
(Superseded to 17802022060)

$

$

Not available

L6-217403

Echo 217403

NUT,6
(Superseded to 43723522060)

$

$

Not available
