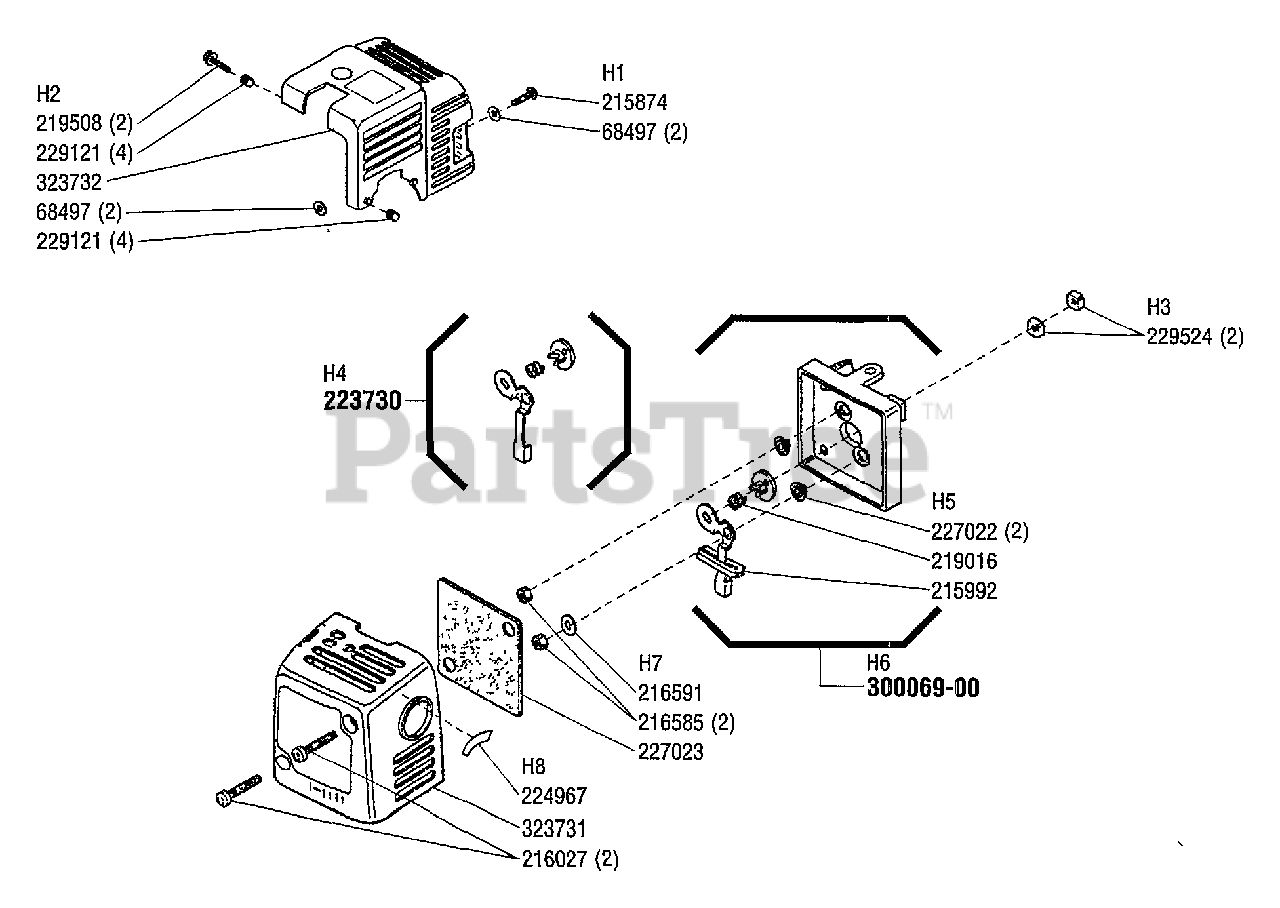

YW 210 - Shindaiwa Yardware String Trimmer Air Filter, Cover Parts Diagram

Yardware String Trimmer

Air Filter, Cover Parts Diagram

  • Title

H1-215874

Echo 215874

SCREW, PAN M4X9.5 TORX
(Superseded to Discontinued)

$

$

Not available

H1-68497

Echo 68497

WASHER
(Superseded to Discontinued)

$

$

Not available

H2-219508

Echo 219508

SCREW, PN M4 X 17 SEMS TORX
(Superseded to Discontinued)

$

$

Not available

H2-229121

Echo 229121

BUSHING
(Superseded to Discontinued)

$

$

Not available

H2-323732

Echo 323732

SHIELD, MUFFLER
(Superseded to Discontinued)

$

$

Not available

H2-68497

Echo 68497

WASHER
(Superseded to Discontinued)

$

$

Not available

H2-229121

Echo 229121

BUSHING
(Superseded to Discontinued)

$

$

Not available

H3-229524

Echo 229524

NUT
(Superseded to Discontinued)

$

$

Not available

H4-223730

Echo 223730

KIT, CHOKE ASY
(Superseded to Discontinued)

$

$

Not available

H5-227022

Echo 227022

BUSHING
(Superseded to Discontinued)

$

$

Not available

H5-219016

Echo 219016

SPRING, SHUTTER
(Superseded to Discontinued)

$

$

Not available

H5-215992

Echo 215992

GROMMET, CHOKE
(Superseded to Discontinued)

$

$

Not available

H7-216591

Echo 216591

WASHER, FLAT M5
(Superseded to Discontinued)

$

$

Not available

H7-216585

Echo 216585

NUT LOCK M5
(Superseded to Discontinued)

$

$

Not available

H7-227023

Echo 227023

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

H8-224967

Echo 224967

LABEL, PRIMER
(Superseded to Discontinued)

$

$

Not available

H8-323731

Echo 323731

COVER, AIR CLEANER
(Superseded to Discontinued)

$

$

Not available

H8-216027

Echo 216027

SCREW,5
(Superseded to 88995022060)

$1.49

$

Usually ships in 2-4 days
