YTKH 1848 XP (954568489-A) - Husqvarna 48" Yard Tractor (2003-11) Chassis And Enclosures Parts Diagram

48" Yard Tractor

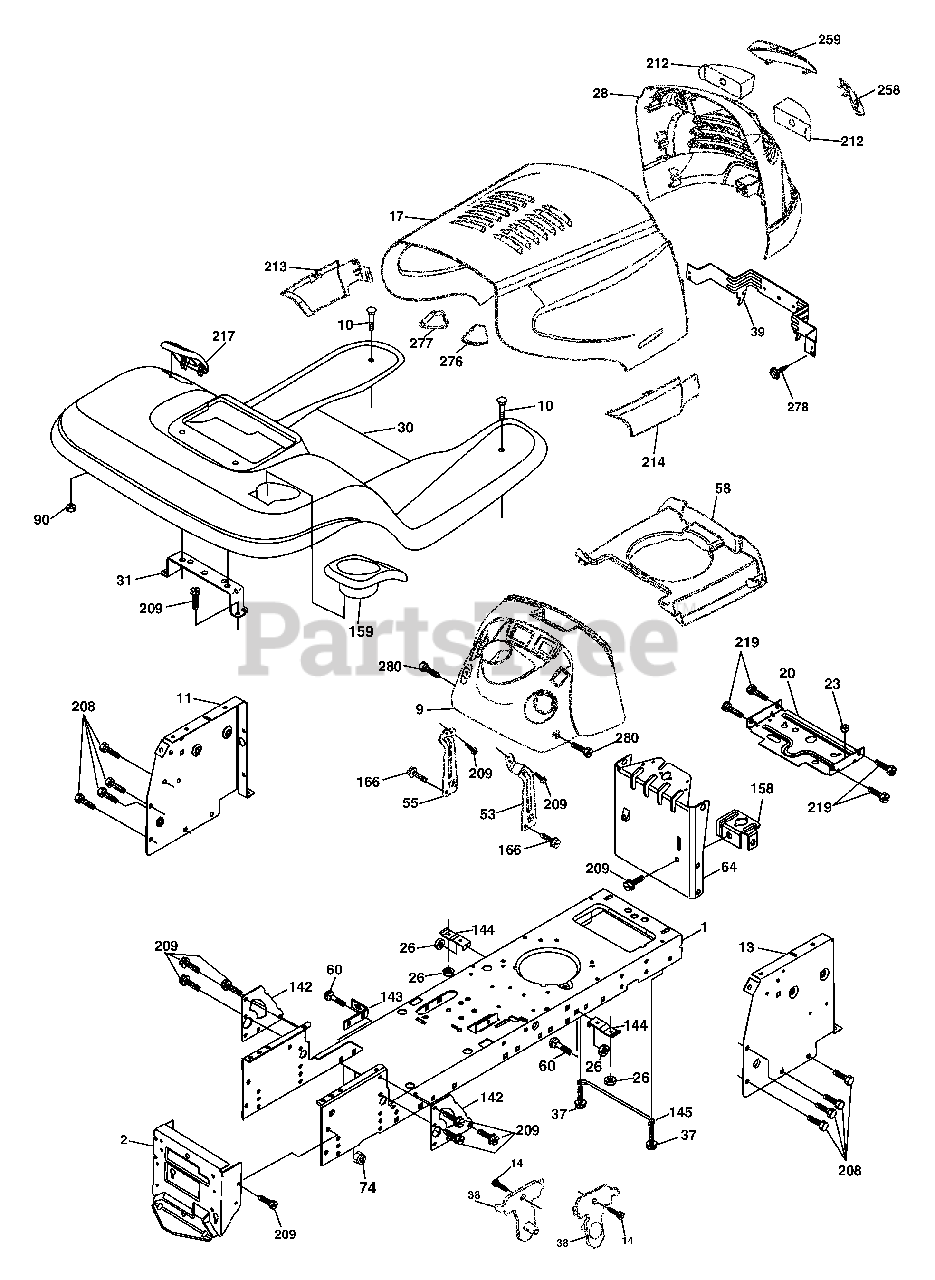

Chassis And Enclosures Parts Diagram

  • Title
1

Husqvarna 532174619

Chassis Stamping
(Superseded to 579841401)

$433.99

$

Usually ships in 3-10 days

0

$43.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532190251

Dashboard
(Superseded to 532193641)

$

$

Not available

10

Husqvarna 872140608

Bolt Rdhd Sqnk 3/8-16 unc x 1
(Superseded to 872110608)

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532174996

Panel Dash Lh

$

$

Not available

13

Husqvarna 532172106

Panel Dash Rh

$18.99

$

Usually ships in 3-10 days

0

14

Husqvarna 817490608

Screw Thdrol 3/8-16 x 1/2

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532189977

Hood
(Superseded to 532188374)

$157.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532180679

Plate Mtg Battery/Fuel Tank

$11.99

$

Usually ships in 3-10 days

0

23

$5.99

$

In Stock, only 3 left!

0

26

Husqvarna 873800600

Nut Lock w/Insert 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532188269

Grille Lens Asm

Note: (Includes Key Nos. 212, 258 & 259)

$157.99

$

In Stock, only 1 left!

0

30

Husqvarna 532185432

Fender
(Superseded to 532192814)

$

$

Not available

31

$17.99

$

Usually ships in 3-10 days

0

37

Husqvarna 817490508

Screw Thdrol 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532175710

Bracket Asm Pivot Mower Rear

$11.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532174714

Bracket Pivot
(Superseded to 532407807)

$31.99

$

Usually ships in 3-10 days

0

53

Husqvarna 532188372

Bracket Dash Husq. Elite RH

$

$

Not available

55

Husqvarna 532188373

Bracket Dash Husq. Elite LH

$6.99

$

Usually ships in 3-10 days

0

58

$

$

Not available

60

Husqvarna 872140606

Bolt RDHD SQNK 3/8-16 x 3/4

$

$

Not available

64

Husqvarna 532174997

Dash Lower STYT

$30.99

$

Usually ships in 3-10 days

0

74

Husqvarna 873680600

Nut Crownlock 3/8-16

$3.99

$

Usually ships in 3-10 days

0

90

$7.99

$

In Stock, only 1 left!

0

142

Husqvarna 532175702

Plate Reinforcement

$9.49

$

Usually ships in 3-10 days

0

143

Husqvarna 532186689

Bracket Swaybar Chassis

$6.99

$

In Stock, only 2 left!

0

144

Husqvarna 532175582

Bracket Ft Rest

$7.49

$

Usually ships in 3-10 days

0

145

Husqvarna 532156524

Rod Pivot Chassis Hood
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

158

Husqvarna 532162037

Bracket Parking Brake

$

$

Not available

159

Husqvarna 532185434

Cupholder
(Superseded to 532191120)

$10.99

$

Usually ships in 3-10 days

0

166

Husqvarna 532171875

Screw Hw Hd Hi-Lo #13-16 x 3/4
(Superseded to 532189747)

$17.99

$

Usually ships in 3-10 days

0

208

Husqvarna 817670608

Screw Thdrol 3/8-16 x 1/2 Ty-TT

$6.49

$

Usually ships in 3-10 days

0

209

Husqvarna 817000612

Screw 3/8-16 x 3/4

$4.99

$

In Stock, only 2 left!

0

212

Husqvarna 532188267

Lens Insert Reflect

$10.99

$

Usually ships in 3-10 days

0

213

Husqvarna 532189979

Skirt Side Elite Husq. LH
(Superseded to 532188266)

$7.99

$

Usually ships in 3-10 days

0

214

Husqvarna 532189978

Skirt Side Elite Husq. RH
(Superseded to 532188265)

$7.99

$

Usually ships in 3-10 days

0

217

Husqvarna 532185436

Console Fuel Window
(Superseded to 532179132)

$9.49

$

Usually ships in 3-10 days

0

219

Husqvarna 817000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 14

0

258

Husqvarna 532189981

Lens Husq. Elite Clear RH
(Superseded to 532188263)

$18.99

$

Usually ships in 3-10 days

0

259

Husqvarna 532189982

Lens Husq. Elite Clear LH
(Superseded to 532188264)

$18.99

$

In Stock, only 1 left!

0

276

Husqvarna 532189274

Bumper Hood RH

$7.99

$

Usually ships in 3-10 days

0

277

Husqvarna 532189275

Bumper Hood LH

$

$

Not available

278

Husqvarna 532189585

Screw Quadx. Wshd #10-14 x 1
(Superseded to 532191611)

$

$

Not available

280

Husqvarna 817060616

Screw 3/8-16 x 1.0
(Superseded to 817000616)

$7.49

$

In Stock, only 3 left!

0
