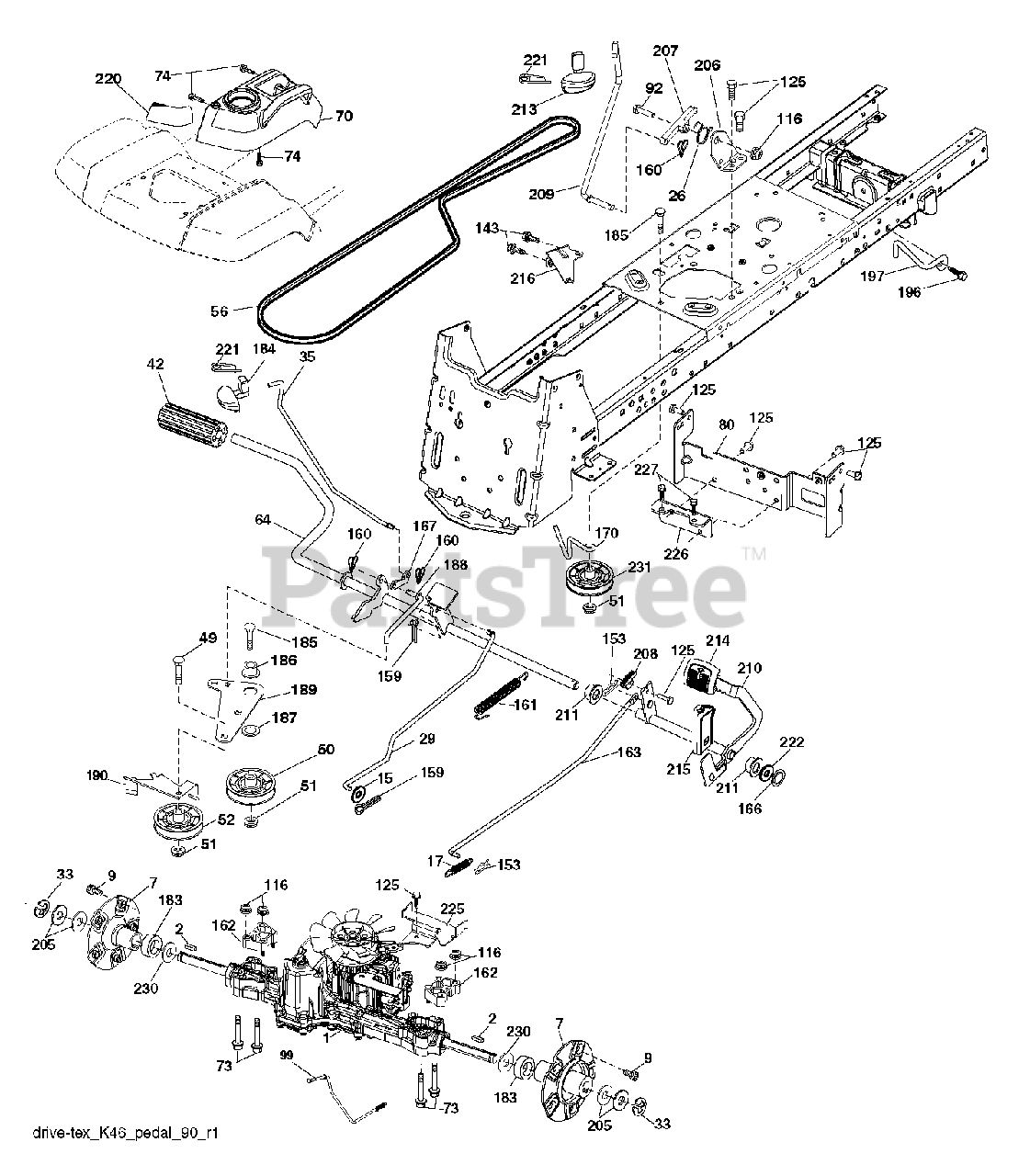

YTH 2754 (960410221-01) - Husqvarna 54" Yard Tractor (2012-12) DRIVE Parts Diagram

54" Yard Tractor

DRIVE Parts Diagram

  • Title

1

000000000

Note: TRANSAXLE TUFFTORQ K46 BN

$

$

Not available

2

Husqvarna 532186211

KEY.SQUARE.187X2.500

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532199844

HUB.ASM.WHEEL.REAR.22"

$56.99

$

In Stock, only 1 left!

0

9

Husqvarna 532140080

HUB BOLT

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 532413678

SPRING.BRAKE.K46.GREEN

$7.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532199679

SPRING.RETURN.CRUISE

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532403806

ROD.BRAKE.K46

$31.99

$

Usually ships in 3-10 days

0

33

Husqvarna 812000001

E-RING LT

$4.99

$

Usually ships in 3-10 days

0

35

Husqvarna 583864501

ROD .BRAKE. PARKING. GT. HUSQ.

$7.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

In Stock, Qty 14

0

49

Husqvarna 872110614

BOLT

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532194327

IDLER.FLAT.910.OFFSET

$20.99

$

In Stock, Qty 11

0

51

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Husqvarna 532194326

IDLER.V-GROOVE.910.OFFSET

$22.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532130969

V-BELT.MOWER.92.40.42/K46

$31.99

$

In Stock, Qty 20+

0

64

Husqvarna 532197865

SHAFT.ASM.PEDAL.BRK.CNTR

$53.99

$

In Stock, only 1 left!

0

70

Husqvarna 532439661

CONSOLE.ASM.RH.GT.FC.HUSQ

$91.99

$

In Stock, only 1 left!

0

73

Husqvarna 874490560

BOLT.HEX.FLNG.5/16-18X3.75
(Superseded to 583613301)

$6.49

$

Usually ships in 3-10 days

0

74

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

80

Husqvarna 532440619

STRAP.TORQUE.K46.K57R.TT

$24.99

$

Usually ships in 3-10 days

0

92

Husqvarna 874760520

BOLT
(Superseded to 874780520)

$4.99

$

Usually ships in 3-10 days

0

99

Husqvarna 532415743

ROD.SPRING.BYPASS.K46.TEX.GT

$10.99

$

In Stock, only 1 left!

0

116

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

125

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

143

Husqvarna 817490508

SCREW LT
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

153

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

159

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

160

Husqvarna 532169484

RETAINER CLIP

$

$

Not available

161

Husqvarna 532105709

SPRING, RETURN LT

$11.99

$

In Stock, only 3 left!

0

162

Husqvarna 580457401

SPACER.TRANSAXLE.1"

$24.99

$

In Stock, only 2 left!

0

163

Husqvarna 532448275

ROD.CONTROL.K57R.K46
(Superseded to 532401034)

$

$

Not available

166

Husqvarna 532429164

NUT.PUSH.625

$6.49

$

In Stock, only 2 left!

0

167

Husqvarna 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

170

Husqvarna 532413430

KEEPER.CENTER SPAN.1.688

$7.49

$

In Stock, only 1 left!

0

183

Husqvarna 532400424

SPACER.SPLIT.800X.350

$8.99

$

Usually ships in 3-10 days

0

184

Husqvarna 532441455

RB HANDLE.PARKG.BRK.HUS/PRED
(Superseded to 532403118)

$12.99

$

In Stock, Qty 20+

0

185

Husqvarna 872110622

BOLT

$4.99

$

In Stock, Qty 10

0

186

Husqvarna 532194321

SPACER.RETAINER

$9.49

$

In Stock, Qty 11

0

187

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available

188

Husqvarna 532194323

RP LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$5.99

$

In Stock, Qty 10

0

189

Husqvarna 532194317

BELLCRANK.GROUND.DRIVE.TEX.

$

$

Not available

190

Husqvarna 532194318

KEEPER.BELLCRANK.DRIVE

$8.99

$

In Stock, only 1 left!

0

196

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

197

Husqvarna 532199769

BRKT.ANIT-ROTATION.CLUTCH

$8.99

$

In Stock, only 4 left!

0

205

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

206

Husqvarna 532448596

BRACKET.MOUNT.CRUISE.LATCH

$5.99

$

Usually ships in 3-10 days

0

207

Husqvarna 532197868

LATCH.CONTROL.CRUISE
(Superseded to 587031401)

$

$

Not available

208

Husqvarna 532197869

GEAR.SECTOR.CONTROL.CR

$6.49

$

Usually ships in 3-10 days

0

209

Husqvarna 532199592

ROD.CONTROL.CRUISE.GT.

$10.99

$

Usually ships in 3-10 days

0

210

Husqvarna 532197860

ROCKER.ASM.PEDAL.CONTR

$51.99

$

Usually ships in 3-10 days

0

211

Husqvarna 532120183

BEARING.NYLON

$6.99

$

In Stock, only 4 left!

0

213

Husqvarna 532403119

KNOB.CONTROL.CRUSIE.HU

$12.99

$

In Stock, only 1 left!

0

214

Husqvarna 532421263

PEDAL.FORWARD.PAD.TEX

$8.99

$

In Stock, only 1 left!

0

215

Husqvarna 532401723

PEDAL.REVERSE.TEX.GT.4

$14.99

$

Usually ships in 3-10 days

0

216

Husqvarna 532196131

BRACKET.PULLEY.IDLER.W/TEX

$7.99

$

In Stock, only 1 left!

0

220

Husqvarna 532198908

REFLECTOR.RH.TEX GT

$17.99

$

In Stock, only 1 left!

0

221

Husqvarna 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, only 3 left!

0

222

Husqvarna 879212010

WASHER 21/32 X 1-1/4 X 10 GA.

$6.49

$

In Stock, only 1 left!

0

225

Husqvarna 532403319

KEEPER.BELT.TRANSAXLE.K46

$6.99

$

Usually ships in 3-10 days

0

226

Husqvarna 532400831

BRKT.MOUNT.TORQUE.K46.

$18.99

$

Usually ships in 3-10 days

0

227

Husqvarna 817490512

SCREW
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

230

Husqvarna 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

231

Husqvarna 532407287

IDLER.V-GROOVE.1.688.OFFSET

$22.99

$

In Stock, only 2 left!

0
