YTH 2754 (960410062-03) - Husqvarna 54" Yard Tractor (2010-04) ENGINE Parts Diagram

54" Yard Tractor

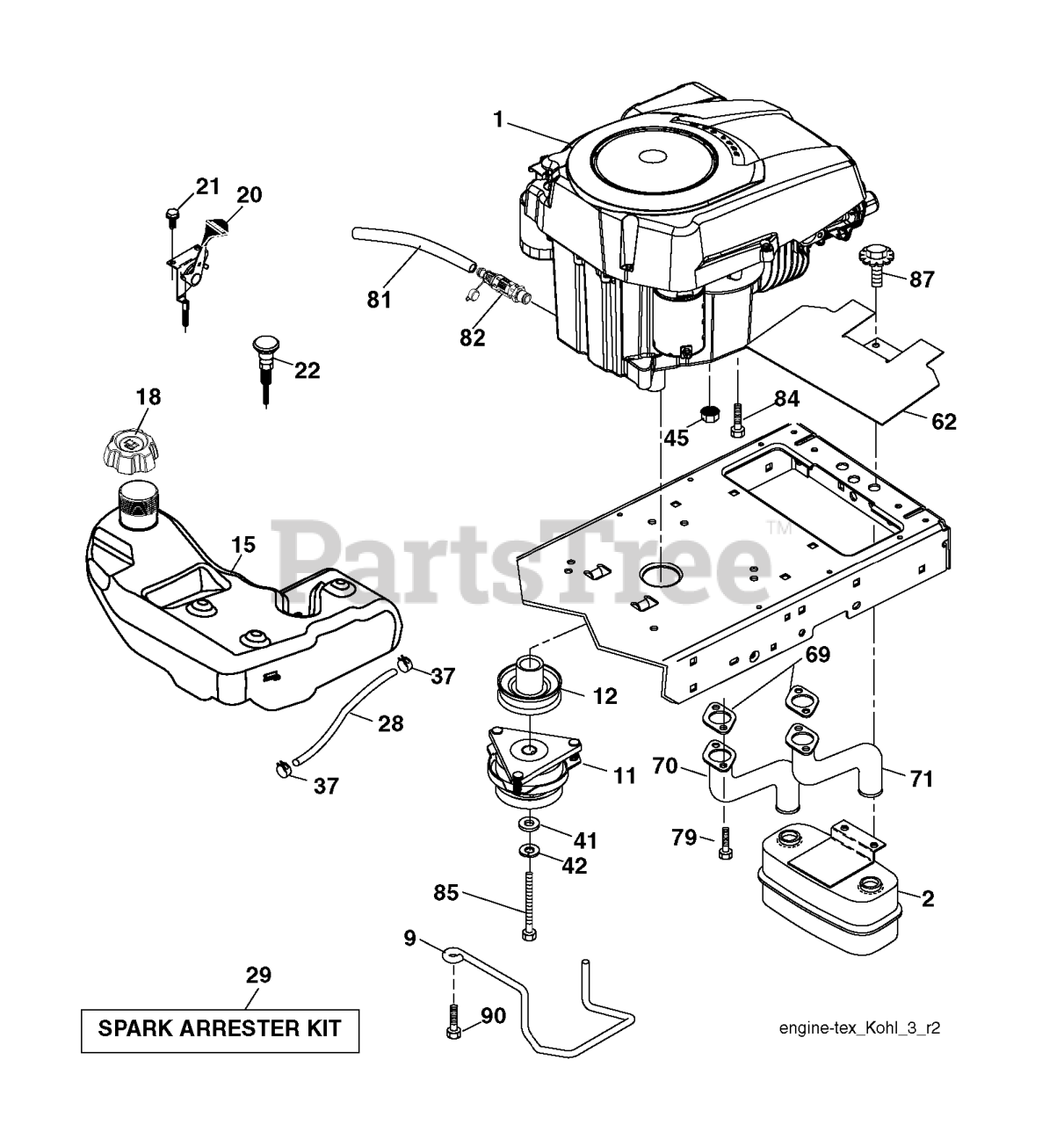

ENGINE Parts Diagram

  • Title
42

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

11

Husqvarna 532179335

CLUTCH MZ ZTR GT.48/54"1.125"

$341.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532146699

RP.PIPE-EXHAUST LH
(Superseded to 583954501)

$22.99

$

In Stock, only 1 left!

0

22

Husqvarna 532191596

CONTROL.CHOKE.ERGO.PUSH-IN.BLA

$40.99

$

Usually ships in 3-10 days

0

1

000000000

Note: Engine KOHL Model No. SV740-0019

$

$

Not available

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 3 left!

0

69

000000000

Note: Gasket (Order From Engine Man.)

$

$

Not available

28

Husqvarna 532142158

REPL BY 532 00 85-43
(Superseded to 587044854)

$17.99

$

In Stock, only 2 left!

0

85

Husqvarna 532179953

BOLT HEX 7/16-20 X 3.75 GR. 5
(Superseded to 501606601)

$4.99

$

In Stock, only 1 left!

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

2

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532146700

RP.PIPE-EXHAUST RH
(Superseded to 583954801)

$20.99

$

In Stock, only 1 left!

0

12

Husqvarna 532194343

PULLEY ENGINE

$74.99

$

Usually ships in 3-10 days

0

84

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 17

0

20

Husqvarna 532182937

THROTTLE CONTROL
(Superseded to 532177328)

$47.99

$

In Stock, only 3 left!

0

$8.99

$

In Stock, only 3 left!

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, only 4 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

87

Husqvarna 532198239

BOLT.5/16-18UNCX1.W/SEMS.BLK

$7.49

$

In Stock, only 4 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

15

Husqvarna 532193499

TANK.FUEL.4GAL

$145.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532430217

RP CAP FUEL
(Superseded to 584248702)

$17.99

$

In Stock, only 1 left!

0

79

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 13

0

9

Husqvarna 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 584908001)

$

$

Not available
