YTH 2548 XP (960410004-00) - Husqvarna 48" Yard Tractor (2006-01) MOWER DECK / CUTTING DECK Parts Diagram

48" Yard Tractor

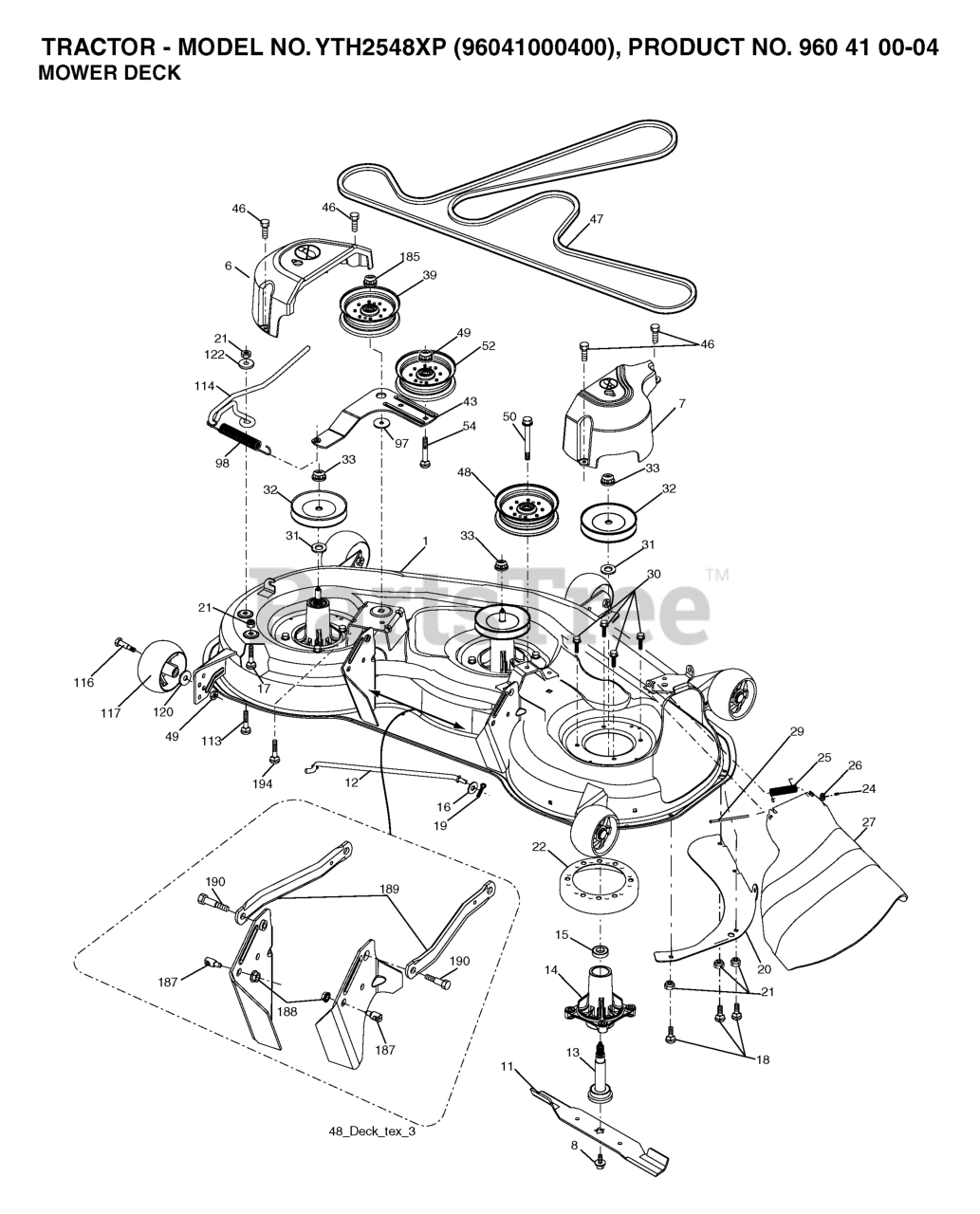

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

52

Husqvarna 532196106

PULLEY.IDLER.2006

$39.99

$

In Stock, Qty 20+

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

54

Husqvarna 817490636

SCREW TT 3/8-16X2-1/4 UNC
(Superseded to 596564004)

$2.49

$

In Stock, Qty 6

0

188

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

7

Husqvarna 532199102

COVER.MANDREL.RH.48"
(Superseded to 587452401)

$20.99

$

In Stock, only 3 left!

0

47

Husqvarna 532197242

BELT.DRIVE.DECK
(Superseded to 593773401)

$62.99

$

In Stock, Qty 9

0

187

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

114

Husqvarna 532197451

ROD.TENSION.RELIEF.TEX (2 2)

$18.99

$

In Stock, only 1 left!

0

1

Husqvarna 532403582

DECK.PNT.WELDMENT.48"T
(Superseded to 532439818)

$683.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532400337

ROD.ANTI.SWAY.48/54"TE

$

$

Not available

189

Husqvarna 532195185

ARM.SUSPENSION.MOWER
(Superseded to 531169201)

$14.99

$

In Stock, Qty 5

0

30

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

11

Husqvarna 532180054

48" HI-LIFT BLADE

$22.99

$

In Stock, Qty 20+

0

48

Husqvarna 532177968

PULLEY.IDLER.FLAT

$31.99

$

In Stock, Qty 5

0

20

Husqvarna 532174378

BAFFLE, VORTEX MWR

$14.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

120

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 532197248

COVER.MANDREL.LH.48"(2 2)

$34.99

$

In Stock, only 2 left!

0

25

Husqvarna 532178102

SPRING, TORSION
(Superseded to 539107609)

$5.99

$

In Stock, Qty 20+

0

194

Husqvarna 872140716

BOLT.CARR.SQNK.7/16
(Superseded to 874490736)

$13.99

$

In Stock, only 4 left!

0

14

Husqvarna 532187281

RP.HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

113

$4.99

$

Usually ships in 3-10 days

0

98

Husqvarna 532196105

SPRING, DECK DRIVE

$7.99

$

In Stock, Qty 11

0

$6.99

$

Usually ships in 3-10 days

0

49

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

50

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532173435

MANDREL.PULLEY.38.BRIGHT.ZINC

$22.99

$

In Stock, Qty 8

0

15

$13.99

$

In Stock, only 4 left!

0

116

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

8

Husqvarna 532174365

BOLT 7/16 ASM BLADE
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532181707

DEFLECTOR SUBS TO 532 180655
(Superseded to 532180655)

$45.99

$

In Stock, Qty 6

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

190

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

22

Husqvarna 532174493

STRIPPER.MANDREL.ROUND.BLACK

$7.49

$

Usually ships in 3-10 days

0

117

Husqvarna 532174873

RP WHEEL. GUAGE RALLY
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

185

Husqvarna 873900700

NUT.LOCK.FLANGE.7/16

$7.49

$

In Stock, Qty 5

0

- -

Husqvarna 532187292

RP.MANDREL ASM. SERVICE
(Superseded to 587820301)

$56.99

$

In Stock, Qty 15

0

43

$15.99

$

Usually ships in 3-10 days

0

- -

Husqvarna 532401238

DECK.SVC.48".EHD/HP.5GW
(Superseded to 532439644)

$

$

Not available

122

Husqvarna 532187557

BUSHING.RELIEF.TENSION

$9.49

$

In Stock, only 1 left!

0

31

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 8

0

39

Husqvarna 532196104

PULLEY.IDLER.MWR.STATI.LH

$43.99

$

In Stock, Qty 20+

0

13

Husqvarna 532187291

SHAFT ASM MANDREL

$28.99

$

In Stock, Qty 10

0
