YTH 2548 (954571984) - Husqvarna 48" Yard Tractor (2004-06) ENGINE Parts Diagram

48" Yard Tractor

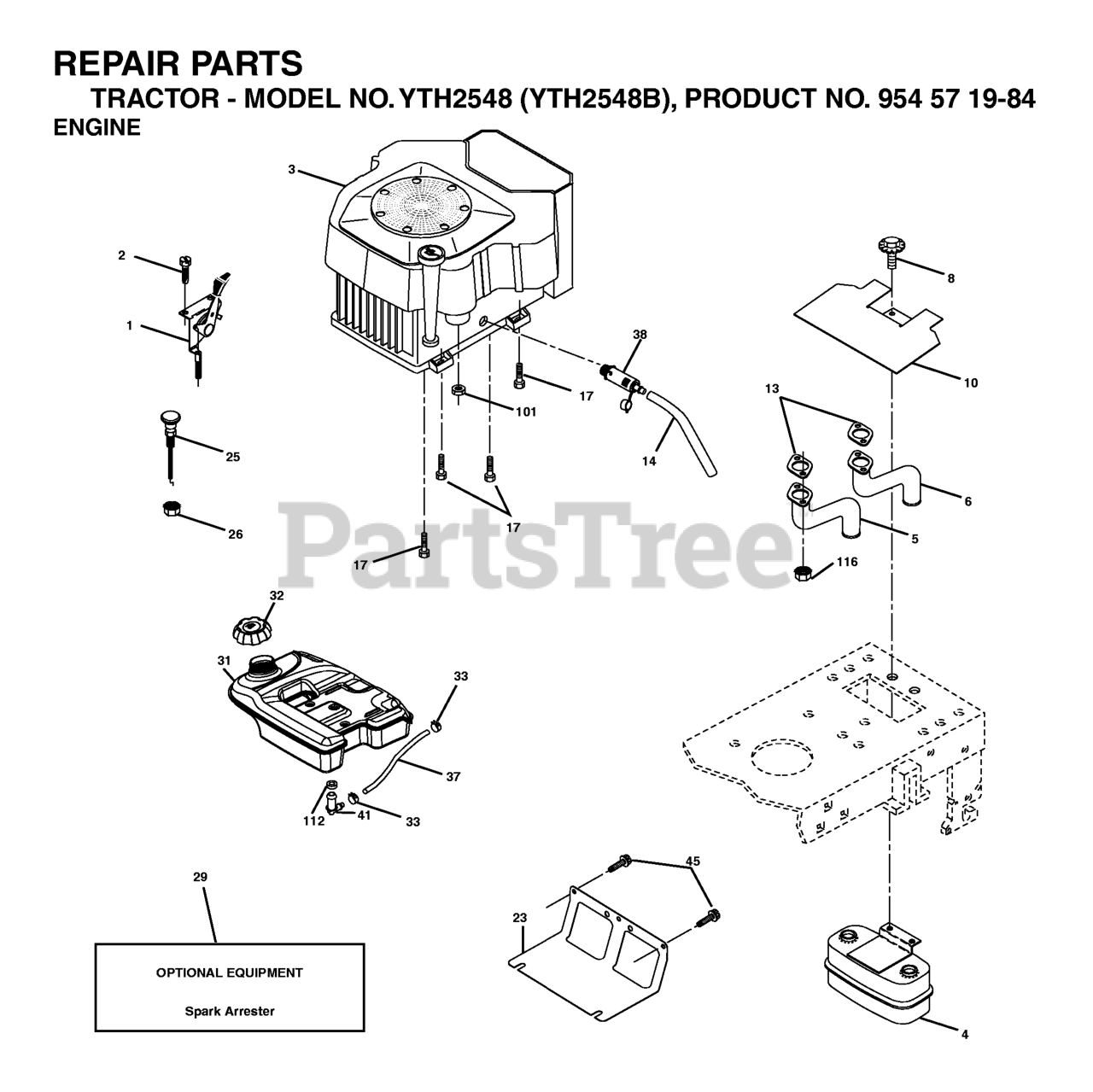

ENGINE Parts Diagram

  • Title
2

Husqvarna 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

116

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$6.49

$

In Stock, only 1 left!

0

14

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 4 left!

0

26

Husqvarna 873920600

Nut Keps 3/8 - 24 UNF

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532179022

4.0 REAR FUEL TANK

$

$

Not available

17

Husqvarna 817060624

SCREW 3/8-16 X 1-1/2

$7.49

$

In Stock, only 1 left!

0

10

Husqvarna 532146629

RP SHIELD HEAT MUFFLER
(Superseded to 532434017)

$15.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532139277

STEM FUEL TANK

$8.99

$

In Stock, Qty 7

0

32

Husqvarna 532181803

TANK CAP
(Superseded to 532179124)

$37.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532146699

RP.PIPE-EXHAUST LH
(Superseded to 583954501)

$22.99

$

In Stock, only 1 left!

0

101

Husqvarna 532163305

FLANGE NUT
(Superseded to 873030800)

$

$

Not available

4

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

23

Husqvarna 532169837

SHIELD.BROWNING.DBR.GUARD

$10.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532142158

REPL BY 532 00 85-43
(Superseded to 587044854)

$17.99

$

In Stock, only 2 left!

0

38

Husqvarna 532181654

PLUG DRAIN OIL EASY
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

33

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

45

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

8

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 5

0

6

Husqvarna 532146700

RP.PIPE-EXHAUST RH
(Superseded to 583954801)

$20.99

$

In Stock, only 1 left!

0

112

Husqvarna 532124952

BUSHING OUTLET T
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0
