YTH 2546 (960410055-00) - Husqvarna 46" Yard Tractor (2007-04) MOWER DECK / CUTTING DECK Parts Diagram

46" Yard Tractor

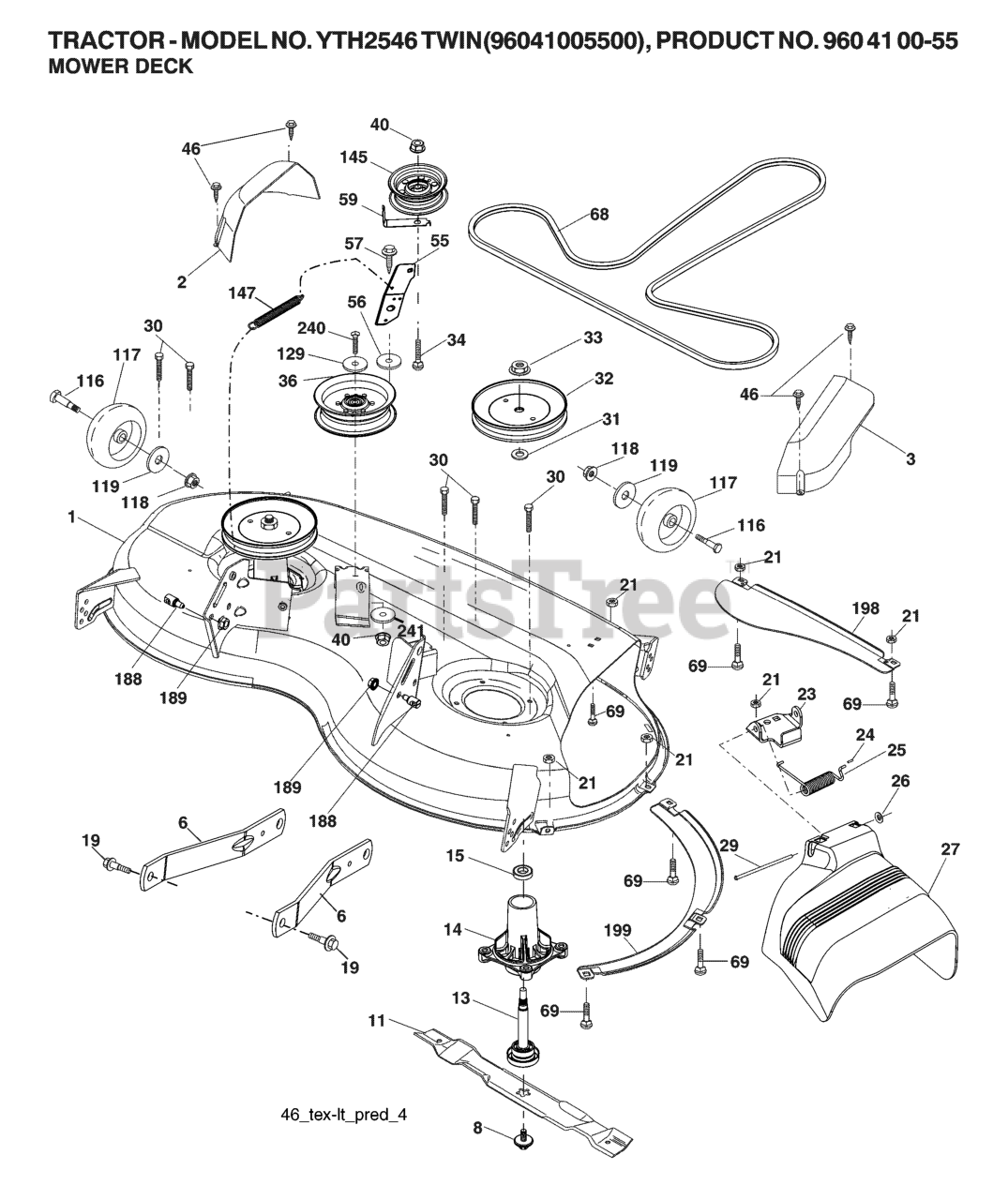

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
145

Husqvarna 532177968

PULLEY.IDLER.FLAT

$31.99

$

In Stock, Qty 9

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

30

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

119

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532196106

PULLEY.IDLER.2006

$39.99

$

In Stock, Qty 16

0

31

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 20+

0

118

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

117

Husqvarna 532174873

RP WHEEL. GUAGE RALLY
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

-

Husqvarna 532192870

MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

56

Husqvarna 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 11

0

27

Husqvarna 532405357

SHIELD.DEFLECTOR.MOWER.46"BLAC

$74.99

$

In Stock, Qty 5

0

199

Husqvarna 532403150

BAFFLE FRONT RH

$

$

Not available

40

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

2

Husqvarna 532405507

COVER.MANDREL.LH.46"

$47.99

$

In Stock, only 2 left!

0

3

Husqvarna 532405506

COVER.MANDREL.RH.46"

$47.99

$

In Stock, only 4 left!

0

188

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

13

Husqvarna 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 532195945

PULLEY.MANDREL.5.438.P

$14.99

$

In Stock, Qty 16

0

-

Husqvarna 532408354

DECK ASM SVC TEX.46".5GWB.GREY
(Superseded to 532409781)

$460.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532192557

BRKT.DEFLECTOR.38"2005+

$9.49

$

In Stock, Qty 8

0

68

Husqvarna 532405143

V-BELT
(Superseded to 584453101)

$56.99

$

In Stock, Qty 20+

0

240

Husqvarna 874520636

BOLT-HEX EAK

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532405380

BLADE.MOWER.46".HI.LIFT

$18.99

$

Usually ships in 3-10 days

0

189

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

69

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 13

0

59

Husqvarna 532141043

GUARD, BELT
(Superseded to 531165901)

$5.99

$

In Stock, only 2 left!

0

1

Husqvarna 532411460

MOWER HOUSING
(Superseded to 591111601)

$512.99

$

Usually ships in 3-10 days

0

129

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

241

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

116

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

198

Husqvarna 532403149

BAFFLE CENTER FRONT

$

$

Not available

25

Husqvarna 532197026

SPRING.TORSION.DEFLECT

$10.99

$

In Stock, Qty 20+

0

15

$13.99

$

In Stock, Qty 11

0

14

Husqvarna 532187281

RP.HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

55

$

$

Not available

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

147

Husqvarna 532197251

SPRING.MOWER.DRIVE.ELECTRIC

$11.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532195186

ARM.SUSPENSION.MOWER.R

$17.99

$

Usually ships in 3-10 days

0

57

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

8

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0
