YTH 24V48 LS (960430116-01) - Husqvarna 48" Yard Tractor (2011-01) ELECTRICAL Parts Diagram

48" Yard Tractor

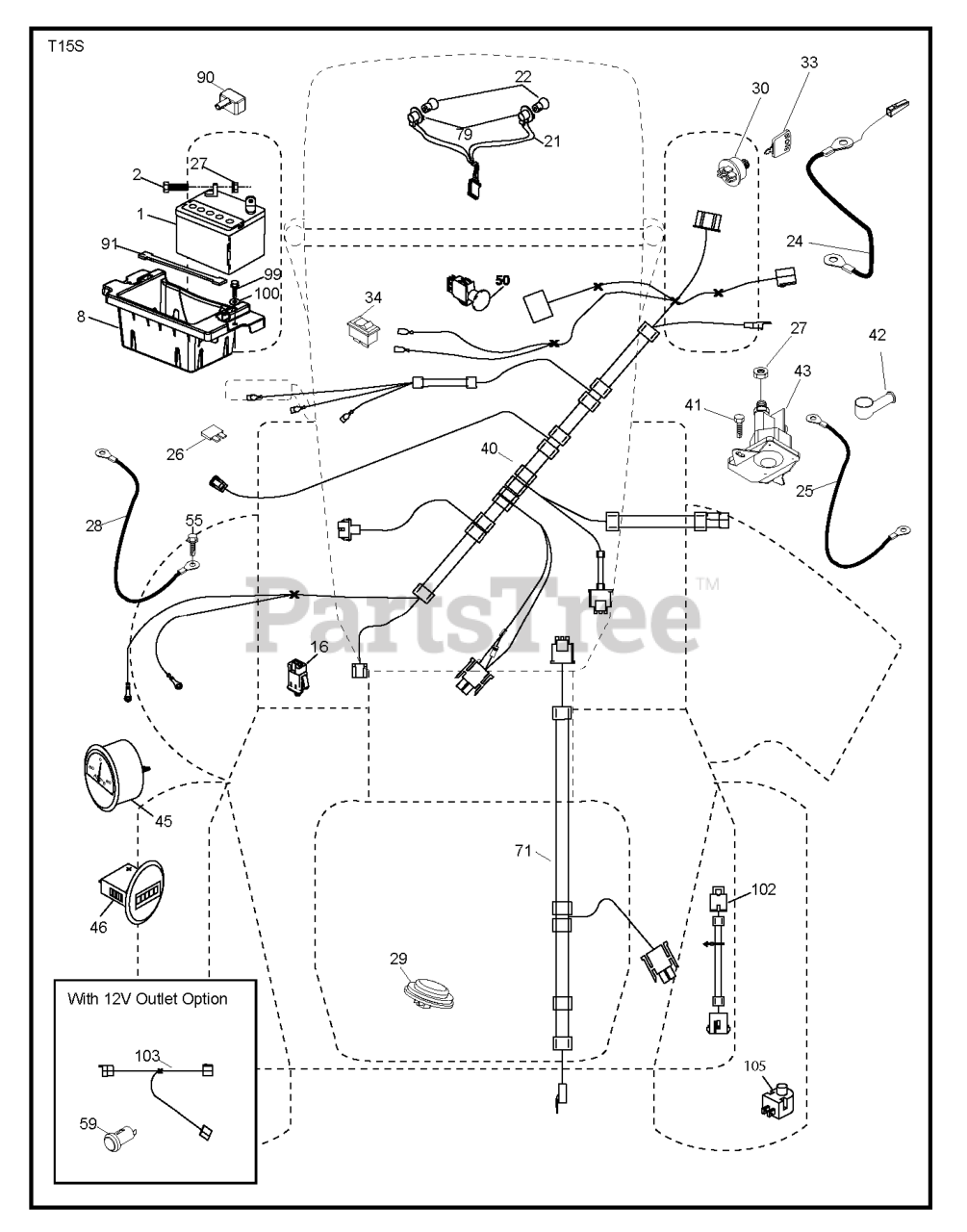

ELECTRICAL Parts Diagram

  • Title
24

Husqvarna 532400253

CABLE.BATT.POS.WIRE.TG.DA SOL
(Superseded to 585555601)

$9.49

$

In Stock, only 2 left!

0

50

Husqvarna 532174651

RP.PTO.SWITCH.8 TERMINAL.BLACK
(Superseded to 582107601)

$28.99

$

In Stock, only 4 left!

0

41

Husqvarna 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532400303

OUTLET.12-VOLT

$27.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532186491

BOX.BATTERY.MOUNT.FRONT.LT

$

$

Not available

103

Husqvarna 532421747

HARNESS.PIGTAIL.12V.OUTLET.

$21.99

$

Usually ships in 3-10 days

0

91

Husqvarna 532190270

STRAP.BATTERY.MOUNT.FRONT(2 2)

$9.99

$

In Stock, Qty 13

0

99

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

Usually ships in 3-10 days

0

22

$4.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532435395

COVER.TERMINAL.BATTERY

$6.49

$

In Stock, only 2 left!

0

33

Husqvarna 532411933

KEY.CHAIN.BLISTER.PACK.GEN.USA
(Superseded to 532411935)

$10.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532145491

CABLE GROUND 6 GA 21" 90T BLK

$10.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532401545

SWITCH.SEAT.DELTA.OPC.

$39.99

$

In Stock, Qty 6

0

40

Husqvarna 532402167

HARNESS IGN. DASH

$133.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532412895

CABLE.STARTER.6G.BL/RED.17.5
(Superseded to 585555501)

$9.49

$

In Stock, only 2 left!

0

105

Husqvarna 532407568

REVERSE SWITCH

$18.99

$

In Stock, only 2 left!

0

71

Husqvarna 532194276

HARNESS-CHASSIS SUB

$40.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532163465

Battery 12 Volt 25 Amp
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

55

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532192507

SOLENOID.W/BRASS.PLUNGER
(Superseded to 582042802)

$26.99

$

In Stock, Qty 19

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, only 1 left!

0

100

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532400252

HARNESS.LIGHT W/4152J BULBS

$34.99

$

Usually ships in 3-10 days

0

79

Husqvarna 532175242

BULB HOLDER ASM.

$18.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532175158

FUSE 20AMP

$7.49

$

In Stock, only 2 left!

0

46

Husqvarna 532425271

HOURMETER.GAUGE.RNK.SNAP.LS
(Superseded to 587554003)

$51.99

$

Usually ships in 3-10 days

0

34

$9.49

$

In Stock, only 4 left!

0

102

Husqvarna 532404454

HARNESS PIGTAIL PCH TEX ROS

$26.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532425270

AMMETER GAUGE ROUND SNAP-IN
(Superseded to 587553903)

$

$

Not available

30

Husqvarna 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$22.99

$

In Stock, only 1 left!

0

27

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

16

Husqvarna 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 7

0

42

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0
