YTH 24V48 LS (960430098-00) - Husqvarna 48" Yard Tractor (2009-12) Engine Parts Diagram

48" Yard Tractor

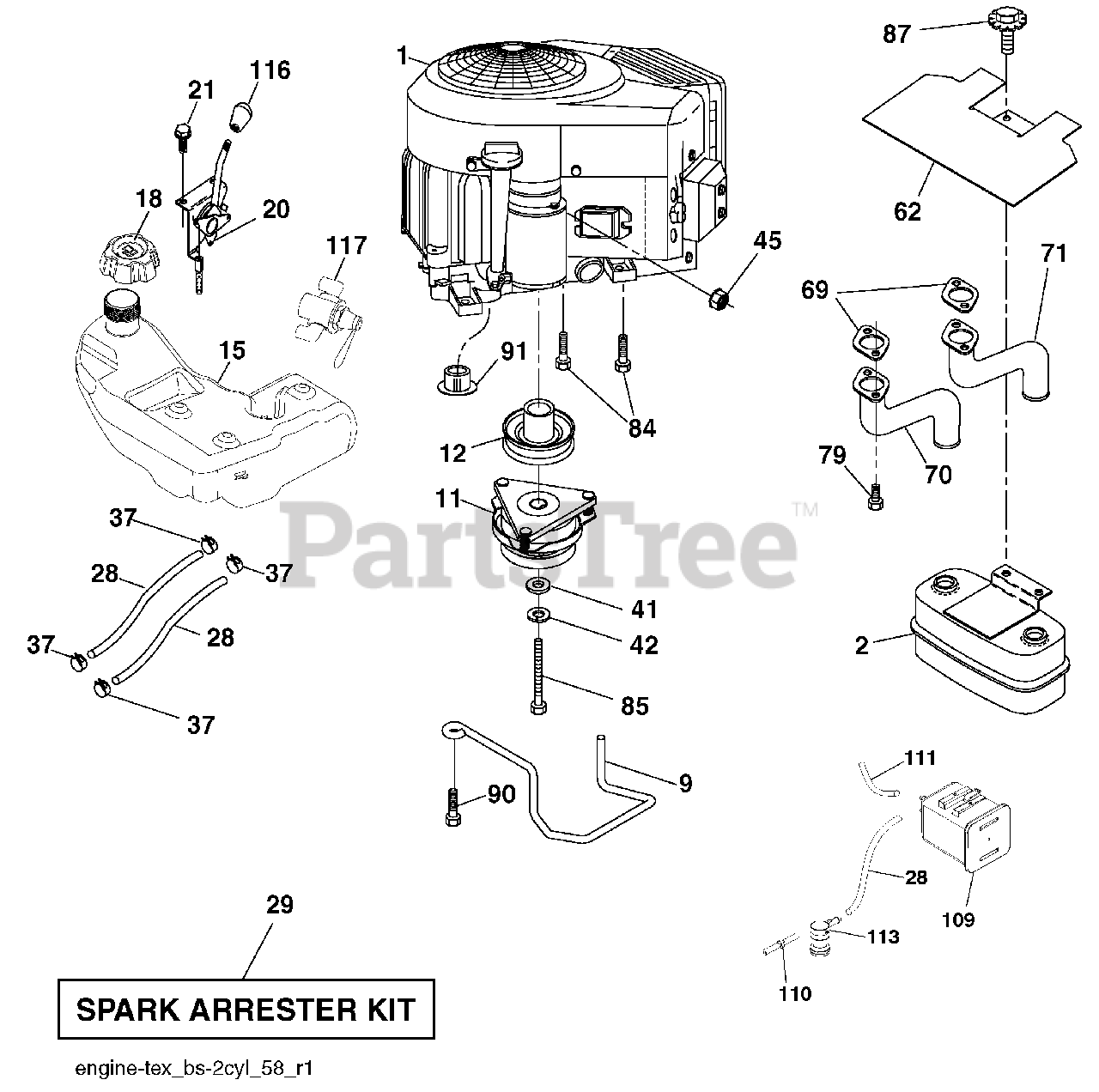

Engine Parts Diagram

  • Title
1

Engine Briggs & Stratton Model No. 44M777-1387-G1

$

$

Not available

$74.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532194320

Keeper Belt Engine
(Superseded to 584908001)

$

$

Not available

11

Husqvarna 532400008

Clutch
(Superseded to 532414336)

$399.99

$

In Stock, only 1 left!

0

12

Husqvarna 532405097

Pulley Engine

$100.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532422948

Tank Fuel
(Superseded to 599306202)

$284.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532430213

Cap Asm
(Superseded to 532439208)

$53.99

$

In Stock, only 1 left!

0

20

Husqvarna 532424340

Control Throttle
(Superseded to 586219601)

$80.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532416358

Screw #10 x .750 BOS Thread

$

$

Not available

28

Husqvarna 532401135

Fuel Line
(Superseded to 587044864)

$20.99

$

In Stock, only 2 left!

0

29

Husqvarna 532137180

Spark Arrester Kit

$182.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

Clamp Hose

$7.49

$

In Stock, only 4 left!

0

41

Husqvarna 532126197

Washer 1-1/2 OD x 15/32 ID x .250

$8.99

$

In Stock, only 3 left!

0

42

Husqvarna 810040700

Washer Lock 7/16
(Superseded to 539990247)

$

$

Not available

45

Husqvarna 873510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0

62

Husqvarna 532146629

Heat Shield
(Superseded to 532434017)

$15.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, Qty 20+

0

70

Husqvarna 532159955

Tube Exhaust LH
(Superseded to 581881101)

$44.99

$

In Stock, only 1 left!

0

71

Husqvarna 532160589

Exhaust Tube RH
(Superseded to 581881001)

$27.99

$

In Stock, only 1 left!

0

79

Husqvarna 532183906

Screw Socket HD 5/16-18 x 1

$6.49

$

Usually ships in 3-10 days

0

84

Husqvarna 817060620

Screw 3/8-16 x 1-1/4

$7.49

$

In Stock, Qty 11

0

85

Husqvarna 532173937

Bolt Hex 7/16-20 x 4 x Gr. 5-1.5 Thr
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

87

Husqvarna 537171877

Bolt 5/16-18 UNC x 3/4 w/Sems
(Superseded to 532171877)

$7.49

$

In Stock, Qty 5

0

90

Husqvarna 817000616

Screw 3/8-16 x 1

$7.49

$

In Stock, only 3 left!

0

91

$6.49

$

In Stock, only 1 left!

0

109

Husqvarna 532414114

Canister Carbon Filter Asm

$62.99

$

Usually ships in 3-10 days

0

110

Husqvarna 532414118

Valve Anti-Slosh

$27.99

$

Usually ships in 3-10 days

0

111

Husqvarna 532420718

Purge Line

$10.99

$

Usually ships in 3-10 days

0

113

Husqvarna 532414127

Valve Slant Cardrdg

$

$

Not available

116

Husqvarna 532424659

Knob Soft Touch
(Superseded to 539132624)

$7.99

$

In Stock, Qty 6

0

117

Husqvarna 532420828

Valve Fuel Reserve

$47.99

$

In Stock, only 2 left!

0
