YTH 24V48 (960450063-01) - Husqvarna 48" Yard Tractor (2020-10) ENGINE Parts Diagram

48" Yard Tractor

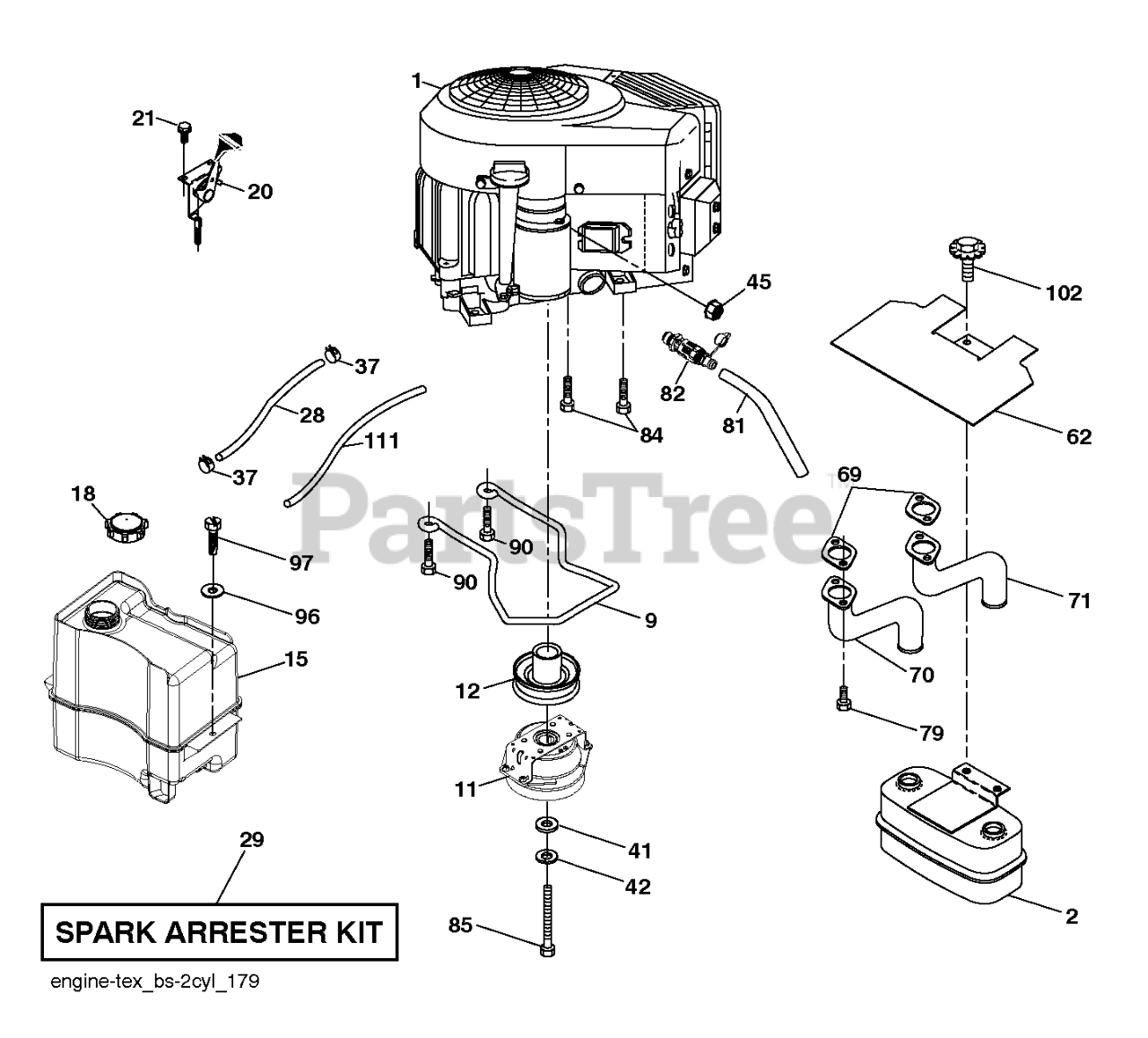

ENGINE Parts Diagram

  • Title

85

Husqvarna 501606601

BOLT.HEX.7/16-20X3.75.GR5.RED

$4.99

$

In Stock, only 1 left!

0

20

Husqvarna 587242501

THROTTLE.COBRA.38"READSTART.BK

$

$

Not available

9

Husqvarna 596501502

Keepers

$11.99

$

In Stock, Qty 5

0

20

Husqvarna 587242504

THROTTLE CABLE

$37.99

$

In Stock, only 2 left!

0

69

Husqvarna 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 597954503

FUEL TANK

$

$

Not available

2

Husqvarna 589818701

MUFFLER.ASM.TWIN.MNTG.BRACKET
(Superseded to 589818702)

$51.99

$

Usually ships in 3-10 days

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, only 4 left!

0

71

Husqvarna 581881001

EXHAUST.TUBE.RH.B&S.TWIN.INTEK

Note: RH

$27.99

$

In Stock, only 1 left!

0

12

Husqvarna 532405097

PULLEY.ENGINE.TUFFTORQ

$100.99

$

Usually ships in 3-10 days

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

70

Husqvarna 581881101

EXHAUST.TUBE.LH.BS/TWIN

Note: LH

$44.99

$

In Stock, only 1 left!

0

11

Husqvarna 587241601

CLUTCH.OGURA.5.0PD.GT1.5A-EH07

$278.99

$

In Stock, only 1 left!

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

111

Husqvarna 596941501

TUBE.PURGE.FUEL.1875

$2.49

$

Usually ships in 3-10 days

0

18

Husqvarna 587382901

FUEL.CAP.ASM.2.25TETHRED.RATCH

$18.99

$

In Stock, only 1 left!

0

45

Husqvarna 596133601

Hardware

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 596321701

Screws

$3.99

$

In Stock, Qty 15

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

Usually ships in 3-10 days

0

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

96

Husqvarna 596135301

Washers

$3.99

$

In Stock, Qty 6

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 4 left!

0

28

Husqvarna 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

$20.99

$

In Stock, only 2 left!

0

79

Husqvarna 596134202

Screws

$3.99

$

In Stock, only 2 left!

0

41

Husqvarna 532126197

WASHER

$8.99

$

In Stock, only 3 left!

0

42

Husqvarna 596238901

Washers

$3.99

$

In Stock, Qty 20+

0

1

000000000

Note: Engine Briggs Model No.44N877-0019-G1 (529582001)

$

$

Not available

84

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0
