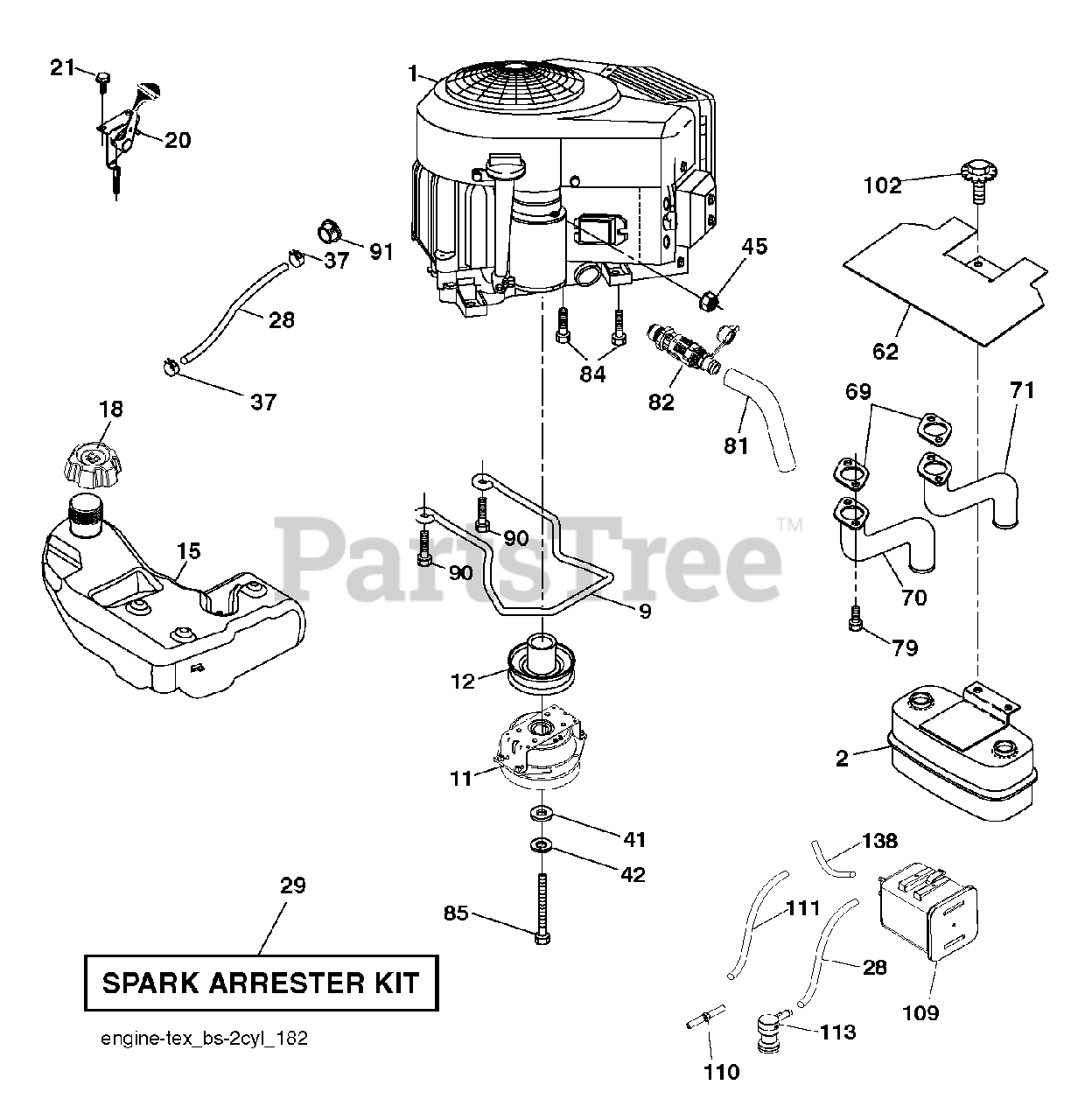

YTH 24V48 (96045-0068-00) - Husqvarna 48" Yard Tractor (2017-09) ENGINE Parts Diagram

48" Yard Tractor

ENGINE Parts Diagram

  • Title
1

000000000

Note: ENGINE B S MODEL NO 44N877-0003-G1 (501259701)

$

$

Not available

2

Husqvarna 589818701

Muffler Assembly, Twin MN
(Superseded to 589818702)

$51.99

$

Usually ships in 3-10 days

0

9

Husqvarna 501832601

KEEPER.BELT.ENG.4.25"2.BLT.431
(Superseded to 501832602)

$

$

Not available

11

Husqvarna 587241601

CLUTCH.OGURA.5.0PD.GT1.5A-EH07

$278.99

$

In Stock, only 1 left!

0

12

Husqvarna 532405097

PULLEY.ENGINE.TUFFTORQ

$100.99

$

Usually ships in 3-10 days

0

15

Husqvarna 589900501

Fuel Assembly Tank, 3 Gallon
(Superseded to 589900502)

$

$

Not available

18

Husqvarna 585124801

CAP ASSY FUEL 3" GRAY

$20.99

$

In Stock, only 1 left!

0

20

Husqvarna 587242501

THROTTLE.COBRA.38"READSTART.BK

$

$

Not available

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

28

Husqvarna 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

$20.99

$

In Stock, only 2 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

$8.99

$

In Stock, only 3 left!

0

42

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

70

Husqvarna 581881101

EXHAUST.TUBE.LH.BS/TWIN

Note: LH

$44.99

$

In Stock, only 1 left!

0

71

Husqvarna 581881001

EXHAUST.TUBE.RH.B&S.TWIN.INTEK

Note: RH

$27.99

$

In Stock, only 1 left!

0

79

Husqvarna 532183906

SCREW.SOCKET.HEAD.5/16-18

$6.49

$

Usually ships in 3-10 days

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 4 left!

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, only 4 left!

0

84

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

85

Husqvarna 501606601

BOLT.HEX.7/16-20X3.75.GR5.RED

$4.99

$

In Stock, only 1 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

91

Husqvarna 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 1 left!

0

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

109

Husqvarna 532414114

CANNISTER, CARBON

$62.99

$

Usually ships in 3-10 days

0

110

Husqvarna 532414118

VALVE.ASM.ANTI-SLOSH

$27.99

$

Usually ships in 3-10 days

0

111

Husqvarna 532414119

RP PURGE LINE
(Superseded to 532448562)

$

$

Not available

113

Husqvarna 532414127

VALVE.SLANT.CARTRDG.90 DEG.TEX

$

$

Not available

138

Husqvarna 532420718

PURGE.LINE.36"REAR.CALIFORNIA

$10.99

$

Usually ships in 3-10 days

0
