YTH 24V48 (960430180-00) - Husqvarna 48" Yard Tractor (2013-12) MOWER DECK / CUTTING DECK Parts Diagram

48" Yard Tractor

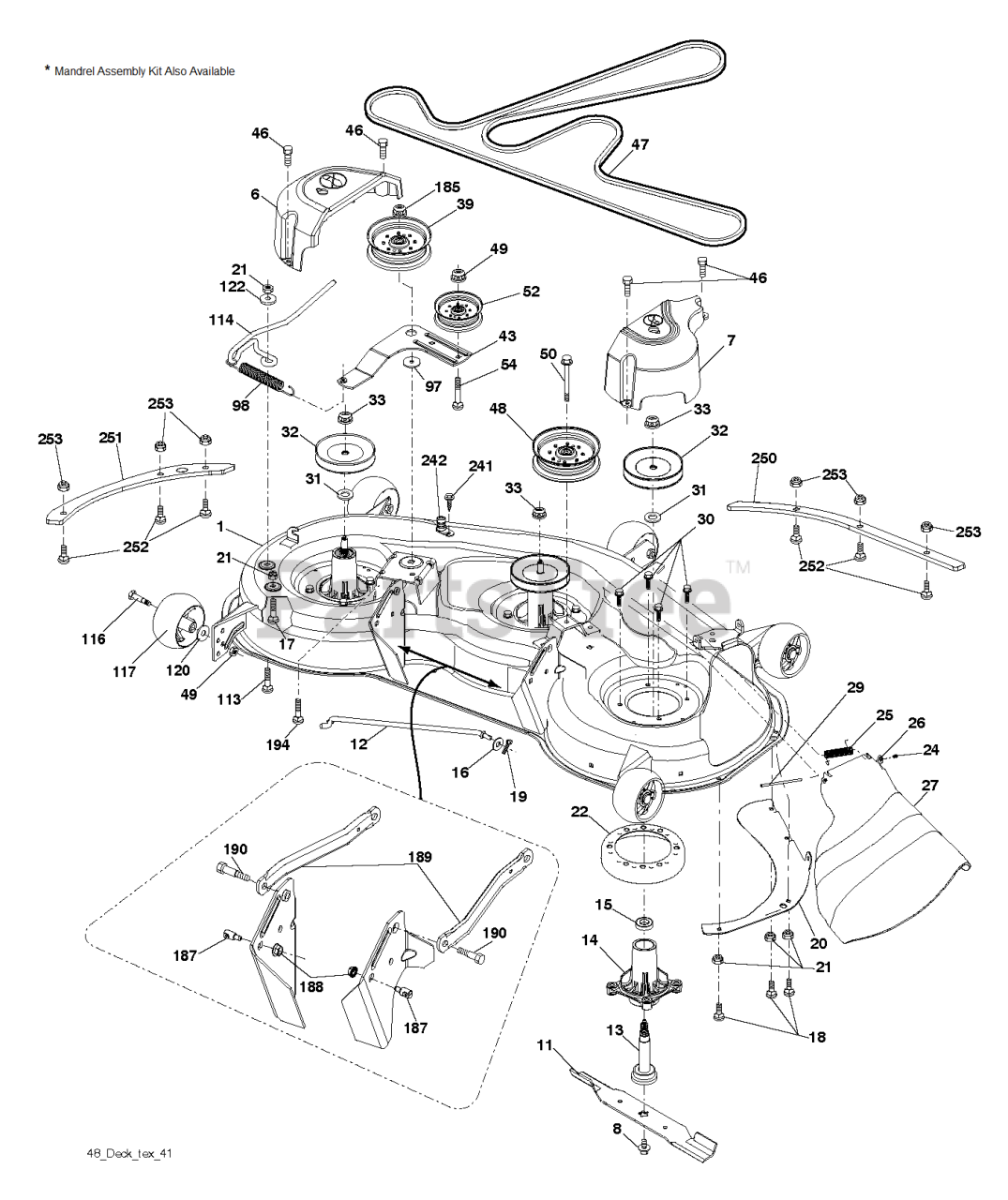

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

MNDRL

Husqvarna 532187292

MANDREL ASSEMBLY KIT
(Superseded to 587820301)

Note: MANDREL ASSEMBLY (includes Housing (Key 14) Shaft Assembly (Key 13) and Bearing Only (Key 15) and (Key 33) Pulley /Washer and Blade Bolt /Washers Not Included)

$56.99

$

In Stock, Qty 16

0

1

Husqvarna 532418223

DECK, COMPLETE, 48"
(Superseded to 532418224)

$545.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532441293

DECK, SHELL ONLY, 48"
(Superseded to 532418224)

$545.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532197248

COVER.MANDREL.LH.48"(2 2)

Note: LH

$34.99

$

In Stock, only 2 left!

0

7

Husqvarna 532199102

COVER.MANDREL.RH.48"
(Superseded to 587452401)

Note: RH

$20.99

$

In Stock, only 3 left!

0

8

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532180054

48" HI-LIFT BLADE

$22.99

$

In Stock, Qty 20+

0

12

Husqvarna 532404851

ROD.ANTI.SWAY.48/54"K4

$26.99

$

In Stock, Qty 5

0

13

Husqvarna 532187291

SHAFT ASM MANDREL

$28.99

$

In Stock, Qty 10

0

14

Husqvarna 532187281

HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$56.99

$

In Stock, Qty 11

0

15

Husqvarna 532110485

BEARING

$13.99

$

In Stock, only 4 left!

0

16

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna 872110505

BOLT
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532174378

BAFFLE, VORTEX MWR

$14.99

$

Usually ships in 3-10 days

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532174493

STRIPPER.MANDREL.ROUND.BLACK

$7.49

$

Usually ships in 3-10 days

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532178102

SPRING, TORSION
(Superseded to 539107609)

$5.99

$

In Stock, Qty 20+

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532181707

DEFLECTOR SUBS TO 532 180655
(Superseded to 532180655)

$45.99

$

In Stock, Qty 6

0

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, only 2 left!

0

32

Husqvarna 532153532

PULLEY MANDREL
(Superseded to 532173435)

$22.99

$

In Stock, Qty 8

0

33

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 16

0

39

Husqvarna 532197380

RB PULLEY.IDLER.4.50/HUB SPEC
(Superseded to 532196104)

$43.99

$

In Stock, Qty 20+

0

43

Husqvarna 532196065

ARM.IDLER

$15.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

47

Husqvarna 532197242

BELT.DRIVE.DECK
(Superseded to 593773401)

$62.99

$

In Stock, Qty 10

0

48

Husqvarna 532197379

PULLEY.IDLER.2006
(Superseded to 532196106)

$39.99

$

In Stock, Qty 20+

0

49

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

50

Husqvarna 817490636

SCREW TT 3/8-16X2-1/4 UNC
(Superseded to 596564004)

$2.49

$

In Stock, Qty 6

0

52

Husqvarna 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$31.99

$

In Stock, Qty 5

0

54

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

97

Husqvarna 532178515

WASHER

$6.99

$

Usually ships in 3-10 days

0

98

Husqvarna 532196105

SPRING, DECK DRIVE

$7.99

$

In Stock, Qty 11

0

113

Husqvarna 872110508

BOLT CRT

$4.99

$

Usually ships in 3-10 days

0

114

Husqvarna 532197451

ROD.TENSION.RELIEF.TEX (2 2)

$18.99

$

In Stock, only 1 left!

0

116

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

117

Husqvarna 532174873

WHEEL. GUAGE RALLY
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

120

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

122

Husqvarna 532187557

BUSHING.RELIEF.TENSION

$9.49

$

In Stock, only 1 left!

0

185

Husqvarna 873900700

NUT.LOCK.FLANGE.7/16

$7.49

$

In Stock, Qty 5

0

187

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

188

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

189

Husqvarna 532195185

ARM.SUSPENSION.MOWER
(Superseded to 531169201)

$14.99

$

In Stock, Qty 5

0

190

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

194

Husqvarna 874490736

BOLT.HEX.WASHER.HEAD.7/16-24X

$13.99

$

In Stock, only 4 left!

0

241

Husqvarna 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, only 2 left!

0

242

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 13

0

250

Husqvarna 585318005

PLATE.REIN.FRNT.BOLTON.48X431

$9.49

$

In Stock, only 2 left!

0

251

Husqvarna 585322405

PLATE.REIN.SIDE.BOLT.ON.48X431

$13.99

$

In Stock, only 1 left!

0

252

Husqvarna 539109800

RHSNB, 1/4-20 X 1, GR5
(Superseded to 592807801)

$4.99

$

In Stock, only 3 left!

0

253

Husqvarna 873900400

NUT T
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0

242

Husqvarna 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 7

0
