YTH 24V42 LS (960480013-00) - Husqvarna 42" Yard Tractor (2010-12) MOWER LIFT LEVER Parts Diagram

42" Yard Tractor

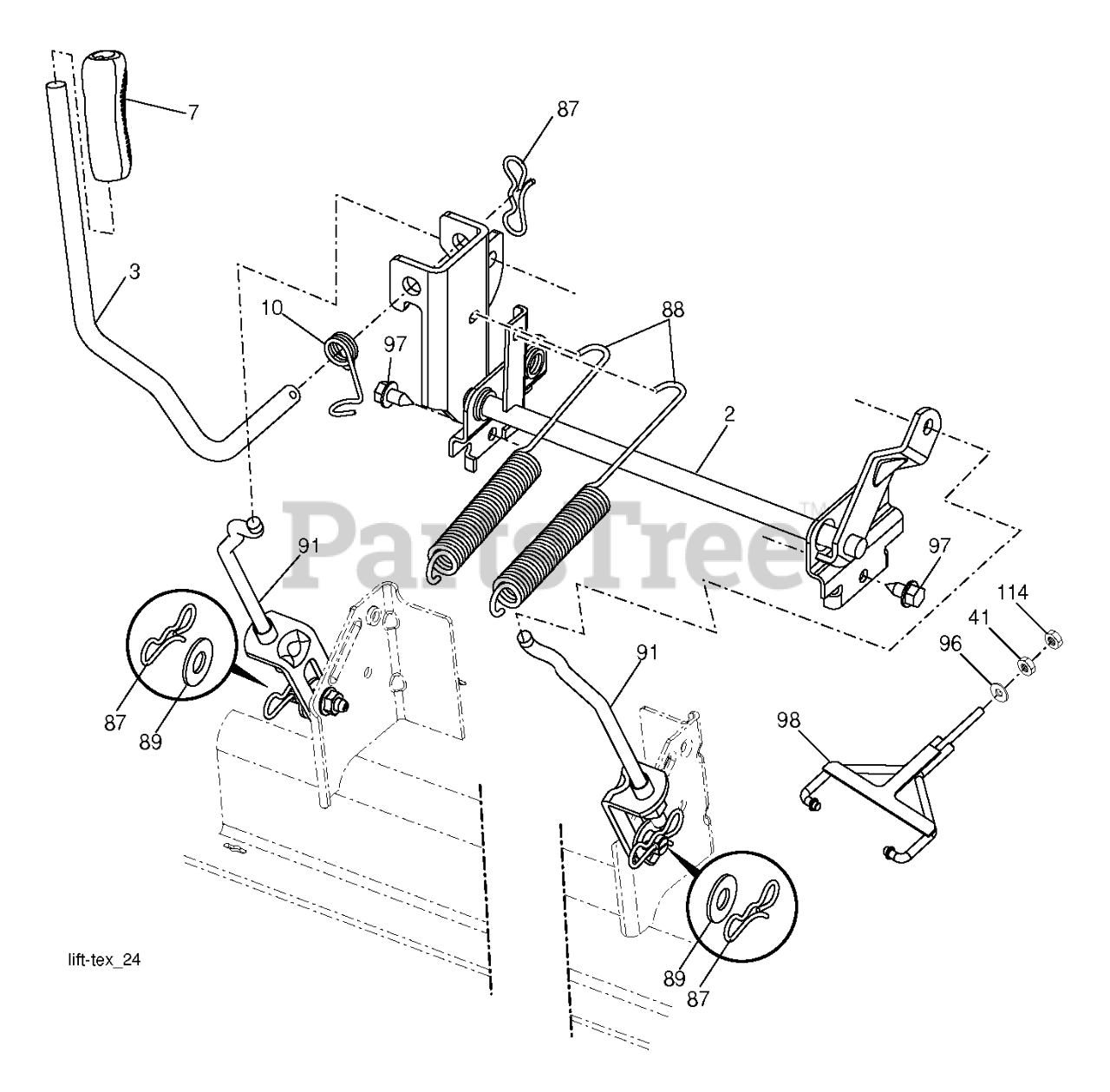

MOWER LIFT LEVER Parts Diagram

  • Title

7

Husqvarna 532411555

GRIP.HANDLE.LIFT.PVC.BLACK

$9.49

$

In Stock, only 2 left!

0

3

Husqvarna 532195231

LEVER.LIFT.HANDLE.LT

Note: RH

$

$

Not available

96

Husqvarna 532195263

BUSHING SPHERICAL SUSP. FRONT

$

$

Not available

114

Husqvarna 873360700

NUT **
(Superseded to 873610700)

$7.49

$

In Stock, only 1 left!

0

97

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532196314

SPRING.TORSION.LIFT.HANDLE

$6.49

$

In Stock, only 2 left!

0

2

Husqvarna 532422027

SHAFT.ASM.CROSS.LIFT

$80.99

$

In Stock, only 2 left!

0

89

Husqvarna 819191912

WASHER.CLEAR.ZINC

$6.49

$

In Stock, Qty 10

0

98

Husqvarna 574822501

SUSPENSION WLDT FRONT DECK

$103.99

$

Usually ships in 3-10 days

0

87

Husqvarna 532194209

PIN.COTTER.7/16.BOW TI.

$3.99

$

In Stock, only 3 left!

0

88

Husqvarna 532410710

SPRING.LIFT.ASSIST

$11.99

$

In Stock, Qty 6

0

91

Husqvarna 532403407

LINK.ASM.LIFT.54"TG

$

$

Not available

41

Husqvarna 532175994

NUT, LIFT LINK 7/16-20
(Superseded to 589464902)

$4.99

$

In Stock, Qty 12

0
