YTH 2454 T (960430022-03) - Husqvarna 54" Yard Tractor (2006-03) Mower Deck Parts Diagram

54" Yard Tractor

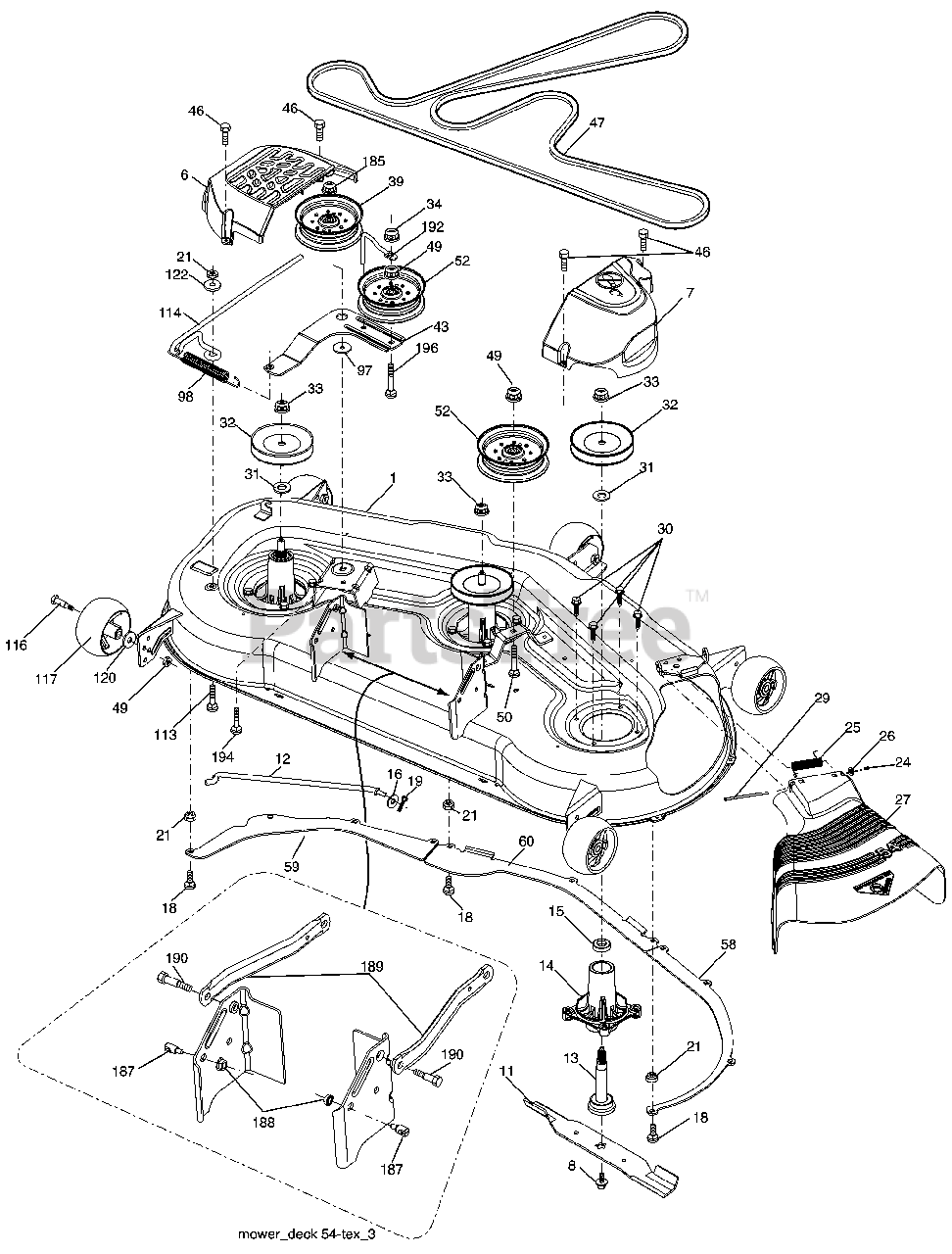

Mower Deck Parts Diagram

  • Title

1

Husqvarna 532403125

Deck Weldment Mower
(Superseded to 532199298)

$512.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532196066

Cover Mandrel LH

$34.99

$

In Stock, only 1 left!

0

7

Husqvarna 532197181

Cover Mandrel RH

$47.99

$

In Stock, only 1 left!

0

8

Husqvarna 532174365

Bolt 7/16 Asm. Blade
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532187256

Blade Bagging
(Superseded to 594892901)

$22.99

$

In Stock, Qty 20+

0

Husqvarna 532187255

Blade Mulching

$22.99

$

In Stock, Qty 20+

0

Husqvarna 532187254

Blade Hi-Lift
(Superseded to 532187255)

$22.99

$

In Stock, Qty 20+

0

12

Husqvarna 532404851

Rod Anti Sway

$26.99

$

In Stock, Qty 5

0

13

Husqvarna 532187291

Shaft Asm. w/Lower Bearing

$28.99

$

In Stock, Qty 10

0

14

Husqvarna 532187281

Housing, Mandrel
(Superseded to 587819701)

$56.99

$

In Stock, Qty 11

0

15

Husqvarna 532110485

Bearing, Ball, Mandrel

$13.99

$

In Stock, only 4 left!

0

16

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna 872140505

Bolt Rdhd Sqnk 5/16-18 x 5/8
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 532194208

Pin cotter 5/16 Bowtie Lock

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 873680500

Nut, Crownlock 5/16-18 unc
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532105304

Cap Sleeve

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532178102

Spring, Torsion
(Superseded to 539107609)

$5.99

$

In Stock, Qty 20+

0

26

Husqvarna 532110452

Nut, Push

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532188938

Defl ector Shield
(Superseded to 532187257)

$80.99

$

In Stock, Qty 9

0

29

Husqvarna 532131491

Rod, Hinge
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Husqvarna 532173984

Screw, Thdroll Washer Head
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 532187690

Washer, Spacer Mower Vented

$4.99

$

In Stock, only 2 left!

0

32

Husqvarna 532173436

Pulley, Mandrel

$17.99

$

In Stock, Qty 20+

0

33

Husqvarna 532400234

Nut, Flg. Top Lock
(Superseded to 596134801)

$4.99

$

In Stock, Qty 16

0

34

Husqvarna 873680600

Nut Crownlock 3/8-16 unc

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532196104

Pulley, Idler, Stationary LH

$43.99

$

In Stock, Qty 20+

0

43

Husqvarna 532196065

Arm, Idler

$15.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532137729

Screw, Thdroll. 1/4-20 x 5/8

$4.99

$

In Stock, Qty 20+

0

47

Husqvarna 532196103

Belt Deck Drive
(Superseded to 587686701)

$62.99

$

In Stock, Qty 10

0

49

Husqvarna 873900600

Nut, Lock Flg. 3/8-16 unc
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

50

Husqvarna 872110616

Bolt Rdhd Sqnk 3/8-16 unc x 2

$6.49

$

Usually ships in 3-10 days

0

52

Husqvarna 532196106

Pulley Idler

$39.99

$

In Stock, Qty 20+

0

58

Husqvarna 532187342

Baffl e Right

$12.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532187344

Baffl e Left

$

$

Not available

60

Husqvarna 532187607

Baffl e Center

$22.99

$

In Stock, only 2 left!

0

97

Husqvarna 532178515

Washer Hardened

$6.99

$

Usually ships in 3-10 days

0

98

Husqvarna 532196105

Spring Drive

$7.99

$

In Stock, Qty 11

0

113

Husqvarna 872110508

Bolt Rdhd Sqnk 5/16-18 x 3/4

$4.99

$

Usually ships in 3-10 days

0

114

Husqvarna 532187556

Rod Tension Relief

$24.99

$

In Stock, only 1 left!

0

116

Husqvarna 532193406

Bolt, Shoulder
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

117

Husqvarna 532174873

Gauge Wheel
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

120

Husqvarna 819132012

Washer 13/32 x 1-1/4 x 12 Ga.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

122

Husqvarna 532187557

Bushing Tension Relief

$9.49

$

In Stock, only 1 left!

0

185

Husqvarna 873900700

Nut Lock Flange 7/16-14 Gr. 5

$7.49

$

In Stock, Qty 5

0

187

Husqvarna 532195161

Stud Fastener w/"D" Anti-Rotation

$

$

Not available

188

Husqvarna 873900500

Nut Lock Hex Flange
(Superseded to 583612701)

$

$

Not available

189

Husqvarna 532195185

Arm Susp. Mower Rear
(Superseded to 531169201)

$14.99

$

In Stock, Qty 5

0

190

Husqvarna 532196539

Bolt Shoulder

$7.49

$

In Stock, Qty 20+

0

192

Husqvarna 532198468

Keeper Belt Idler

$17.99

$

Usually ships in 3-10 days

0

194

Husqvarna 872140716

Bolt Carr Sqnk 7/16-18 x 2
(Superseded to 874490736)

$13.99

$

In Stock, only 4 left!

0

196

Husqvarna 872140620

Bolt Rdhd Sqnk 3/8-16 x 2-1/2 Gr. 5

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 532187292

Mandrel Asm. Service
(Superseded to 587820301)

Note: (Includes Key Nos. 13-15 and 33)

$56.99

$

In Stock, Qty 16

0

Husqvarna 532199300

Replacement Mower, Complete
(Superseded to 532199298)

$512.99

$

Usually ships in 3-10 days

0
