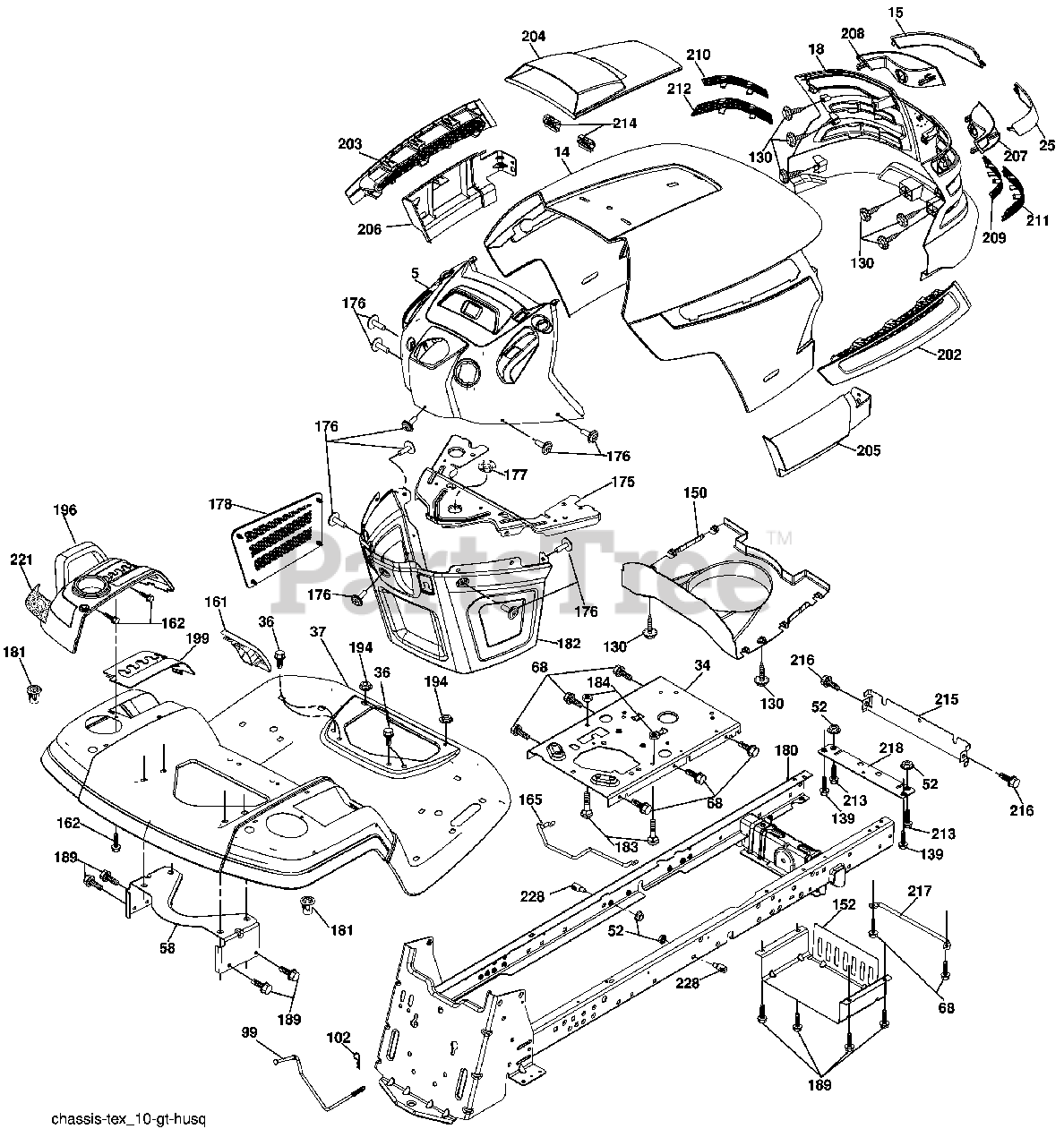

YTH 2454 T (960430022-03) - Husqvarna 54" Yard Tractor (2006-03) Chassis Parts Diagram

54" Yard Tractor

Chassis Parts Diagram

  • Title
5

Husqvarna 532401823

Dash
(Superseded to 532408701)

$

$

Not available

14

Husqvarna 532401824

Hood
(Superseded to 532442396)

$

$

Not available

15

$44.99

$

In Stock, Qty 5

0

18

Husqvarna 532404821

Grille
(Superseded to 532408607)

$

$

Not available

25

$44.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532196125

Plate Engine
(Superseded to 580910801)

$68.99

$

In Stock, only 1 left!

0

36

Husqvarna 817060512

Screw 5/16-18 x 3/4
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532401825

Fender
(Superseded to 532441208)

$250.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532194314

Bracket Fender

$27.99

$

Usually ships in 3-10 days

0

68

Husqvarna 817490508

Screw 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

99

Husqvarna 532401996

Rod Bypass Asm.
(Superseded to 532415743)

$10.99

$

In Stock, only 1 left!

0

102

Husqvarna 532124788

Retainer Spring 1''
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

130

Husqvarna 532191611

Screw 10 x 3/4 Single Lead Hex
(Superseded to 532416358)

$

$

Not available

139

Husqvarna 532171873

Bolt Shoulder 5/16-18

$5.99

$

Usually ships in 3-10 days

0

150

Husqvarna 532188512

Duct Heat Hood

$

$

Currently unavailable

152

Husqvarna 532196390

Shield Browning/Debris

$

$

Not available

161

Husqvarna 532401826

Console Fuel Window

$7.99

$

In Stock, Qty 5

0

162

Husqvarna 532142432

Screw Hex Wsh Hi-Lo 1/4 x 1/2

$6.49

$

Usually ships in 3-10 days

0

165

Husqvarna 532196826

Bracket Support Tank

$26.99

$

Usually ships in 3-10 days

0

175

Husqvarna 532196304

Crossmember
(Superseded to 590607702)

$37.99

$

Usually ships in 3-10 days

0

176

Husqvarna 532400776

Screw 10-24 x 5/8 RND Qdrx

$10.99

$

Usually ships in 3-10 days

0

177

Husqvarna 532195227

Bushing Steering

$6.99

$

In Stock, Qty 15

0

178

Husqvarna 532199782

Cargo Asm. Net

$34.99

$

Usually ships in 3-10 days

0

180

Husqvarna 532401559

Chassis
(Superseded to 582033001)

$284.99

$

Usually ships in 3-10 days

0

181

Husqvarna 532403025

Bushing Mtg. Fender Crgo.

$

$

Not available

182

Husqvarna 532194787

Dash Lower
(Superseded to 532406859)

$96.99

$

In Stock, only 2 left!

0

183

Husqvarna 874780520

Bolt 5/16-18 x 1-1/4
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

184

Husqvarna 532195780

Spacer Fender

$7.49

$

Usually ships in 3-10 days

0

189

Husqvarna 817000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

194

Husqvarna 873900500

Nut Lock Hex Flange 5/16-18
(Superseded to 583612701)

$

$

Not available

196

Husqvarna 532400299

Console Asm. Deck Lift
(Superseded to 532439716)

$121.99

$

Usually ships in 3-10 days

0

199

Husqvarna 532198259

Plate Deck Lift

$26.99

$

Usually ships in 3-10 days

0

202

Husqvarna 532403048

Vent Side Hood RH

$

$

Not available

203

Husqvarna 532403076

Vent Side Hood LH

$

$

Not available

204

Husqvarna 532198904

Vent Asm Hood Top
(Superseded to 532416615)

$19.99

$

Usually ships in 3-10 days

0

205

Husqvarna 532401709

Skirt Hood Side RH

$7.99

$

Usually ships in 3-10 days

0

206

Husqvarna 532401711

Skirt Hood Side LH

$

$

Not available

207

$26.99

$

Usually ships in 3-10 days

0

208

$20.99

$

Usually ships in 3-10 days

0

209

Husqvarna 532199130

Insert Hex Top RH

$5.99

$

Usually ships in 3-10 days

0

210

Husqvarna 532199131

Insert Hex Top LH

$

$

Not available

211

Husqvarna 532199132

Insert Hex Bottom RH

$2.99

$

Usually ships in 3-10 days

0

212

Husqvarna 532199133

Insert Hex Bottom LH

$3.49

$

Usually ships in 3-10 days

0

213

Husqvarna 874760512

Bolt Hex Hd 5/16-18 unc x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

214

Husqvarna 532199145

Clip Retainer

$6.49

$

In Stock, only 4 left!

0

215

Husqvarna 532198043

Cover Chassis Front

$

$

Not available

216

Husqvarna 817670508

Screw 5/16-18 x 1/2

$9.49

$

In Stock, only 2 left!

0

217

Husqvarna 532156524

Rod Pivot
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

218

$7.99

$

Usually ships in 3-10 days

0

221

Husqvarna 532198909

Refl ector LH

$17.99

$

In Stock, only 1 left!

0

228

Husqvarna 532195161

Stud Fastener

$

$

Not available
