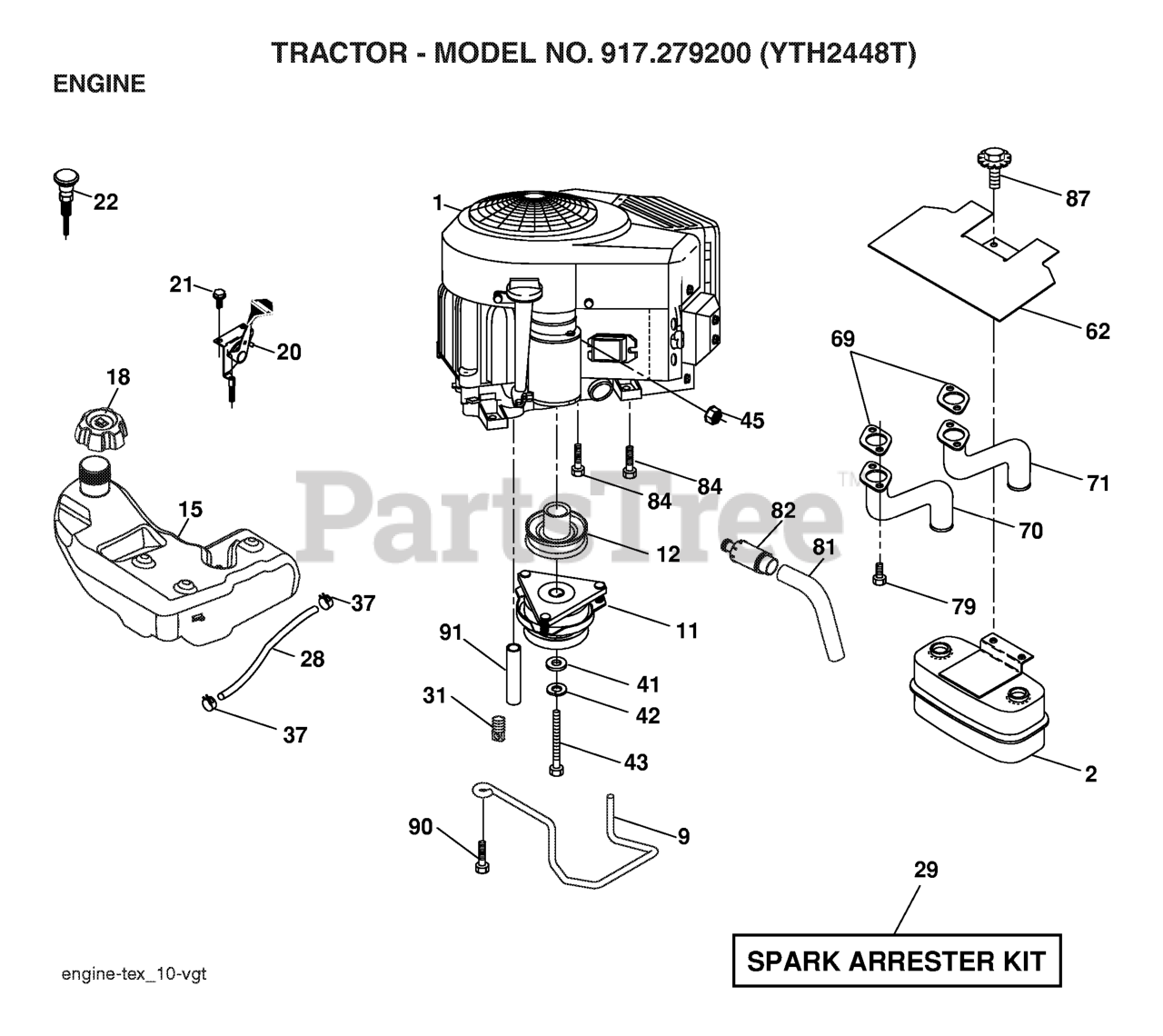

YTH 2448 T (917279200) - Husqvarna 48" Yard Tractor (2006-01) ENGINE Parts Diagram

48" Yard Tractor

ENGINE Parts Diagram

  • Title
18

Husqvarna 532194267

CAP.FUEL.TANK.3"GREY
(Superseded to 584248702)

$17.99

$

In Stock, only 1 left!

0

$8.99

$

In Stock, only 3 left!

0

70

Husqvarna 532159955

RP.EXHAUST.TUBE.LH.BS/TWIN
(Superseded to 581881101)

$44.99

$

In Stock, only 1 left!

0

21

Husqvarna 532191611

SCREW
(Superseded to 532416358)

$

$

Not available

79

Husqvarna 532183906

SCREW.SOCKET.HEAD.5/16-18

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532194319

KEEPER.BELT.ENGINE.3.25 (3 2)

$13.99

$

In Stock, only 1 left!

0

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

87

Husqvarna 532198239

BOLT.5/16-18UNCX1.W/SEMS.BLK

$7.49

$

In Stock, only 4 left!

0

11

Husqvarna 532179334

CLUTCH ELECTRIC
(Superseded to 532414717)

$399.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532193499

TANK.FUEL.4GAL

$145.99

$

Usually ships in 3-10 days

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

69

Husqvarna 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

91

Husqvarna 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 1 left!

0

2

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

22

Husqvarna 532191596

CONTROL.CHOKE.ERGO.PUSH-IN.BLA

$40.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532160589

EXHAUST.TUBE.RH.BS/TWIN
(Superseded to 581881001)

$27.99

$

In Stock, only 1 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

84

Husqvarna 817060624

SCREW 3/8-16 X 1-1/2

$7.49

$

In Stock, only 1 left!

0

31

$6.49

$

Usually ships in 3-10 days

0

43

Husqvarna 532150280

BOLT HEX
(Superseded to 532173937)

$4.99

$

In Stock, only 1 left!

0

62

Husqvarna 532146629

RP SHIELD HEAT MUFFLER
(Superseded to 532434017)

$15.99

$

Usually ships in 3-10 days

0

82

Husqvarna 532181654

PLUG DRAIN OIL EASY
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 3 left!

0

20

Husqvarna 532178385

THROTTLE CABLE
(Superseded to 532175437)

$44.99

$

In Stock, only 1 left!

0
