YTH 2448 (960150001-00) - Husqvarna 48" Yard Tractor (2005-03) Seat Parts Diagram

48" Yard Tractor

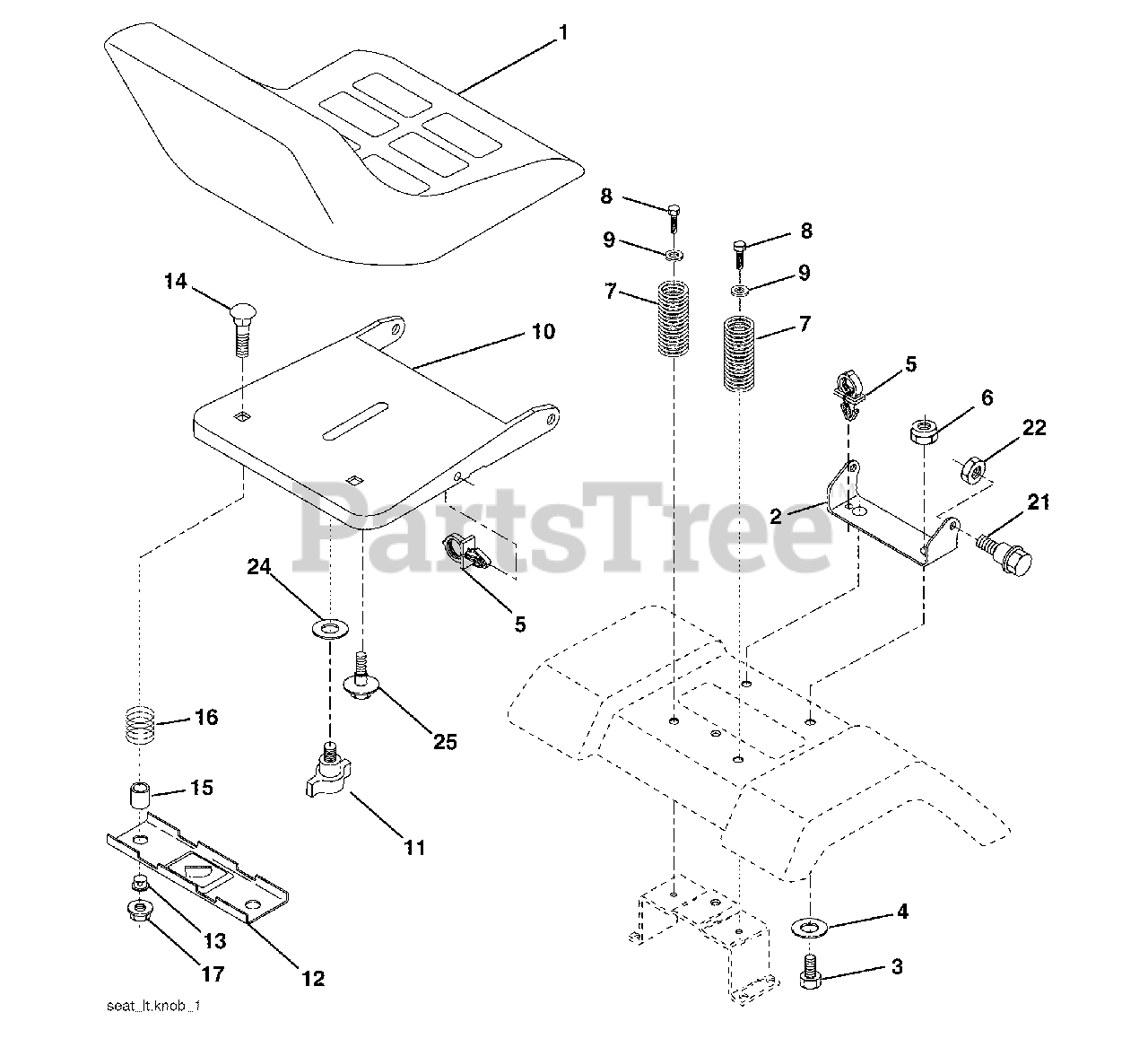

Seat Parts Diagram

  • Title
1

Husqvarna 532188715

Seat
(Superseded to 532439700)

$

$

Not available

2

Husqvarna 532140551

Bracket Pivot Seat 8 720

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 871110616

Bolt Fin Hex 3/8-16 unc x 1

$4.99

$

In Stock, only 2 left!

0

4

Husqvarna 819131610

Washer 13/32 x 1 x 10 Ga.

$6.49

$

In Stock, Qty 7

0

5

Husqvarna 532145006

Clip Push-In

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 873800600

Nut Hex w/Ins. 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532124181

Spring Seat Cprsn 2 250 Blk Zi
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

8

Husqvarna 817000616

Screw 3/8-16 x 1-1/2 Smgml Tap/R Z

$7.49

$

In Stock, only 3 left!

0

9

Husqvarna 819131614

Washer 13/32 x 1 x 14 Ga.
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532182493

Pan Seat
(Superseded to 532195530)

$21.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532166369

Knob Seat Adj. Wingnut

$10.99

$

In Stock, only 1 left!

0

12

Husqvarna 532174648

Bracket Mounting Switch

$10.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532121248

Bushing Snap Blk Nyl 50 Id

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 872050412

Bolt Rdhd Sqnk 1/4-2 x 1-1/2

$6.49

$

Usually ships in 3-10 days

0

$3.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532123740

Spring Cprsn

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532123976

Nut Lock 1/4 Lge Flg Gr. 5 Zinc
(Superseded to 873900400)

$4.99

$

In Stock, Qty 16

0

21

Husqvarna 532171852

Bolt Shoulder 5/16-18 unc-2a Blk DA
(Superseded to 587907801)

$4.99

$

In Stock, Qty 8

0

22

Husqvarna 873800500

Nut Hex Lock W/Ins 5/16-18

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 819171912

Washer 17/32 x 13/16 x 12 Ga.

$7.49

$

In Stock, only 1 left!

0

25

Husqvarna 532127018

Bolt Shoulder 5/16-18 x 62

$7.49

$

Usually ships in 3-10 days

0
