YTH 23V42 LS (960430088-01) - Husqvarna 42" Yard Tractor (2010-05) Engine Parts Diagram

42" Yard Tractor

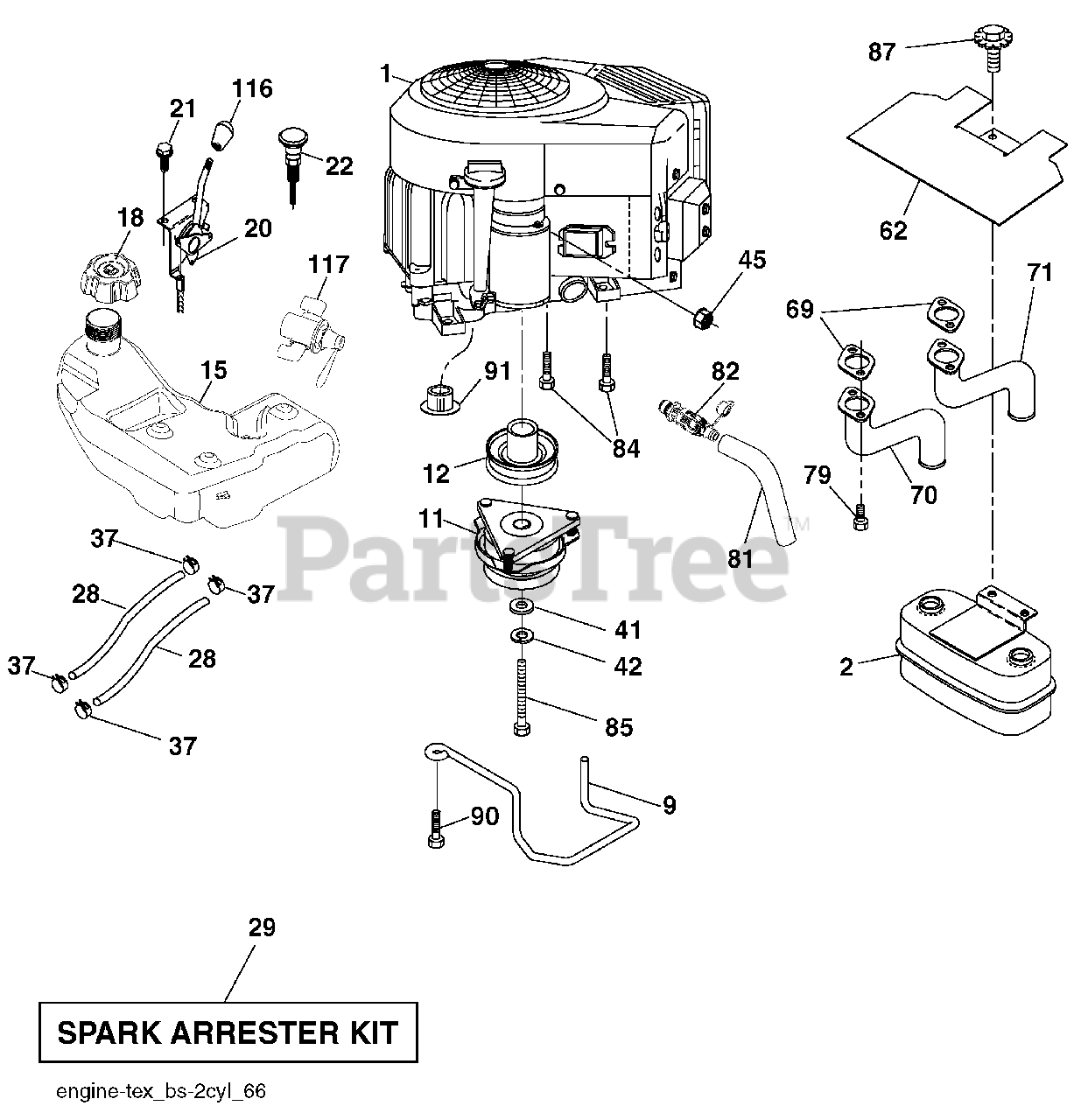

Engine Parts Diagram

  • Title
1

Engine Briggs Model No. 386777- 0111-G1

$

$

Not available

$74.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532194320

Keeper Belt Engine
(Superseded to 584908001)

$

$

Not available

11

Husqvarna 532400008

Clutch Electric
(Superseded to 532414336)

$399.99

$

In Stock, only 1 left!

0

12

Husqvarna 532405097

Pulley Engine

$100.99

$

Usually ships in 3-10 days

0

15

$206.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532430217

Cap Asm
(Superseded to 584248702)

$17.99

$

In Stock, only 1 left!

0

20

Husqvarna 532424341

Control Throttle

$93.99

$

In Stock, only 3 left!

0

21

Husqvarna 532416358

Screw #10 x .750 BOS Thread

$

$

Not available

22

Husqvarna 532191596

Control Choke Ergo

$40.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532401135

Fuel Line
(Superseded to 587044864)

$20.99

$

In Stock, only 2 left!

0

29

Husqvarna 532137180

Spark Arrester Kit

$182.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

Clamp Hose

$7.49

$

In Stock, only 4 left!

0

41

Husqvarna 532126197

Washer 1-1/2 OD x 15/32 ID x .250

$8.99

$

In Stock, only 3 left!

0

42

Husqvarna 810040700

Washer Lock 7/16
(Superseded to 539990247)

$

$

Not available

45

Husqvarna 873510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0

62

Husqvarna 532434017

Heat Shield

$15.99

$

Usually ships in 3-10 days

0

$14.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532191548

Exhaust Tube LH

$84.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532191549

Exhaust Tube RH

$91.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 2 left!

0

81

Husqvarna 532148456

Tube Drain Oil Easy

$6.99

$

In Stock, only 4 left!

0

82

Husqvarna 532428287

Valve Oil Drain

$18.99

$

In Stock, only 1 left!

0

84

Husqvarna 817060620

Screw 3/8-16 x 1-1/4

$7.49

$

In Stock, Qty 11

0

85

Husqvarna 532173937

Bolt Hex 7/16-20 x 4 x Gr. 5-1.5 Thr
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

87

Husqvarna 537171877

Bolt 5/16-18 unc x 3/4 w/Sems
(Superseded to 532171877)

$7.49

$

In Stock, only 4 left!

0

90

Husqvarna 817000616

Screw 3/8-16 x 1

$7.49

$

In Stock, only 3 left!

0

91

Husqvarna 532187495

Bushing 1.375 OD

$6.49

$

In Stock, only 1 left!

0

116

Husqvarna 532424659

Knob Soft Touch
(Superseded to 539132624)

$7.99

$

In Stock, Qty 6

0

117

Husqvarna 532420828

Valve Fuel Reserve

$47.99

$

In Stock, only 2 left!

0
