YTH 23V42 LS (960430088-00) - Husqvarna 42" Yard Tractor (2009-12) Mower Lift Parts Diagram

42" Yard Tractor

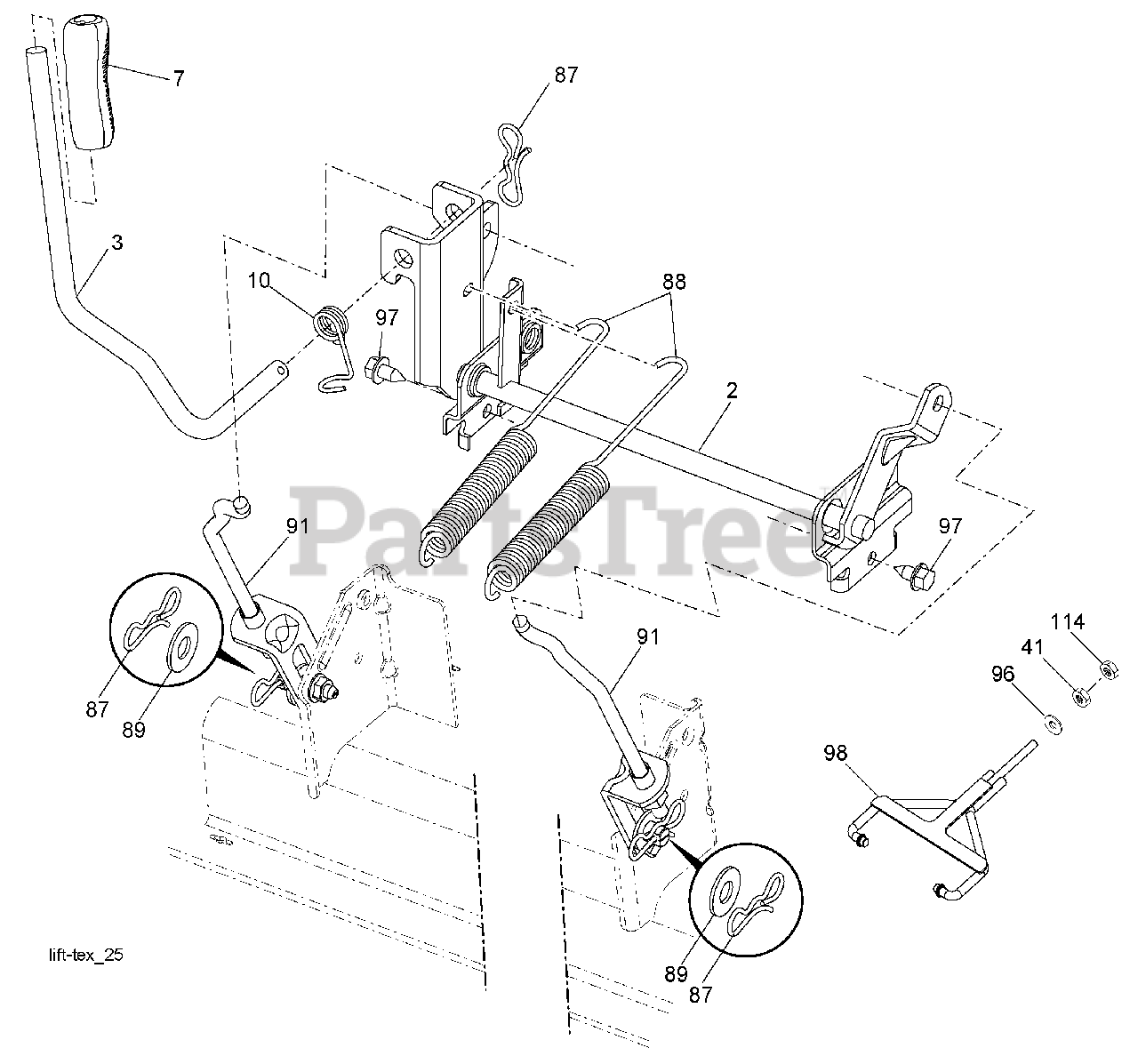

Mower Lift Parts Diagram

  • Title
2

Husqvarna 532422027

Shaft Asm., Lift

$80.99

$

In Stock, only 1 left!

0

3

Husqvarna 532195230

Lever Asm., Lift RH

$54.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532411555

Grip, Lever

$9.49

$

In Stock, only 2 left!

0

10

Husqvarna 532196314

Spring Torsion

$6.49

$

In Stock, only 2 left!

0

41

Husqvarna 532175994

Nut lift Link 7/16-20
(Superseded to 589464902)

$4.99

$

In Stock, Qty 15

0

87

Husqvarna 532194209

Pin Cotter 7/16 Bow Tie Lock

$3.99

$

In Stock, Qty 11

0

88

Husqvarna 532410710

Spring Lift Assist

$11.99

$

In Stock, Qty 6

0

89

Husqvarna 819191912

Washer Clear Zinc

$6.49

$

In Stock, Qty 11

0

91

Husqvarna 532403407

Link Lift Susp Mower Rear

$

$

Not available

96

Husqvarna 532195263

Bushing Spherical

$

$

Not available

97

Husqvarna 817000612

Screw 3/8-16 x 3/4

$4.99

$

In Stock, only 2 left!

0

98

Husqvarna 574822501

Link Lift Front Deck Susp

$103.99

$

Usually ships in 3-10 days

0

114

Husqvarna 873360700

Nut Hex Jam 7/16-20
(Superseded to 873610700)

$7.49

$

In Stock, only 3 left!

0
