YTH 2348 (960450030-00) - Husqvarna 48" Yard Tractor (2010-11) ENGINE Parts Diagram

48" Yard Tractor

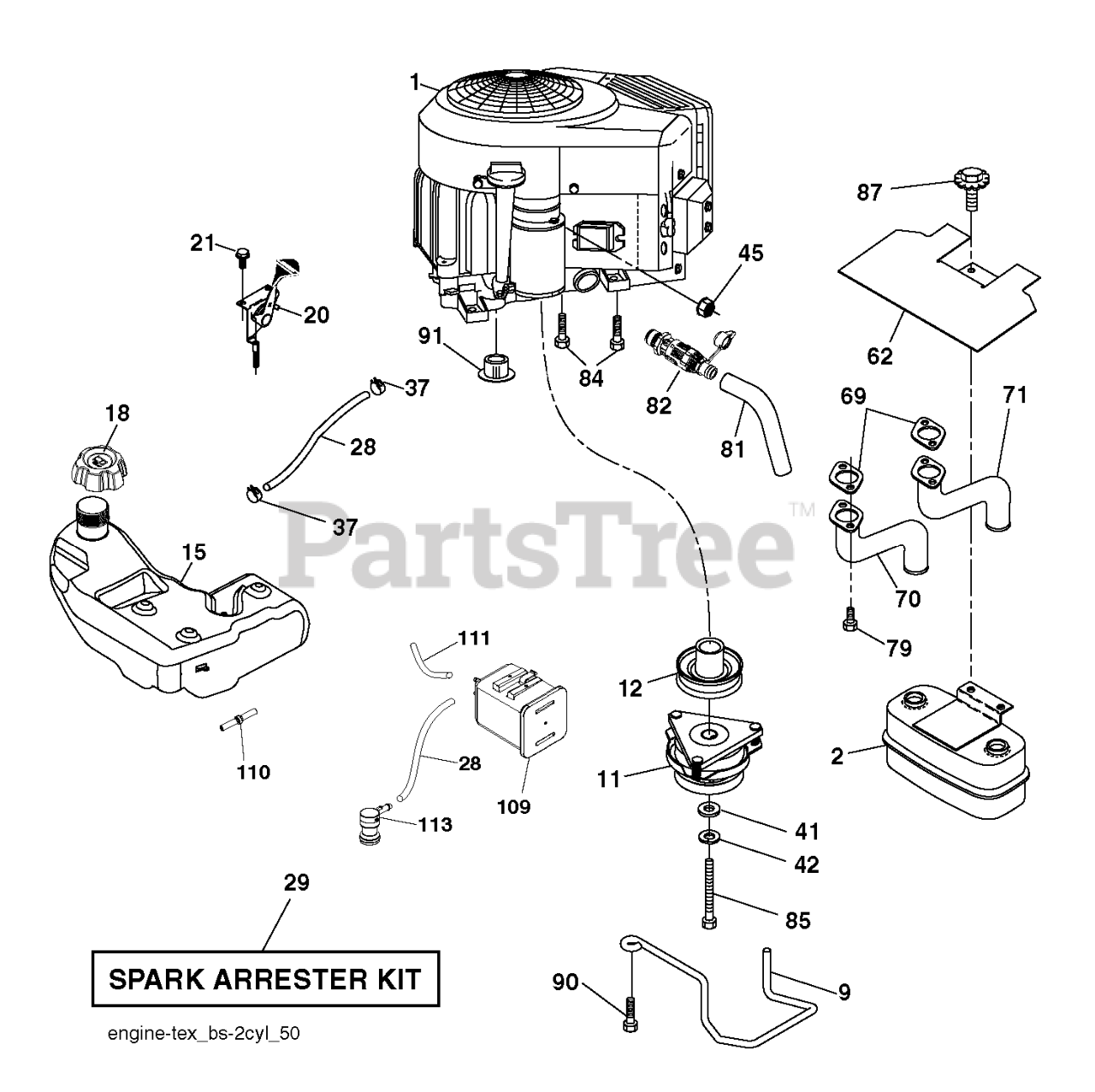

ENGINE Parts Diagram

  • Title
111

Husqvarna 532420718

PURGE.LINE.36"REAR.CALIFORNIA

$10.99

$

Usually ships in 3-10 days

0

87

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 5

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

$8.99

$

In Stock, only 3 left!

0

109

Husqvarna 532414114

CANNISTER, CARBON

$62.99

$

Usually ships in 3-10 days

0

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0

1

000000000

Note: ENGINE BRIGGS MODEL 445577-4187-G1

$

$

Not available

20

Husqvarna 532423502

CONTROL.TH/CK.COBRA.B&S.TWN.BK

$30.99

$

In Stock, only 1 left!

0

113

Husqvarna 532414127

VALVE.SLANT.CARTRDG.90 DEG.TEX

$

$

Not available

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

12

Husqvarna 532405097

PULLEY.ENGINE.TUFFTORQ

$100.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532420722

TANK ASM.FUEL.3
(Superseded to 532420707)

$205.99

$

Usually ships in 3-10 days

0

85

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

91

Husqvarna 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 1 left!

0

9

Husqvarna 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 584908001)

$

$

Not available

79

Husqvarna 532183906

SCREW.SOCKET.HEAD.5/16-18

$6.49

$

Usually ships in 3-10 days

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 4 left!

0

71

Husqvarna 581881001

EXHAUST.TUBE.RH.B&S.TWIN.INTEK

Note: RH

$27.99

$

In Stock, only 1 left!

0

110

Husqvarna 532414119

RP PURGE LINE
(Superseded to 532448562)

$

$

Not available

84

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

69

Husqvarna 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

70

Husqvarna 581881101

EXHAUST.TUBE.LH.BS/TWIN

Note: LH

$44.99

$

In Stock, only 1 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

11

Husqvarna 532400008

CLUTCH.ELECTRIC.LT.48"*
(Superseded to 532414336)

$399.99

$

In Stock, only 1 left!

0

18

Husqvarna 532430213

RP CAP ASM
(Superseded to 532439208)

$53.99

$

In Stock, only 1 left!

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, only 4 left!

0

28

Husqvarna 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

$20.99

$

In Stock, only 2 left!

0
