YTH 2348 (960450005-01) - Husqvarna 48" Yard Tractor (2008-02) Hitch Assembly Parts Diagram

48" Yard Tractor

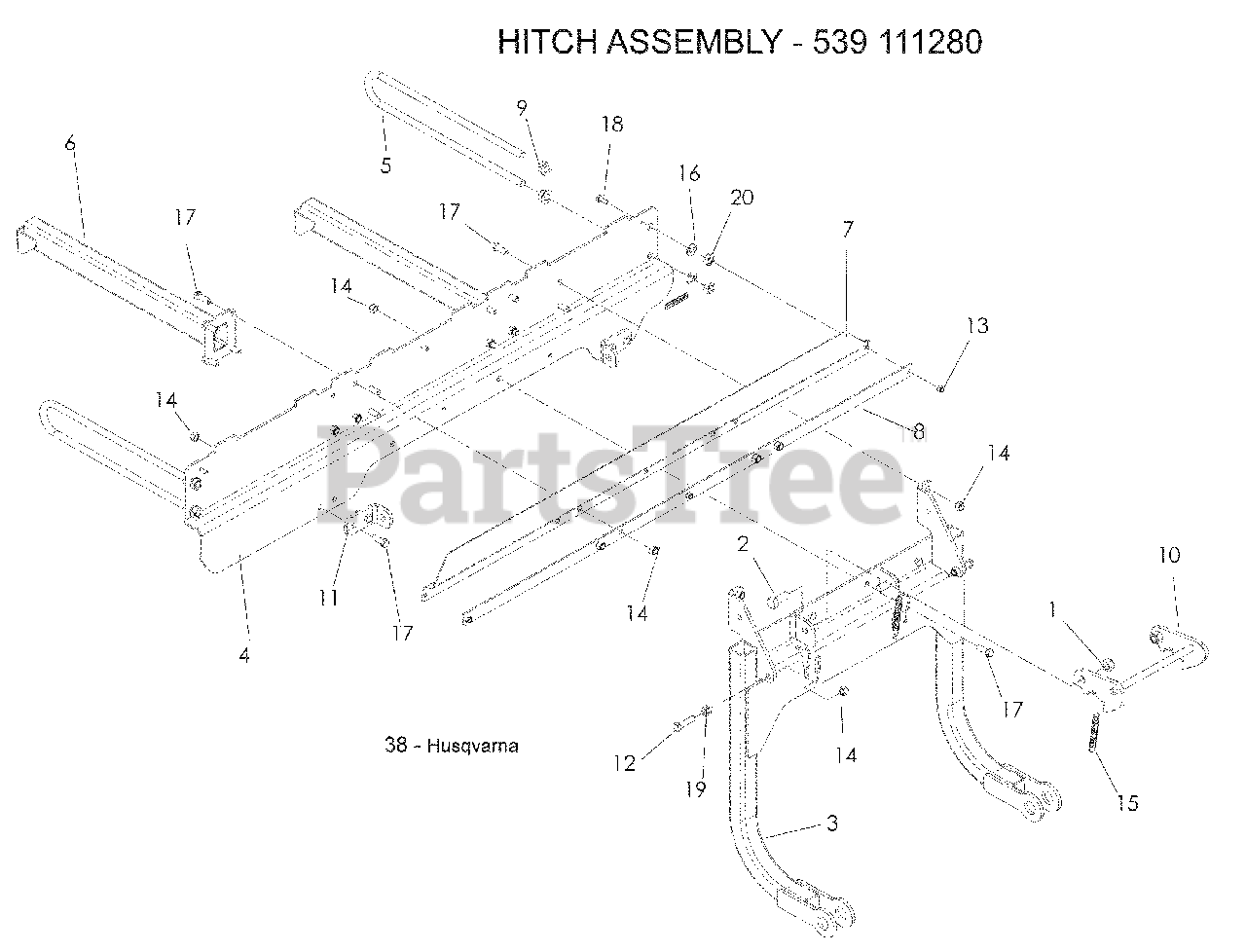

Hitch Assembly Parts Diagram

  • Title

1

Husqvarna 539101331

NUT ½-13 HEX NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

2

Husqvarna 539108369

HCS ½-13 x 1¼

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539111155

HITCH

$424.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539111157

MOUNT Z BRACE

$141.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539111158

SUPPORT, OUTER

$39.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539111162

SUPPORT ARM

$193.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539111167

SEAL, RUBBER

$27.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539111171

SEAL STRAP

$27.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539111187

NUT ½ -13, WHIZLK

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539111190

LATCH

$66.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539111267

BRACKET, SUPPORT

$11.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539990655

HCS 3/8-16 x 1½

$4.99

$

In Stock, only 2 left!

0

13

Husqvarna 539976978

NUT ¼-20 HEX NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

14

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 539977250

SPRING

$

$

Not available

16

Husqvarna 539990254

LOCKWASHER ½

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539990563

HCS 3/8-16 x 1

$1.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539990580

HCS ¼-20 x ¾

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539990613

NUT 3/8-16 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539990625

NUT ½-13 JAM
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

Husqvarna 539917150

DECAL, PATENT PENDING

Note: NOT SHOWN

$

$

Not available
