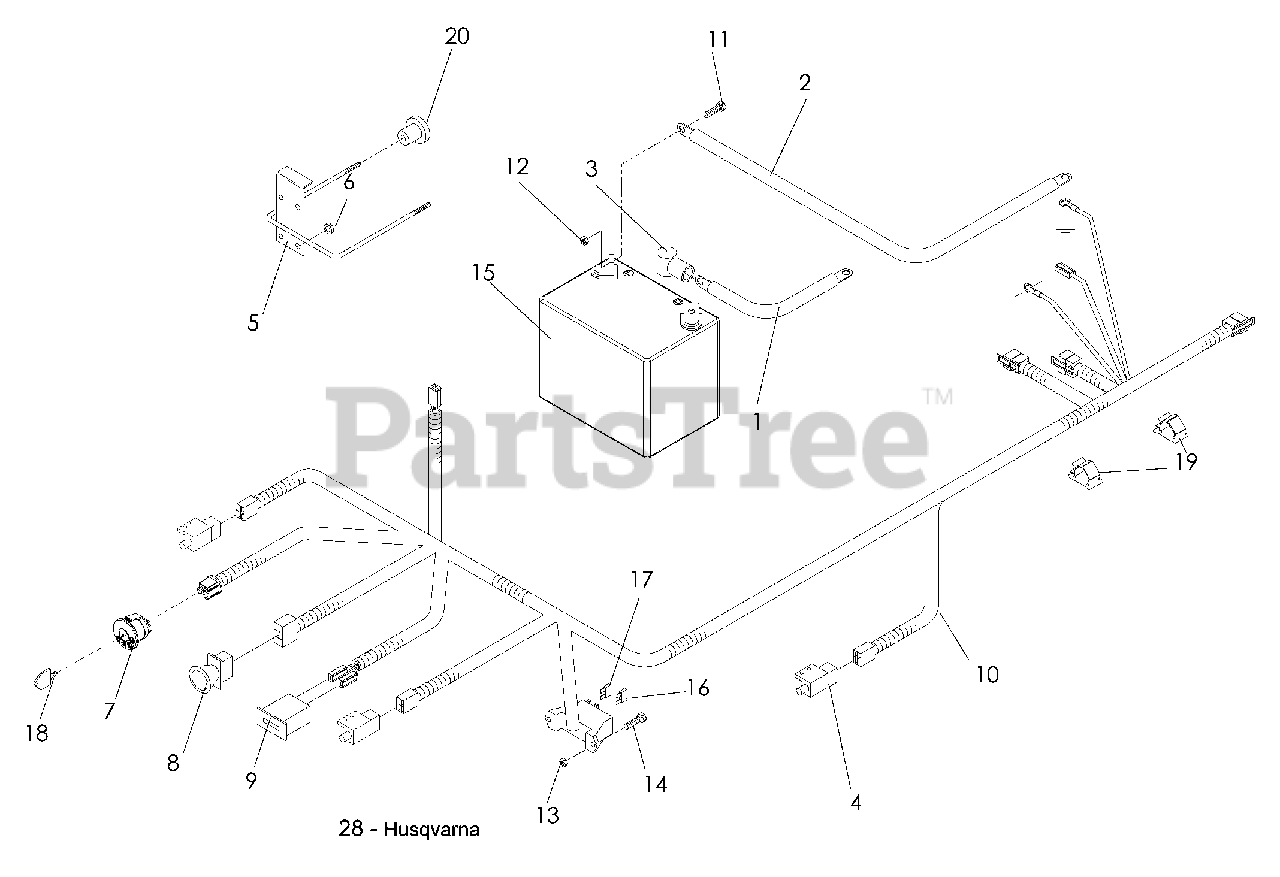

YTH 2348 (960450005-01) - Husqvarna 48" Yard Tractor (2008-02) Electrical Parts Diagram

48" Yard Tractor

Electrical Parts Diagram

  • Title

1

Husqvarna 539104974

CABLE, POSITIVE

$

$

Not available

2

Husqvarna 539102758

CABLE, NEGATIVE

$

$

Not available

3

Husqvarna 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

4

Husqvarna 539113792

SWITCH, INTERLOCK

$17.99

$

In Stock, Qty 12

0

5

Husqvarna 539105728

BATTERY HOLD DOWN

$

$

Not available

6

Husqvarna 539102587

BUMPER

$5.99

$

In Stock, Qty 15

0

7

Husqvarna 539107541

SWITCH, IGNITION
(Superseded to 532175566)

$26.99

$

In Stock, only 4 left!

0

8

Husqvarna 539131627

SWITCH, PTO
(Superseded to 597520401)

$100.99

$

In Stock, Qty 5

0

9

Husqvarna 539110074

METER, HOUR
(Superseded to 576179401)

$34.99

$

In Stock, Qty 6

0

10

Husqvarna 539113791

FRAME HARNESS

$

$

Not available

11

Husqvarna 539976934

HCS 5/16-18 x ¾
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 539976977

NUT 10-24, NYLOC

$

$

Not available

14

Husqvarna 539102617

SCREW 10-24 x 7/8

$3.99

$

In Stock, only 3 left!

0

15

Husqvarna 539102436

BATTERY, DRY
(Superseded to 579411601)

$

$

Not available

16

Husqvarna 539101771

FUSE, 7.5 AMP, 32V, ATO

$

$

Not available

17

Husqvarna 539102086

FUSE, 20 AMP, 32 V, ATO

$

$

Not available

18

Husqvarna 539107544

KEY, PADDED
(Superseded to 532140401)

$6.99

$

In Stock, Qty 7

0

19

Husqvarna 539110815

CLIP, PUSH MOUNT

$3.49

$

In Stock, only 1 left!

0

20

Husqvarna 539105169

KNOB

$9.49

$

Usually ships in 3-10 days
