YTH 2348 (960450005-00) - Husqvarna 48" Yard Tractor (2006-11) Seat Assembly Parts Diagram

48" Yard Tractor

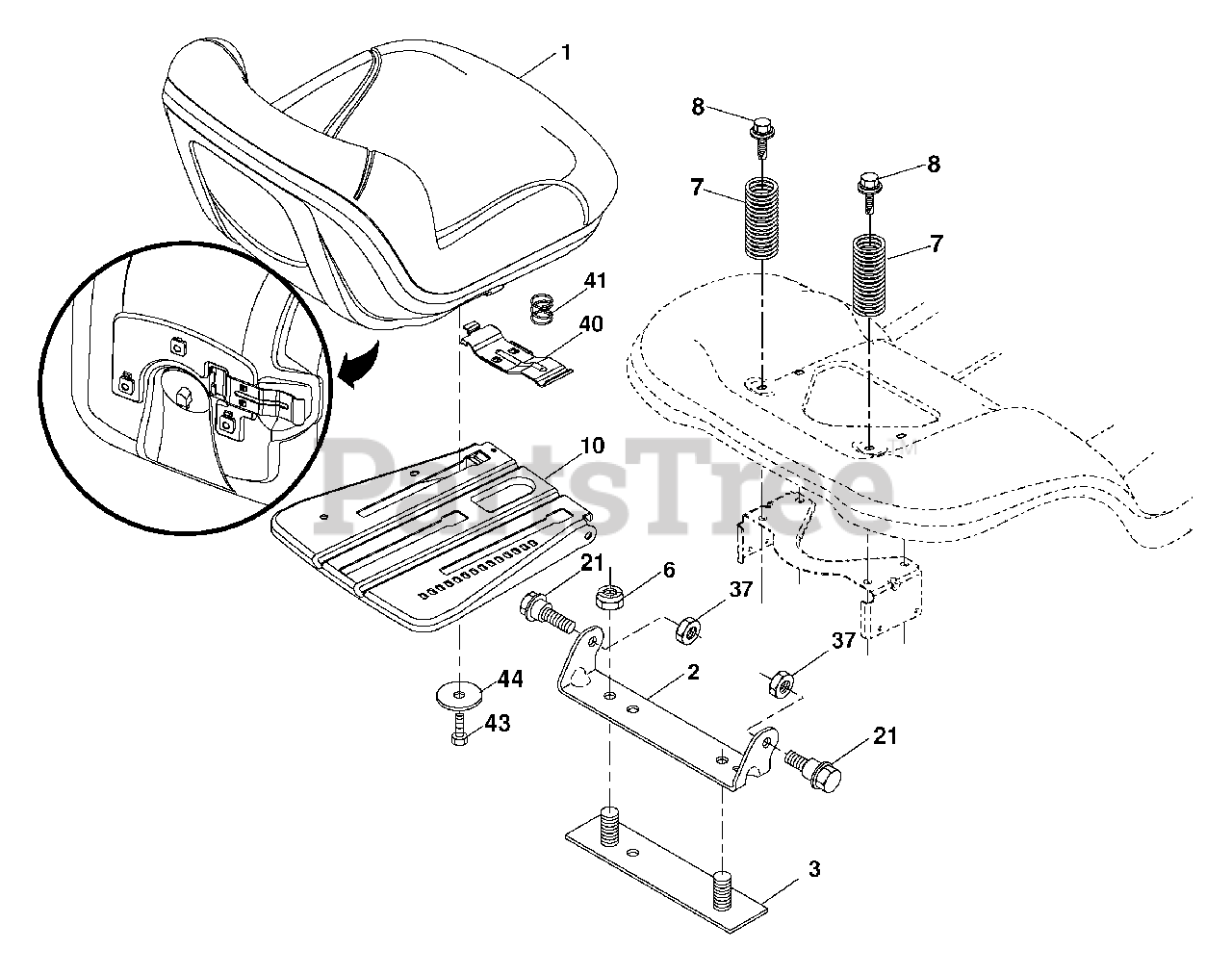

Seat Assembly Parts Diagram

  • Title

1

Husqvarna 532406621

Seat
(Superseded to 532439822)

$218.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532180166

Bracket Pivot Fender

$13.99

$

In Stock, only 1 left!

0

3

Husqvarna 532140675

Strap, Asm Fender

$6.99

$

Usually ships in 3-10 days

0

6

Husqvarna 873800600

Nut, Lock W/Ins. 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532124181

Spring, Seat Cprsn
(Superseded to 587613301)

$6.99

$

In Stock, only 3 left!

0

8

Husqvarna 532171877

Bolt 5/16-18 uncx 3/4 w/Sems

$7.49

$

In Stock, Qty 6

0

10

Husqvarna 532196977

Pan, Seat
(Superseded to 596768801)

$56.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532171852

Bolt, Shoulder 5/16-18
(Superseded to 587907801)

$4.99

$

In Stock, Qty 8

0

37

Husqvarna 873800500

Nut, Lock 5/16-18 unc

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532197661

Handle Slide Seat

$

$

Not available

41

Husqvarna 532198200

Spring Latch Seat

$6.49

$

Usually ships in 3-10 days

0

43

Husqvarna 874760612

Bolt 3/8-16 x 3/4

$4.99

$

In Stock, only 3 left!

0

44

Husqvarna 819133812

Washer 13/32 x 2-3/8 x 12 Ga.
(Superseded to 583789501)

$

$

Not available
