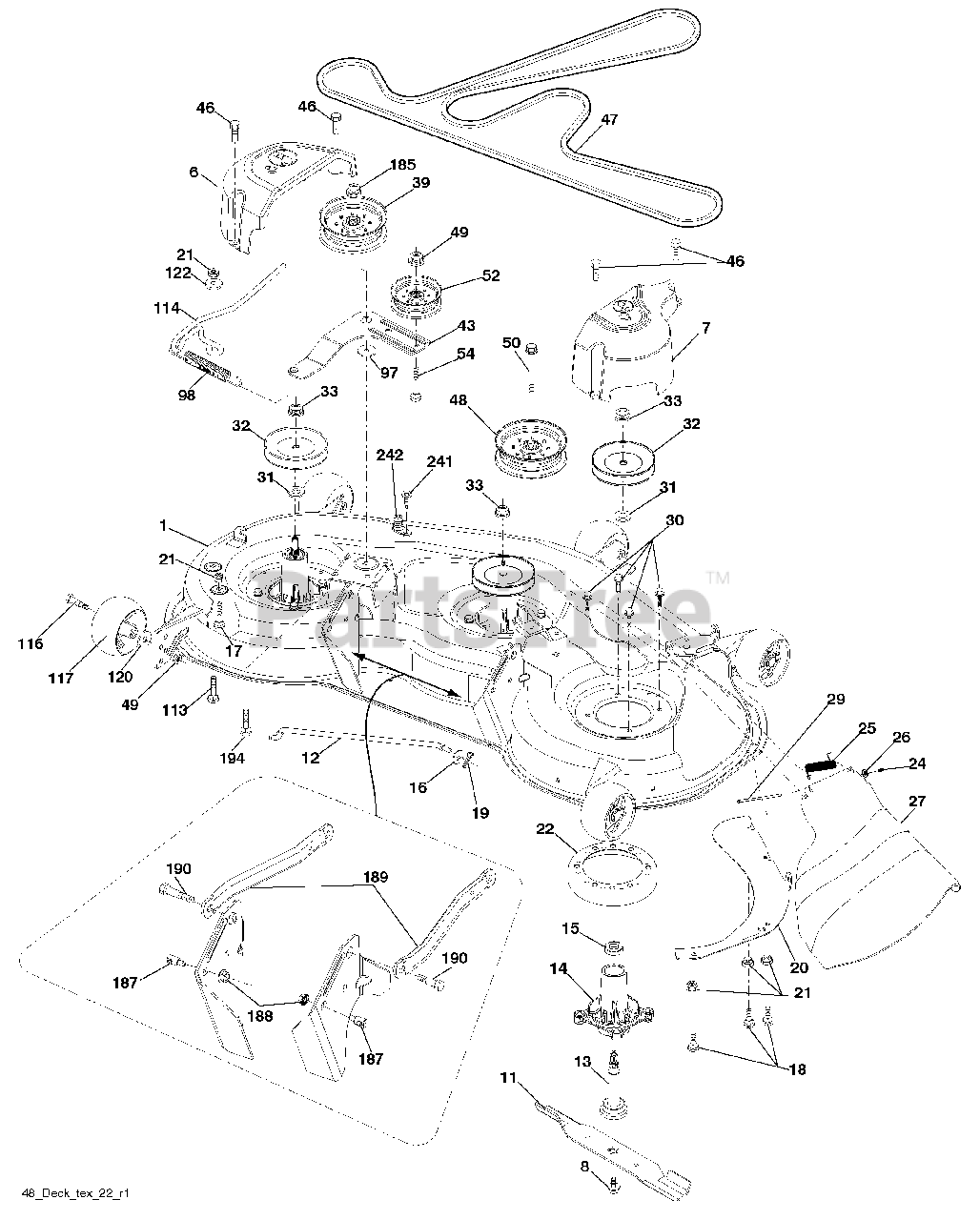

YTH 2348 (960430096-00) - Husqvarna 48" Yard Tractor (2009-10) Mower Deck Parts Diagram

48" Yard Tractor

Mower Deck Parts Diagram

  • Title

1

Husqvarna 532403582

Deck Weldment Mower
(Superseded to 532439818)

$683.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532197248

Cover Mandrel LH

$34.99

$

In Stock, only 2 left!

0

7

Husqvarna 532199102

Cover Mandrel RH
(Superseded to 587452401)

$20.99

$

In Stock, only 3 left!

0

8

Husqvarna 532193003

Bolt 7/16 Asm. Blade

$8.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532180054

Blade High Lift

$22.99

$

In Stock, Qty 20+

0

Husqvarna 532173921

Blade Mulching

$22.99

$

In Stock, only 4 left!

0

12

Husqvarna 532404851

Rod Anti-Sway

$26.99

$

In Stock, only 2 left!

0

13

Husqvarna 532187291

Shaft Asm. w/Lower Bearing

$28.99

$

In Stock, Qty 12

0

14

Husqvarna 532187281

Housing, Mandrel
(Superseded to 587819701)

$56.99

$

In Stock, Qty 17

0

15

Husqvarna 532110485

Bearing, Ball, Mandrel

$13.99

$

In Stock, Qty 11

0

16

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna 872110505

Bolt 5/16-18 x 5/8
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 872140505

Bolt RdHd 5/16-18 unc x 5/8
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 532194208

Pin Cotter 5/16 Bow Tie Lock

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532174378

Baffle Vortex

$14.99

$

Usually ships in 3-10 days

0

21

Husqvarna 873680500

Nut, Crownlock 5/16-18 unc
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532174493

Stripper Mandrel

$7.49

$

Usually ships in 3-10 days

0

24

Husqvarna 532105304

Cap Sleeve

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532178102

Spring, Torsion
(Superseded to 539107609)

$5.99

$

In Stock, Qty 20+

0

26

Husqvarna 532110452

Nut, Push

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532181707

Deflector Shield
(Superseded to 532180655)

$45.99

$

In Stock, only 4 left!

0

29

Husqvarna 532131491

Rod, Hinge
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Husqvarna 532173984

Screw, Thdroll Washer Head
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

31

Husqvarna 532187690

Washer, Spacer Mower Vented

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 532153532

Pulley, Mandrel
(Superseded to 532173435)

$22.99

$

In Stock, only 2 left!

0

33

Husqvarna 532400234

Nut, Flg. Top Lock
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

39

Husqvarna 532197380

Pulley, Idler, 4.50 Hub
(Superseded to 532196104)

$43.99

$

In Stock, Qty 14

0

43

Husqvarna 532196065

Arm, Idler

$15.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532137729

Screw, Thdroll. 1/4-20 x 5/8

$4.99

$

In Stock, Qty 20+

0

47

Husqvarna 532197242

Belt Deck Drive
(Superseded to 593773401)

$62.99

$

In Stock, Qty 7

0

48

Husqvarna 532197379

Pulley Idler 4.50 RAW
(Superseded to 532196106)

$39.99

$

In Stock, Qty 14

0

49

Husqvarna 873900600

Nut, Lock Flg. 3/8-16 unc
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

50

Husqvarna 817490636

Screw TT 3/8-16 x 2-1/4
(Superseded to 596564004)

$2.49

$

In Stock, Qty 5

0

52

Husqvarna 532193197

Pulley Idler 48" Primary
(Superseded to 532177968)

$31.99

$

In Stock, Qty 9

0

54

Husqvarna 872110612

Bolt Carr. Sh 3/8-16 x 1-1/2 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

97

Husqvarna 532178515

Washer Hardened

$6.99

$

Usually ships in 3-10 days

0

98

Husqvarna 532196105

Spring Drive

$7.99

$

In Stock, Qty 7

0

113

Husqvarna 872110508

Bolt Rdhd Sqnk 5/16-18 x 3/4

$4.99

$

Usually ships in 3-10 days

0

114

Husqvarna 532197451

Rod Tension Relief

$18.99

$

In Stock, only 1 left!

0

116

Husqvarna 532193406

Bolt, Shoulder
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

117

Husqvarna 532174873

Gauge Wheel
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

120

Husqvarna 819132012

Washer 13/32 x 1-1/4 x 12 Ga.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

122

Husqvarna 532187557

Bushing Tension Relief

$9.49

$

In Stock, only 1 left!

0

185

Husqvarna 873900700

Nut Lock Flange 7/16-14 Gr. 5

$7.49

$

In Stock, Qty 12

0

187

Husqvarna 532195161

Stud Fastener w/"D" Anti-Rotation

$

$

Not available

188

Husqvarna 873900500

Nut Lock Hex Flange
(Superseded to 583612701)

$

$

Not available

189

Husqvarna 532195185

Arm Susp. Mower Rear
(Superseded to 531169201)

$14.99

$

In Stock, Qty 5

0

190

Husqvarna 532196539

Bolt Shoulder

$7.49

$

In Stock, Qty 20+

0

194

Husqvarna 872140716

Bolt Carr Sqnk 7/16-24 x 2
(Superseded to 874490736)

$13.99

$

In Stock, only 4 left!

0

241

Husqvarna 532152927

Screw TT #10-32.5 3/8 Flange

$7.49

$

In Stock, only 2 left!

0

242

Husqvarna 532415598

Port, Washout

$8.99

$

In Stock, Qty 17

0

Husqvarna 532187292

Mandrel Assembly
(Superseded to 587820301)

Note: (Includes housing, shaft assembly, and bearing only - pulley/nut/washer and blade bolt/washers not included)

$56.99

$

In Stock, Qty 11

0

Husqvarna 532401238

Replacement Mower, Complete
(Superseded to 532439644)

$

$

Not available
