YTH 22V46 - Husqvarna 46" Yard Tractor (Original) SEAT Parts Diagram

46" Yard Tractor

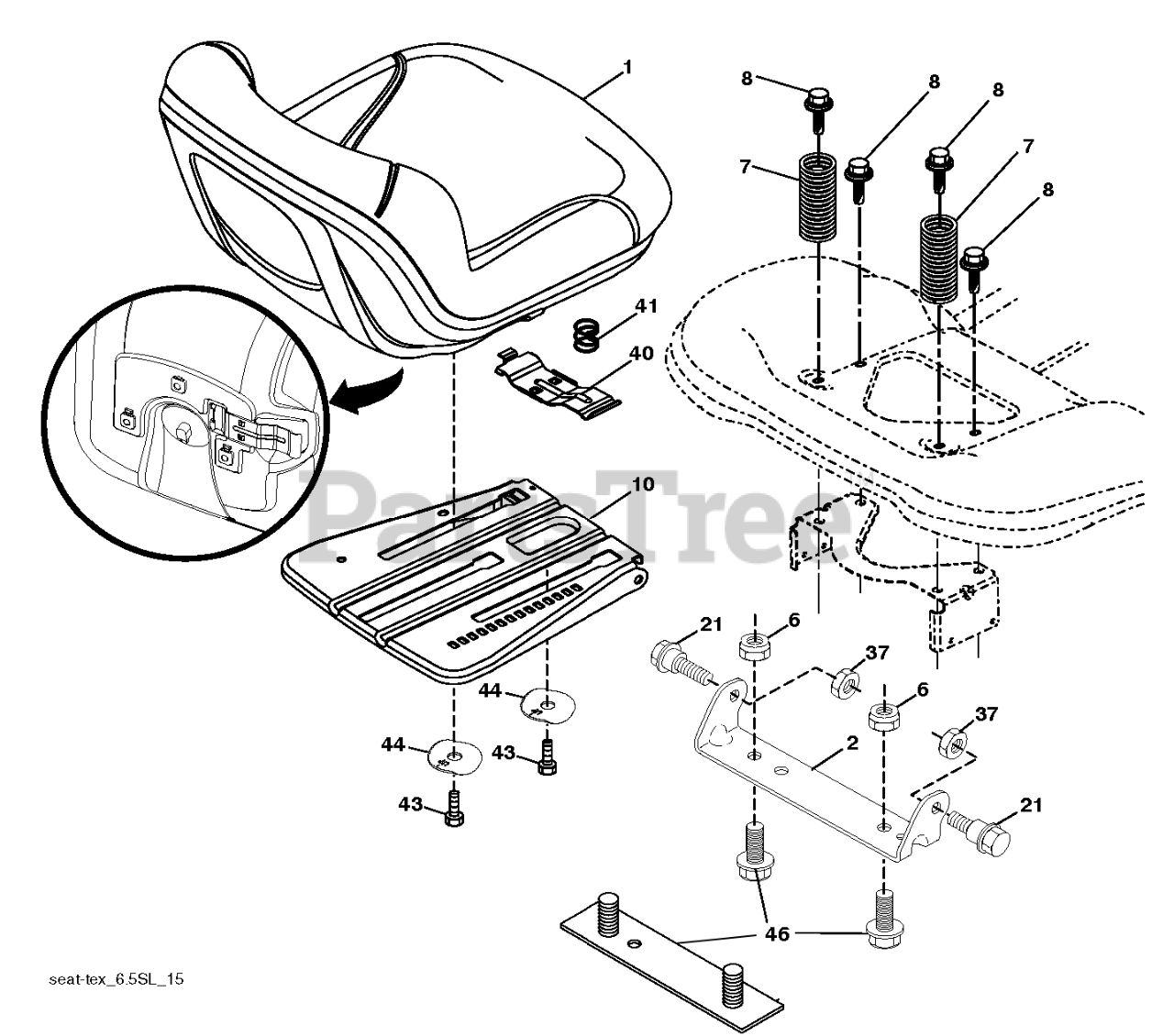

SEAT Parts Diagram

  • Title

2

Husqvarna 532180166

BRKT.PIVOT.FENDER

$13.99

$

In Stock, only 1 left!

0

7

Husqvarna 587613301

SPRING.COMPRESSION.SEAT.BLACK

Note: For all EXCEPT 96045006100, 96045006200, 96043025700, 96043027100

$6.99

$

In Stock, only 4 left!

0

43

Husqvarna 874760612

BOLT

$4.99

$

In Stock, only 3 left!

0

1

Husqvarna 532439822

SEAT.TH150.MS498.GRY.HUSQ.TEX

$218.99

$

Usually ships in 3-10 days

0

10

Husqvarna 596768801

KIT.PLATE.SEAT

$56.99

$

Usually ships in 3-10 days

0

37

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

Note: For all EXCEPT 96043021300, 96045006100, 96045006200, 96043025700, 96043027100

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 588090401

BOLT.3/8-16X1;1.25OD.WSHR.SEMS

$6.99

$

Usually ships in 3-10 days

0

40

Husqvarna 595088102

Handles

$5.99

$

In Stock, Qty 7

0

44

Husqvarna 501051801

WASHER.WINGED.3/8ID.1.5OD

$4.99

$

In Stock, only 1 left!

0

8

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 5

0

44

Husqvarna 583789501

WASHER.13/32x2 3/8x12GA

Note: For all EXCEPT 96045006100, 96045006200, 96043025700, 96043027100

$

$

Not available

6

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 587907801

BOLT.5/16-18X5/8.SHOULDER

$4.99

$

In Stock, Qty 8

0

37

Husqvarna 596583702

Nuts

$3.99

$

In Stock, Qty 20+

0

41

Husqvarna 532198200

SPRING.LATCH.SEAT.TEX

$6.49

$

Usually ships in 3-10 days

0

46

Husqvarna 532140675

STRAP

Note: For all EXCEPT 96045006100, 96045006200, 96043025700, 96043027100

$6.99

$

Usually ships in 3-10 days

0

7

Husqvarna 589483501

SPRING.COMPRESS.SEAT.TAPERED

$9.49

$

In Stock, only 2 left!

0
