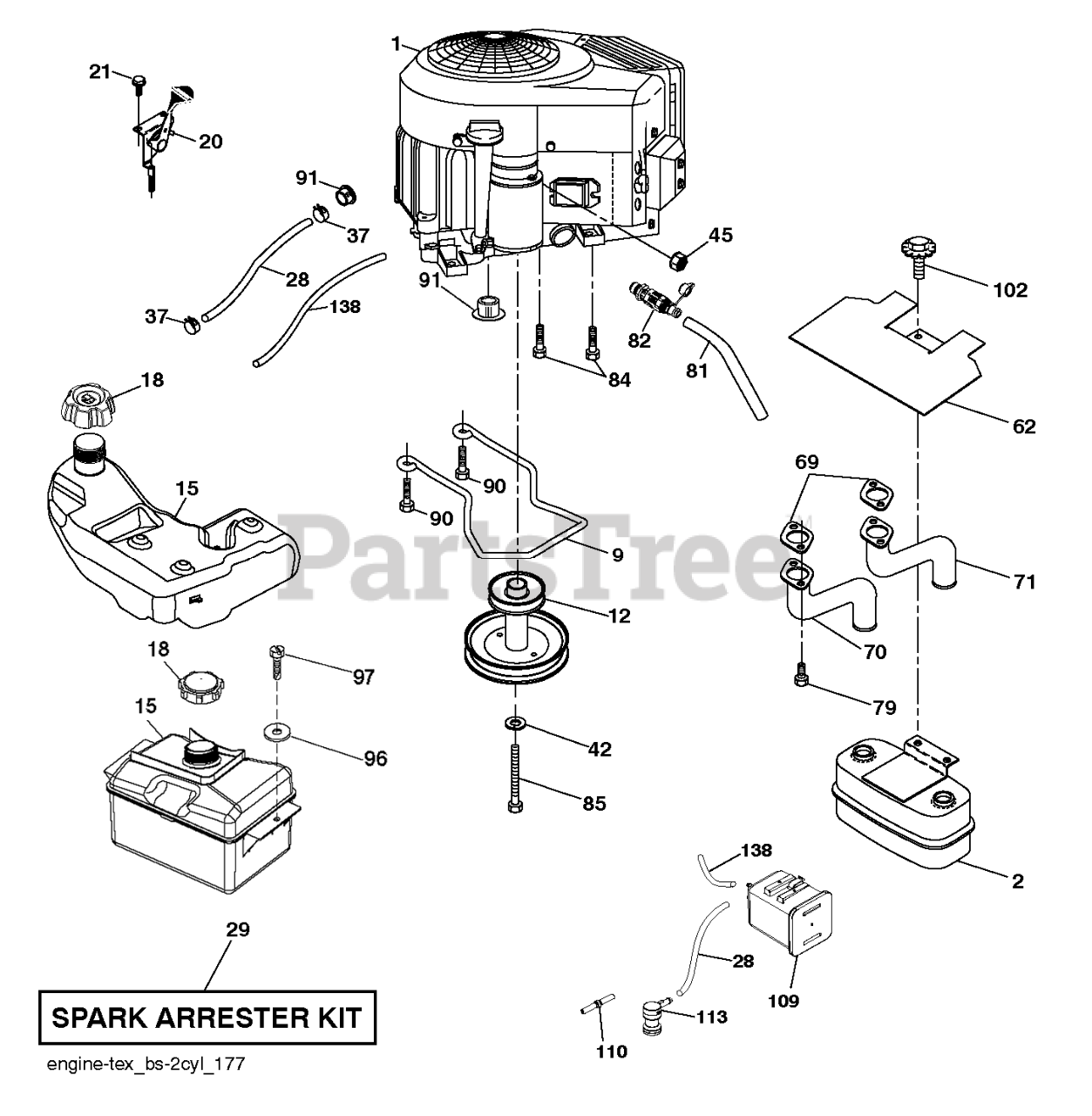

YTH 22V46 - Husqvarna 46" Yard Tractor (Original) ENGINE Parts Diagram

46" Yard Tractor

ENGINE Parts Diagram

  • Title
1

000000000

Note: For 96045006101, 96045006102, 96045006200, B&S Model No. 44N677-0065-G1(529581901)

$

$

Not available

1

000000000

Note: For 96043010101, BRIGGS MODEL 40H777-1458-B1

$

$

Not available

1

000000000

Note: For 96045004200, 96045004101, Engine B&S Model No. 407777-5198-G5 (581082101

$

$

Not available

1

000000000

Note: For 96043021300, ENGINE B&S MODEL NO. 44N677-0027-G1 (501709001)

$

$

Not available

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

15

Husqvarna 597954503

FUEL TANK

Note: Fits 2.75" filler neck. For 96043025700, 96045006100, 96045006101, 96045006102

$

$

Not available

71

Husqvarna 581881001

EXHAUST.TUBE.RH.B&S.TWIN.INTEK

$27.99

$

In Stock, only 1 left!

0

20

Husqvarna 587242501

THROTTLE.COBRA.38"READSTART.BK

Note: For 96043021300

$

$

Not available

2

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

Note: For 289630, 96043010100, 96043010101

$74.99

$

Usually ships in 3-10 days

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 2 left!

0

9

Husqvarna 501832602

KEEPER.BELT.ENG.4.25"2.BLT.431

Note: For 96045006100, 96045006200, 96043025700

$

$

Not available

96

Husqvarna 819091416

WASHER

Note: For 96045006102, 96045006101, 96045006100, 96045004500, 96045004100, 96043025700, 96043021300, 96043018100, 96043018101, 96043010100, 96043010101, 96043016100, 289630

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 586728901

PULLEY.ENGINE
(Superseded to 532405472)

$48.99

$

In Stock, only 1 left!

0

70

Husqvarna 581881101

EXHAUST.TUBE.LH.BS/TWIN

$44.99

$

In Stock, only 1 left!

0

96

Husqvarna 596135301

Washers

Note: For 96045006102, 96045006101, 96045006100, 96045004500, 96045004100, 96043025700, 96043021300, 96043018100, 96043018101, 96043010100, 96043010101, 96043016100, 289630

$3.99

$

In Stock, Qty 6

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

1

000000000

Note: For 96043016200, ENGINE B&S MODEL NO. 407777-3574-G5 (581082301)

$

$

Not available

18

Husqvarna 599502201

Fuel Caps

Note: Fits 2.75" filler neck. For 96045006200, 96043027100, 96045004101, 96045004200, 96043018500, 96045004800

$60.99

$

Usually ships in 3-10 days

0

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

Note: For all EXCEPT 96045006100, 96045006200, 96043025700, 96043027100

$4.99

$

In Stock, Qty 18

0

113

Husqvarna 532414127

VALVE.SLANT.CARTRDG.90 DEG.TEX

Note: For 96043016200, 96045004200, 96043018500, 96045004800, 96045004101, 96045006200, 96043027100

$

$

Not available

2

Husqvarna 589818701

MUFFLER.ASM.TWIN.MNTG.BRACKET
(Superseded to 589818702)

Note: For all EXCEPT 289630, 96043010100, 96043010101

$51.99

$

In Stock, only 1 left!

0

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 14

0

18

Husqvarna 529989703

FUEL CAP

Note: Fits 2.00" filler neck

$14.99

$

Usually ships in 3-10 days

0

1

000000000

Note: For 96045004100, ENGINE B&S MODEL 407777-3195-G5 (581081901)

$

$

Not available

79

Husqvarna 532183906

SCREW.SOCKET.HEAD.5/16-18

Note: For all EXCEPT 96045006100, 96045006200, 96043025700, 96043027100

$6.49

$

Usually ships in 3-10 days

0

110

Husqvarna 532414118

VALVE.ASM.ANTI-SLOSH

Note: For 96043016200, 96045004200, 96043018500, 96045004800, 96045004101, 96045006200, 96043027100

$27.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532420709

Tanks

Note: Fits 2.75" filler neck. For 96043016200, 96045004200, 96043018500, 96045004800

$376.99

$

Usually ships in 3-10 days

0

45

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 587382901

FUEL.CAP.ASM.2.25TETHRED.RATCH

Note: Fits 2.75" filler neck. For 96045006100, 96043025700, 96045006101, 96045006102

$18.99

$

In Stock, only 1 left!

0

138

Husqvarna 532420718

PURGE.LINE.36"REAR.CALIFORNIA

Note: For 96043016200, 96043018500, 96043027100, 96043016200, 96045006200, 96045004800, 96045004200, 96045004101

$10.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532423502

CONTROL.TH/CK.COBRA.B&S.TWN.BK

Note: For all EXCEPT 96043021300

$30.99

$

In Stock, only 1 left!

0

15

Husqvarna 532420707

Tanks

Note: Fits 2.75" filler neck. For 96045004101

$205.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532433006

Tanks

Note: Fits 2.75" filler neck. For 96043016100, 96045004100, 96043018101, 96043021300

$

$

Not available

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, only 2 left!

0

15

Husqvarna 599837601

FUEL TANKS

Note: Fits 2.75" filler neck. For 96043027100

$364.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

Note: For all EXCEPT 96045006100, 96043025700, 96043027100

$

$

Not available

15

Husqvarna 597954501

FUEL TANKS

Note: Fits 2.75" filler neck. For 96045006101, 96045004500, 96043018100, 96043018101, 96045004100, 96043025700, 96043021300, 96043016100, 96045006102, 96045006100

$

$

Not available

1

000000000

Note: For 96043016100, 96045004100, ENGINE B&S MODEL NO. 407777-3195-G5

$

$

Not available

1

000000000

Note: ENGINE B&S MODEL 44N677-0005-G1 (587639101)

$

$

Not available

1

000000000

Note: For 96043018101, ENGINE B&S MODEL 40H777-1575-G5 (442152)

$

$

Not available

12

Husqvarna 532405472

RP_PULLEY ENGINE

$48.99

$

In Stock, only 1 left!

0

1

000000000

Note: For 96043018500, ENGINE B&S MODEL NO. 44R677-0014-G1 (585925901)

$

$

Not available

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

102

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, only 4 left!

0

102

Husqvarna 537171877

BOLT 5/1618UNC X 3/4 W/ SEMS
(Superseded to 532171877)

Note: For 96043016100, 96043016200, 96045004100, 96045004200

$7.49

$

In Stock, only 4 left!

0

84

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

28

Husqvarna 587044822

HOSE.1/4".LOW.PERM.FUEL.LN.22"

$11.99

$

In Stock, Qty 10

0

138

Husqvarna 596941501

TUBE.PURGE.FUEL.1875

Note: For 96043016100, 96045004100, 96045004500, 96043018100, 96045006101, 96045006102, 96045006200, 96045006100, 96043027100, 96043018500, 96043016200, 96043021300, 96045004200, 96045004800, 96045004101

$2.49

$

Usually ships in 3-10 days

0

138

Husqvarna 587044580

Hoses

Note: For 96043016100, 96045004100, 96045004500, 96043018100, 96045006101, 96045006102, 96045006200, 96045006100, 96043027100, 96043018500, 96043016200, 96043021300, 96045004200, 96045004800, 96045004101

$11.99

$

In Stock, only 1 left!

0

18

Husqvarna 532439208

CAP.ASM.FL.RITCH.3"E10.SYM.498

Note: Fits 2.75" filler neck. For 96043016200, 96045004200, 96043018500, 96045004800, 96045004101

$53.99

$

Usually ships in 3-10 days

0

$3.99

$

In Stock, Qty 15

0

69

Husqvarna 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

109

Husqvarna 532414114

CANNISTER, CARBON

Note: For 96043016200, 96045004200, 96043018500, 96045004800, 96045004101, 96045006200, 96043027100

$62.99

$

Usually ships in 3-10 days

0

15

Husqvarna 598703301

FUEL TANK

Note: Fits 2.75" filler neck. For 96045006200, 96045004200, 96043018500, 96045004800, 96043027100, 96045006200, 96045004101

$267.99

$

Usually ships in 3-10 days

0

85

Husqvarna 501606501

BOLT.HEX.7/16-20X4.GR5.1.5BLUE

$4.99

$

In Stock, only 1 left!

0

28

Husqvarna 532401137

LINE.FUEL.20"FRONT.EMI
(Superseded to 587044822)

$11.99

$

In Stock, Qty 10

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

Note: For all EXCEPT 96045006100, 96045006200, 96043025700, 96043027100

$

$

Not available

15

Husqvarna 581290101

TANK.ASSEMBL.2.5GAL.NON-EPA

Note: Fits 2.75" filler neck. For 96043010100, 289630, 96043010101

$120.99

$

In Stock, only 1 left!

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 5

0

$11.99

$

In Stock, Qty 5

0

42

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 598703202

FUEL TANKS

Note: Fits 2.75" filler neck. For 96043016200, 96045004200, 96043018500, 96045004800, 96043027100, 96045006200, 96045004101

$460.99

$

Usually ships in 3-10 days

0

91

Husqvarna 532187495

BUSHING.1.375OD

Note: For 96043016200, 96045004200, 96043018500, 96045004800, 96045004101, 96045006200, 96043027100

$6.49

$

In Stock, only 1 left!

0

18

Husqvarna 581176101

CAP.FUEL.2 WAY VENT

Note: Fits 2.75" filler neck. For 96043016100, 96045004100, 96045004500, 96043018100, 96043021300, 96043018101

$53.99

$

In Stock, only 1 left!

0

1

000000000

Note: For 96045004500, Engine B&S Model No.44R677-0004-G1 (585700401)

$

$

Not available

18

Husqvarna 581075501

CAP.2.25'.VENTED.RATCHET.EPA

Note: Fits 2.75" filler neck. For 96043010100, 289630, 96043010101

$26.99

$

Usually ships in 3-10 days

0

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

Note: For all EXCEPT 96043016200, 96045004200, 96043018500, 96045004800, 96045004101, 96045006200, 96043027100

$6.49

$

In Stock, only 2 left!

0

1

000000000

Note: For 96043018100, 96045004800, 96045006100, 96043025700, 96043027100, ENGINE B&S MODEL NO. 44N677-0005-G1 (587639101)

$

$

Not available

1

000000000

Note: For 289630, ENGINE BRIGGS MODEL NO. 407777-1195-B1

$

$

Not available

15

Husqvarna 597954502

FUEL TANKS

Note: Fits 2.75" filler neck. For 96045006101, 96045004500, 96043018100, 96043018101, 96045004100, 96043025700, 96043021300, 96043016100, 96045006102, 96045006100

$125.99

$

Usually ships in 3-10 days

0

$3.99

$

In Stock, only 2 left!

0

28

Husqvarna 587044864

HOSE 1/4" LOW PERMEATION FUEL

Note: For 96043016200, 96045004200, 96043018500, 96045006200, 96045004800, 96045004101, 96043027100

$20.99

$

In Stock, only 2 left!

0
