YTH 22V46 - Husqvarna 46" Yard Tractor (Original) ELECTRICAL Parts Diagram

46" Yard Tractor

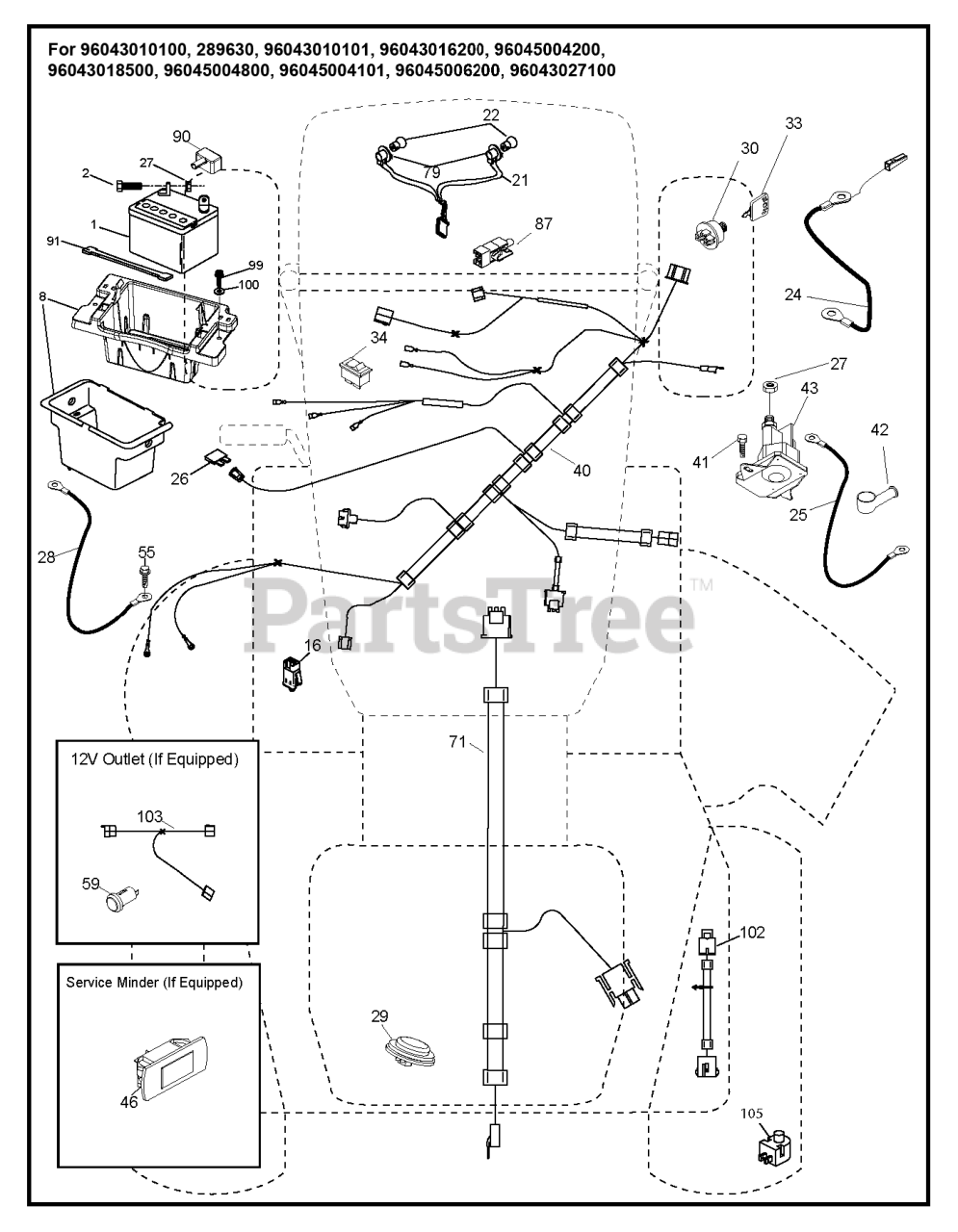

ELECTRICAL Parts Diagram

  • Title

42

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

30

Husqvarna 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$22.99

$

Usually ships in 3-10 days

0

27

Husqvarna 596133601

Hardware

Note: For 96045006200, 96043027100

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 501133001

HARNESS.IGN.DASH.CBL.YTGT.PRED

Note: For 96045006200, 96043027100

$74.99

$

In Stock, only 1 left!

0

16

Husqvarna 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 5

0

46

Husqvarna 586161801

GUAGE.SRVCMNDR.HRMTR.
(Superseded to 594919101)

Note: For all EXCEPT 96045006200, 96043027100

$24.99

$

In Stock, Qty 5

0

1

Husqvarna 532163465

Battery 12 Volt 25 Amp
(Superseded to 532123899)

$194.99

$

In Stock, only 2 left!

0

79

Husqvarna 532175242

BULB HOLDER ASM.

$18.99

$

Usually ships in 3-10 days

0

105

Husqvarna 532407568

REVERSE SWITCH

$18.99

$

In Stock, only 2 left!

0

34

Husqvarna 532110712

SWITCH LT

$9.49

$

In Stock, only 2 left!

0

8

Husqvarna 586365702

TRAY.BATTERY.FRNT.CARB W/SNAPS

Note: For 96045004800

$169.99

$

Usually ships in 3-10 days

0

8

Husqvarna 587205101

TRAY.BATTERY BOX.FRONT

Note: For 96045004101

$17.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532435395

COVER.TERMINAL.BATTERY

$6.49

$

In Stock, only 2 left!

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, only 1 left!

0

102

Husqvarna 532404454

HARNESS PIGTAIL PCH TEX ROS

$26.99

$

Usually ships in 3-10 days

0

25

Husqvarna 585555501

CABLE.STARTER.8GA.17.5

$9.49

$

In Stock, only 2 left!

0

21

Husqvarna 532400252

HARNESS.LIGHT W/4152J BULBS

Note: For all EXCEPT 96043010100

$34.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532416588

CABLE.GROUND.21"BLK.8GA.90T

Note: For 96045004101, 96045006200, 96043027100

$13.99

$

In Stock, only 2 left!

0

28

Husqvarna 532145491

CABLE GROUND 6 GA 21" 90T BLK

Note: For 96043016200, 96045004200, 96043018500, 96045004800

$10.99

$

Usually ships in 3-10 days

0

41

Husqvarna 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 594919101

GUAGE.SRVCMNDR.HRMTR.

Note: For 96045006200, 96043027100

$24.99

$

In Stock, Qty 5

0

43

Husqvarna 582042802

Solenoids

Note: For 96045006200, 96043027100

$26.99

$

In Stock, Qty 16

0

40

Husqvarna 532401098

HARNESS IGN. DASH

Note: For all EXCEPT 96045006200, 96043027100

$120.99

$

Usually ships in 3-10 days

0

91

Husqvarna 532190270

STRAP.BATTERY.MOUNT.FRONT(2 2)

Note: For 96043016200, 96045004200, 96043018500

$9.99

$

In Stock, Qty 13

0

26

Husqvarna 532175158

FUSE 20AMP

$7.49

$

In Stock, only 1 left!

0

21

Husqvarna 532183759

HARNESS ASSY LIGHT

Note: For 96043010100

$47.99

$

Usually ships in 3-10 days

0

100

Husqvarna 819091416

WASHER

Note: For 96043016200, 96045004200, 96043018500, 96045004800, 96045004101

$6.49

$

Usually ships in 3-10 days

0

43

Husqvarna 582042801

SOLENOID.STARTER.BRASS.PLUNGER
(Superseded to 582042802)

Note: For all EXCEPT 96045006200, 96043027100

$26.99

$

In Stock, Qty 16

0

8

Husqvarna 532193228

BOX.BATTERY.MNT.REAR.L

Note: For 96043010100, 289630, 96043010101

$28.99

$

In Stock, only 1 left!

0

71

Husqvarna 532400449

HARNESS.IGN.CHASS.TEX.REAR.BAT

Note: For 96043010100, 289630, 96043010101

$40.99

$

Usually ships in 3-10 days

0

100

Husqvarna 596135301

Washers

Note: For 96045006200, 96043027100

$3.99

$

In Stock, Qty 6

0

22

Husqvarna 532004152

LIGHTBULB

$4.99

$

Usually ships in 3-10 days

0

55

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 585555601

CABLE.FRBATT.W/WIRE.8GA.8

Note: For all EXCEPT 96043010100, 289630, 96043010101

$9.49

$

Usually ships in 3-10 days

0

87

Husqvarna 532197802

SWITCH.INTRLCK.CLUTCH.

$18.99

$

In Stock, Qty 7

0

29

Husqvarna 532401545

SWITCH.SEAT.DELTA.OPC.

$39.99

$

In Stock, Qty 6

0

8

Husqvarna 532414126

TRAY.ASM.BATTERY.FRT.TEX.CARB

Note: For 96043016200, 96045004200, 96043018500, 96045006200, 96043027100

$40.99

$

In Stock, only 1 left!

0

99

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

Note: For all EXCEPT 96043010100, 289630, 96043010101

$6.49

$

In Stock, only 2 left!

0

27

Husqvarna 873510400

NUT
(Superseded to 873680400)

Note: For all EXCEPT 96045006200, 96043027100

$4.99

$

In Stock, Qty 15

0

33

Husqvarna 532411933

KEY.CHAIN.BLISTER.PACK.GEN.USA
(Superseded to 532411935)

$10.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532198885

CABLE.BLACK.18"REAR.BA

Note: For 96043010100, 289630, 96043010101

$30.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532194276

HARNESS-CHASSIS SUB

Note: For all EXCEPT 96043010100, 289630, 96043010101

$40.99

$

Usually ships in 3-10 days

0
