YTH 2248 (954571977) - Husqvarna 48" Yard Tractor (2004-06) ELECTRICAL Parts Diagram

48" Yard Tractor

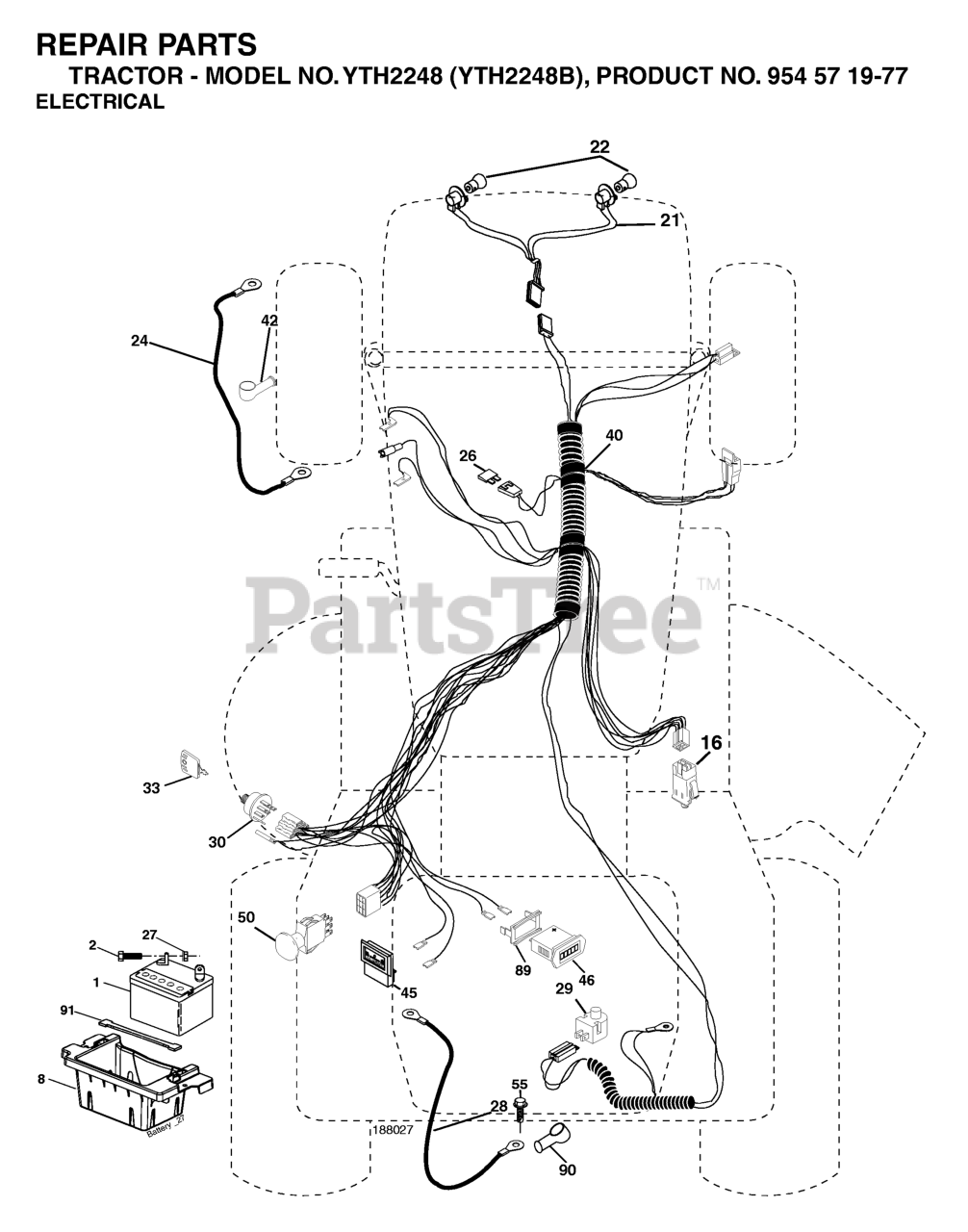

ELECTRICAL Parts Diagram

  • Title

21

Husqvarna 532183759

HARNESS ASSY LIGHT

$47.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532121305

RP.SWITCH.PLUNGER.NC.GRAY
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

55

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532188027

HARNESS.IGN.ELCL.LT.NO.RELAY

$

$

Not available

33

Husqvarna 532140401

KEY MLD GEN DELTA

$6.99

$

In Stock, Qty 9

0

89

Husqvarna 532169639

BRACKET SNAP-IN HOURMETER

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532186491

BOX.BATTERY.MOUNT.FRONT.LT

$

$

Not available

30

Husqvarna 532175566

IGNITION SWITCH

$26.99

$

In Stock, Qty 7

0

46

Husqvarna 532169635

HOUR METER
(Superseded to 532169642)

$103.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532178909

CABLE.BATTERY.6GA.RED

$26.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532154336

COVER.TERMINAL.RED

$8.99

$

In Stock, only 2 left!

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$7.49

$

In Stock, only 1 left!

0

50

Husqvarna 532174651

RP.PTO.SWITCH.8 TERMINAL.BLACK
(Superseded to 582107601)

$28.99

$

In Stock, Qty 7

0

28

Husqvarna 532145491

CABLE GROUND 6 GA 21" 90T BLK

$10.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532122822

AMMETER

$20.99

$

In Stock, only 1 left!

0

16

Husqvarna 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 7

0

1

Husqvarna 532144927

BATTERY 12V .35 AMP
(Superseded to 532125603)

$194.99

$

In Stock, only 1 left!

0

22

Husqvarna 532004152

LIGHTBULB

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0

26

Husqvarna 532175158

FUSE 20AMP

$7.49

$

In Stock, only 2 left!

0

91

Husqvarna 532190270

STRAP.BATTERY.MOUNT.FRONT(2 2)

$9.99

$

In Stock, Qty 13

0

90

Husqvarna 532180449

COVER TERMINAL
(Superseded to 532435395)

$6.49

$

In Stock, only 2 left!

0
