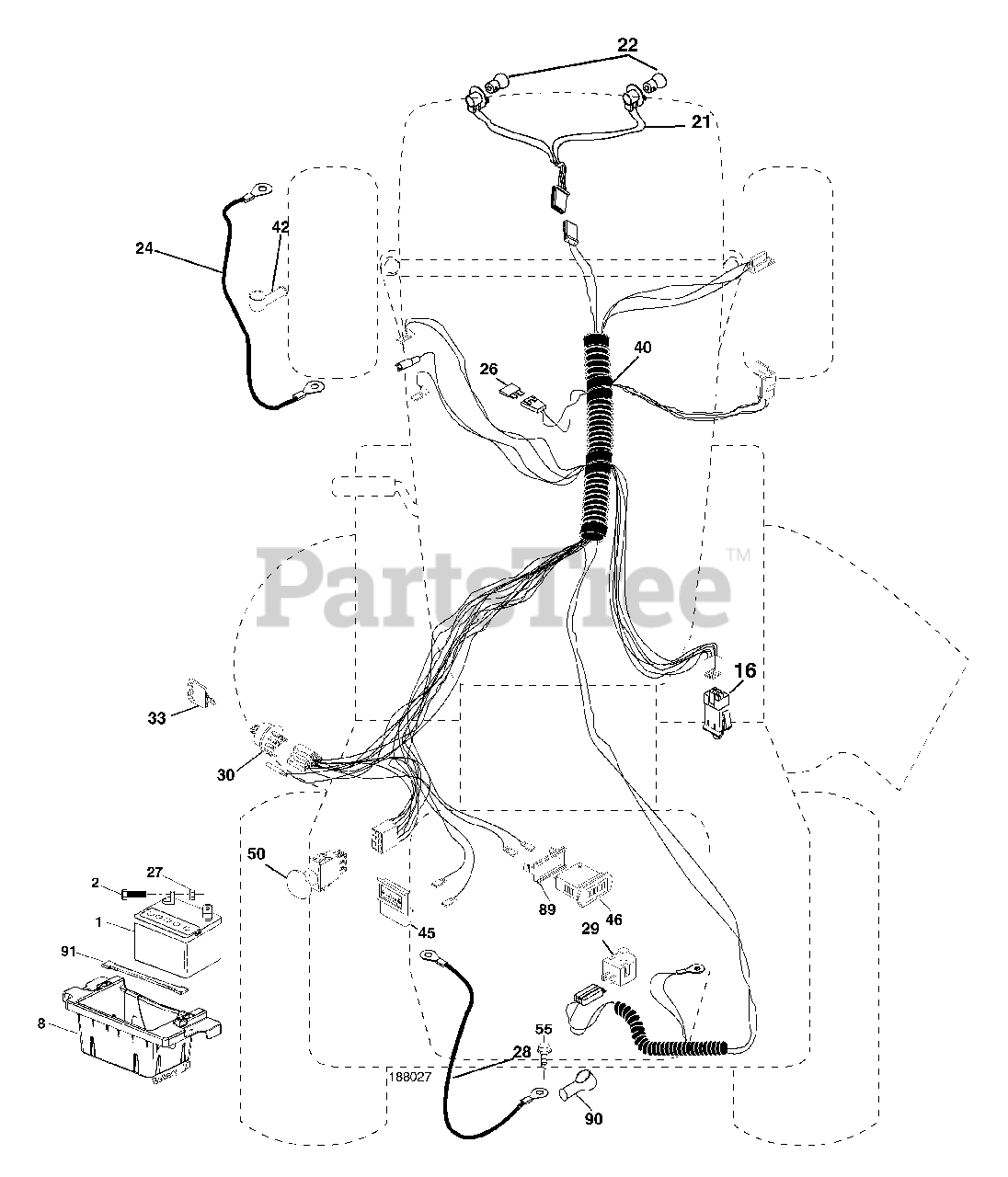

YTH 2248 (954571977-B) - Husqvarna 48" Yard Tractor (2004-06) Electrical Parts Diagram

48" Yard Tractor

Electrical Parts Diagram

  • Title

1

Husqvarna 532144927

Battery 12 Volt 35 AMP
(Superseded to 532125603)

$194.99

$

In Stock, only 1 left!

0

2

Husqvarna 874760412

Bolt Hex Hd 1/4-20 unc x 3/4

$7.49

$

In Stock, only 1 left!

0

8

Husqvarna 532186491

Box Battery

$

$

Not available

16

Husqvarna 532176138

Switch Interlock

$22.99

$

In Stock, Qty 7

0

21

Husqvarna 532183759

Harness Asm Light W/4152j

$47.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532004152

Bulb Light #1156

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532178909

Cable Battery

$26.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532175158

Fuse

$7.49

$

In Stock, only 2 left!

0

27

Husqvarna 873510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0

28

Husqvarna 532145491

Cable Ground 6 Ga 21" black

$10.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532121305

Switch Plunger Nc Gray
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

30

Husqvarna 532175566

Switch Ign

$26.99

$

In Stock, Qty 7

0

33

Husqvarna 532140401

Key Ign Molded Generic

$6.99

$

In Stock, Qty 9

0

40

Husqvarna 532188027

Harness Ign.

$

$

Not available

42

Husqvarna 532154336

Cover Terminal Red

$8.99

$

In Stock, only 2 left!

0

45

Husqvarna 532122822

Ammeter Rectangular 15 Amp

$20.99

$

In Stock, only 1 left!

0

46

Husqvarna 532169635

Meter Hour
(Superseded to 532169642)

$103.99

$

Usually ships in 3-10 days

0

50

Husqvarna 532174651

Switch PTO
(Superseded to 582107601)

$28.99

$

In Stock, Qty 7

0

55

Husqvarna 817490508

Screw Thdrol 5/16-18 x 1-1/2 Tyt
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

89

Husqvarna 532169639

Bracket Snap-In Hourmeter

$6.49

$

Usually ships in 3-10 days

0

90

Husqvarna 532180449

Cover Terminal Battery
(Superseded to 532435395)

$6.49

$

In Stock, only 2 left!

0

91

Husqvarna 532190270

Strap Battery

$9.99

$

In Stock, Qty 13

0
