YTH 2242 TDF (960410173-00) - Husqvarna 42" Yard Tractor (2010-02) ENGINE Parts Diagram

42" Yard Tractor

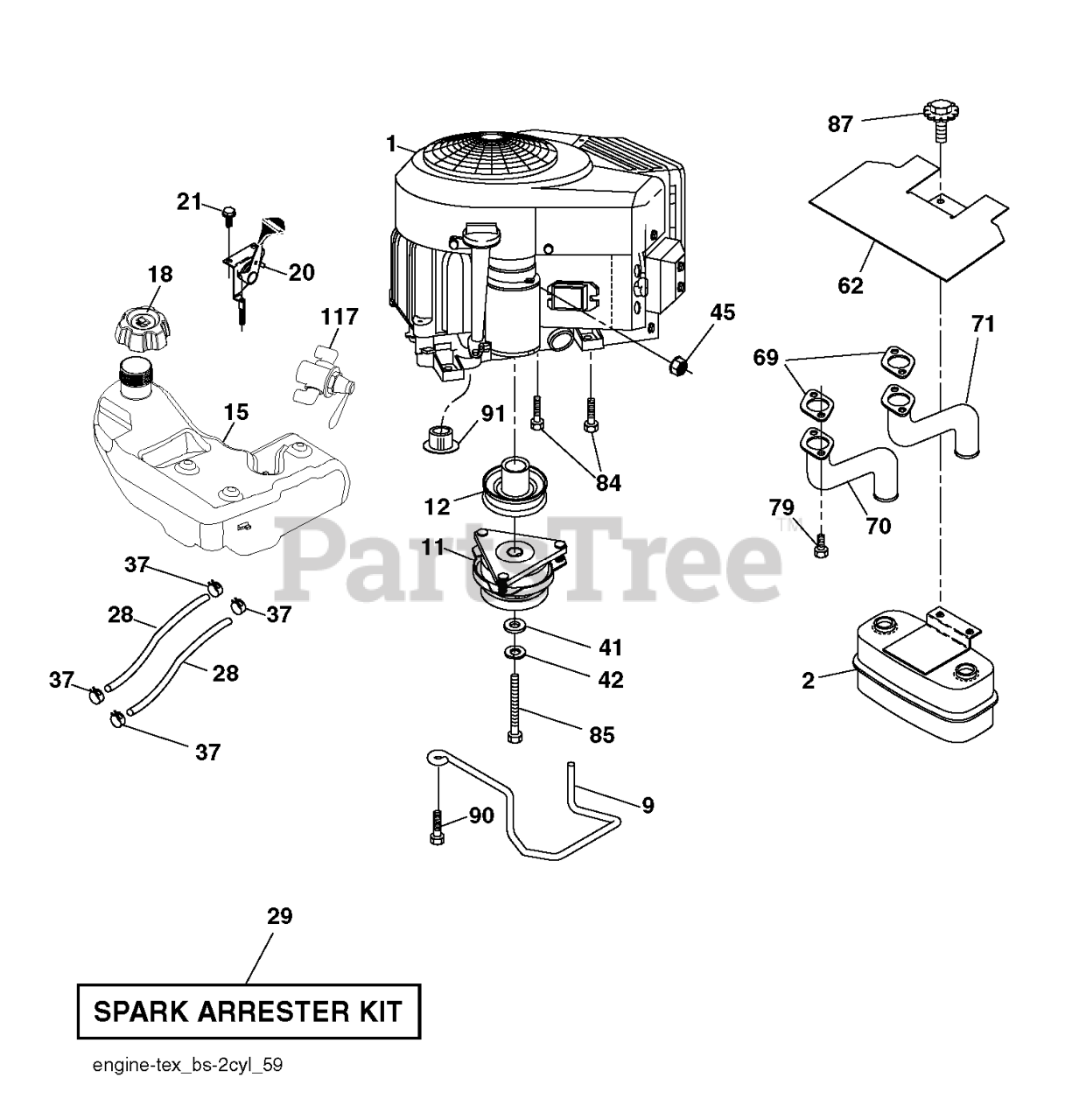

ENGINE Parts Diagram

  • Title

28

Husqvarna 532142158

REPL BY 532 00 85-43
(Superseded to 587044854)

$17.99

$

In Stock, only 2 left!

0

79

Husqvarna 532183906

SCREW.SOCKET.HEAD.5/16-18

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532422804

TANK FUEL

$206.99

$

Usually ships in 3-10 days

0

91

Husqvarna 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 1 left!

0

87

Husqvarna 537171877

BOLT 5/1618UNC X 3/4 W/ SEMS
(Superseded to 532171877)

$7.49

$

In Stock, Qty 5

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

9

Husqvarna 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 584908001)

$

$

Not available

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

41

Husqvarna 532126197

WASHER

$8.99

$

In Stock, only 3 left!

0

117

Husqvarna 532420828

VALVE FUEL RESERVE

$47.99

$

In Stock, only 2 left!

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532160589

EXHAUST.TUBE.RH.BS/TWIN
(Superseded to 581881001)

$27.99

$

In Stock, only 1 left!

0

18

Husqvarna 532430217

RP CAP FUEL
(Superseded to 584248702)

$17.99

$

In Stock, only 1 left!

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

1

000000000

Note: Engine Briggs Model No. 40H777-1421-B1

$

$

Not available

20

Husqvarna 532423502

CONTROL.TH/CK.COBRA.B&S.TWN.BK

$30.99

$

In Stock, only 1 left!

0

69

Husqvarna 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

84

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

2

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532159955

RP.EXHAUST.TUBE.LH.BS/TWIN
(Superseded to 581881101)

$44.99

$

In Stock, only 1 left!

0

12

Husqvarna 532405097

PULLEY.ENGINE.TUFFTORQ

$100.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532400008

CLUTCH.ELECTRIC.LT.48"*
(Superseded to 532414336)

$399.99

$

In Stock, only 1 left!

0

85

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0
