YTH 2242 TDF (960410173-00) - Husqvarna 42" Yard Tractor (2010-02) CHASSIS & ENCLOSURES Parts Diagram

42" Yard Tractor

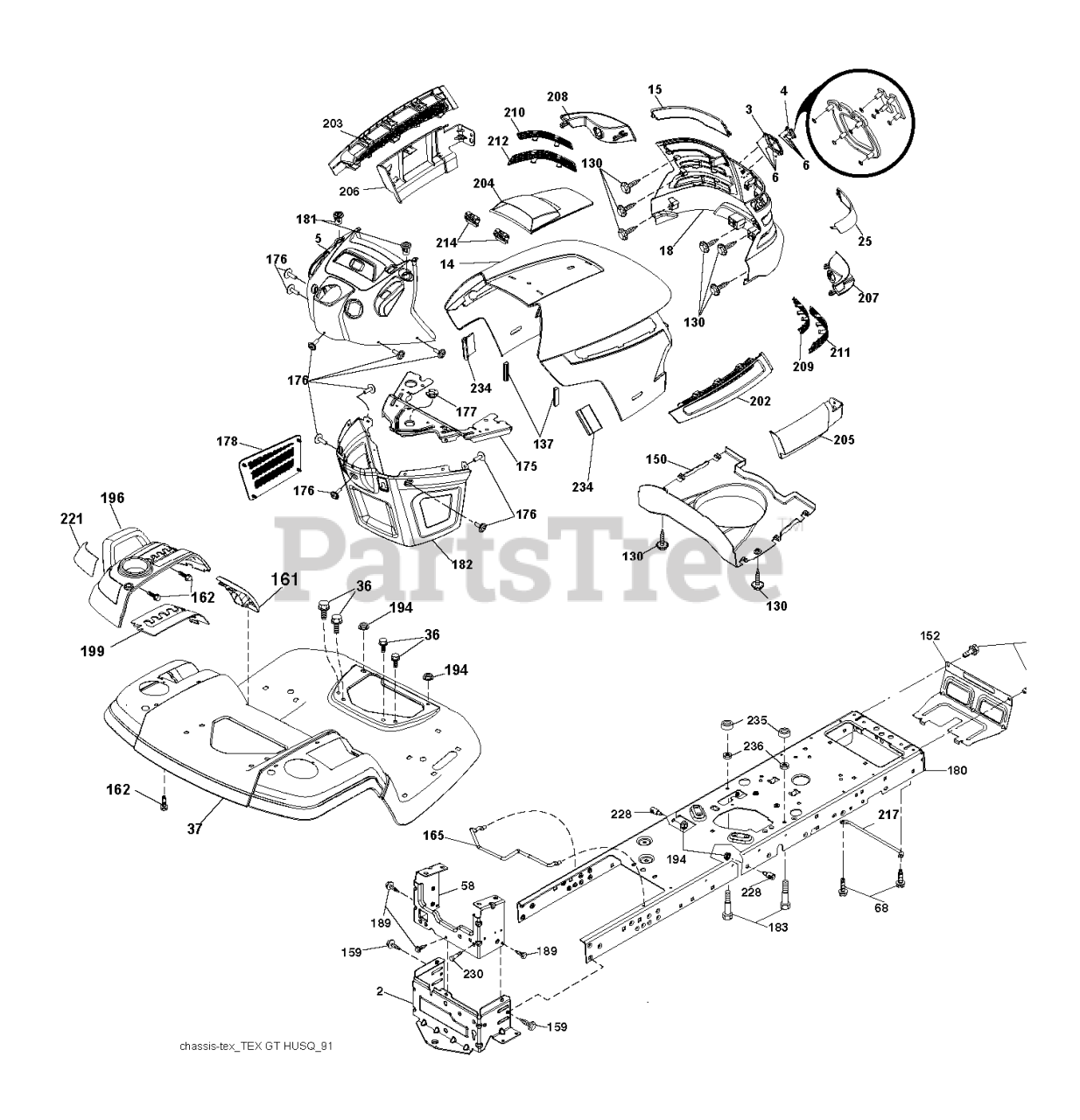

CHASSIS & ENCLOSURES Parts Diagram

  • Title

202

Husqvarna 532403048

VENT.SIDE.HOOD.HUSQ.RH.GREY

$

$

Not available

176

Husqvarna 532400776

SCREW.#10-24X5/8.RN.QU

$10.99

$

Usually ships in 3-10 days

0

180

Husqvarna 532194260

CHASSIS.STAMPING.LT/GT
(Superseded to 582033101)

$341.99

$

Usually ships in 3-10 days

0

175

Husqvarna 532196304

PLATE.CROSSMEMBER.HUSQ
(Superseded to 590607702)

$39.99

$

Usually ships in 3-10 days

0

228

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

221

Husqvarna 532198909

REFLECTOR.LH.TEX GT HU

$20.99

$

In Stock, only 2 left!

0

208

Husqvarna 532197199

BEZEL.LH.TEX.GT.HUSQ

$

$

Not available

177

Husqvarna 532195227

BUSHING, STEERING

$6.99

$

In Stock, Qty 20+

0

199

Husqvarna 532198259

PLATE.DECK.LIFT.HUSQVARNA.GT

$26.99

$

Usually ships in 3-10 days

0

236

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, Qty 7

0

196

Husqvarna 532417778

CONSOLE.ASM.DCKLFT.W/RF.HQ.DLR
(Superseded to 532439674)

$102.99

$

Usually ships in 3-10 days

0

204

Husqvarna 532416613

HOOD VENT
(Superseded to 532416615)

$19.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 532448441

$

$

Currently unavailable

- -

Husqvarna 532431882

KIT GUARD BRUSH
(Superseded to 505568813)

$165.99

$

Usually ships in 3-10 days

0

68

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

165

Husqvarna 532194330

SUPPORT.TANK.REAR.B/TE

$22.99

$

Usually ships in 3-10 days

0

182

Husqvarna 532406859

DASH.LOWER.COMMON.12V.ADAPTOR

$113.99

$

In Stock, Qty 7

0

36

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532401825

FENDER.PNT.TX.GT.CH/FW.ORANGE
(Superseded to 532441208)

$262.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532408606

TRIM.HUSQ.TG/CRD.SERVICE

$26.99

$

Usually ships in 3-10 days

0

234

Husqvarna 532404742

BUMPER.HOOD.TEX.HUSQVARNA

$6.99

$

In Stock, only 2 left!

0

15

Husqvarna 532198907

LENS.LH.TEX.GT.HUSQ.CL

$44.99

$

In Stock, Qty 5

0

203

Husqvarna 532403076

VENT.SIDE.HOOD.HUSQ.LH.GRAY

$

$

Not available

18

Husqvarna 532408607

GRILL.ASM.HUSQ.TG/CRD.W/TRIM

$

$

Not available

152

Husqvarna 532194329

SHIELD.BROWNING/DEBRIS

$22.99

$

Usually ships in 3-10 days

0

235

Husqvarna 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

130

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

14

Husqvarna 532411046

HOOD
(Superseded to 532442396)

$

$

Not available

4

Husqvarna 532405012

RP LOGO
(Superseded to 532430771)

$8.99

$

Usually ships in 3-10 days

0

205

Husqvarna 532401709

SKIRT.HOOD.SIDE.HUSQ.RH.GREY

$

$

Not available

150

Husqvarna 532198512

AIR.DUCT.HOOD.TEX.GT.HUSQ

$40.99

$

Usually ships in 3-10 days

0

207

Husqvarna 532197198

BEZEL.RH.TEX.GT.HUSQ

$26.99

$

Usually ships in 3-10 days

0

178

Husqvarna 532199782

CARGO.ASM.NET.TXGT.W/C

$39.99

$

Usually ships in 3-10 days

0

210

Husqvarna 532199131

INSERT.HEX.GRILL.HUSQ.

$

$

Not available

211

Husqvarna 532199132

INSERT.HEX.GRILL.HUSQ.

$2.99

$

Usually ships in 3-10 days

0

209

Husqvarna 532199130

INSERT.HEX.GRILL.HUSQ.GREY

$6.99

$

Usually ships in 3-10 days

0

159

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

183

Husqvarna 874520520

BOLT.5/16-18X1-1/4 FULL THD

$4.99

$

Usually ships in 3-10 days

0

137

Husqvarna 532407590

BUMPER DASH

$6.49

$

In Stock, Qty 14

0

214

Husqvarna 532199145

CLIP.RETAINER.TINNER.

$6.49

$

In Stock, Qty 9

0

189

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

2

Husqvarna 532412282

DRAWBAR.LOWER.2PC.18/22

$53.99

$

In Stock, Qty 20+

0

194

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

212

Husqvarna 532199133

INSERT.HEX.GRILL.HUSQ.

$3.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532198906

LENS.RH.TEX.GT.HUSQ.CL

$44.99

$

Usually ships in 3-10 days

0

161

Husqvarna 532401826

CONSOLE.FUEL.WINDOW.HU

$9.49

$

In Stock, Qty 13

0

58

Husqvarna 532412281

DRAWBAR.UPPER.2PC,LRG.FENDER

$48.99

$

Usually ships in 3-10 days

0

217

Husqvarna 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 3 left!

0

162

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

181

Husqvarna 532403025

BUSHING.MNT.FEND.CRGO.

$

$

Not available

206

Husqvarna 532401711

SKIRT.HOOD.SIDE.HUSQ.LH.GREY

$

$

Not available
