YTH 2242 T (960430021-00) - Husqvarna 42" Yard Tractor (2006-01) Mower Deck Parts Diagram

42" Yard Tractor

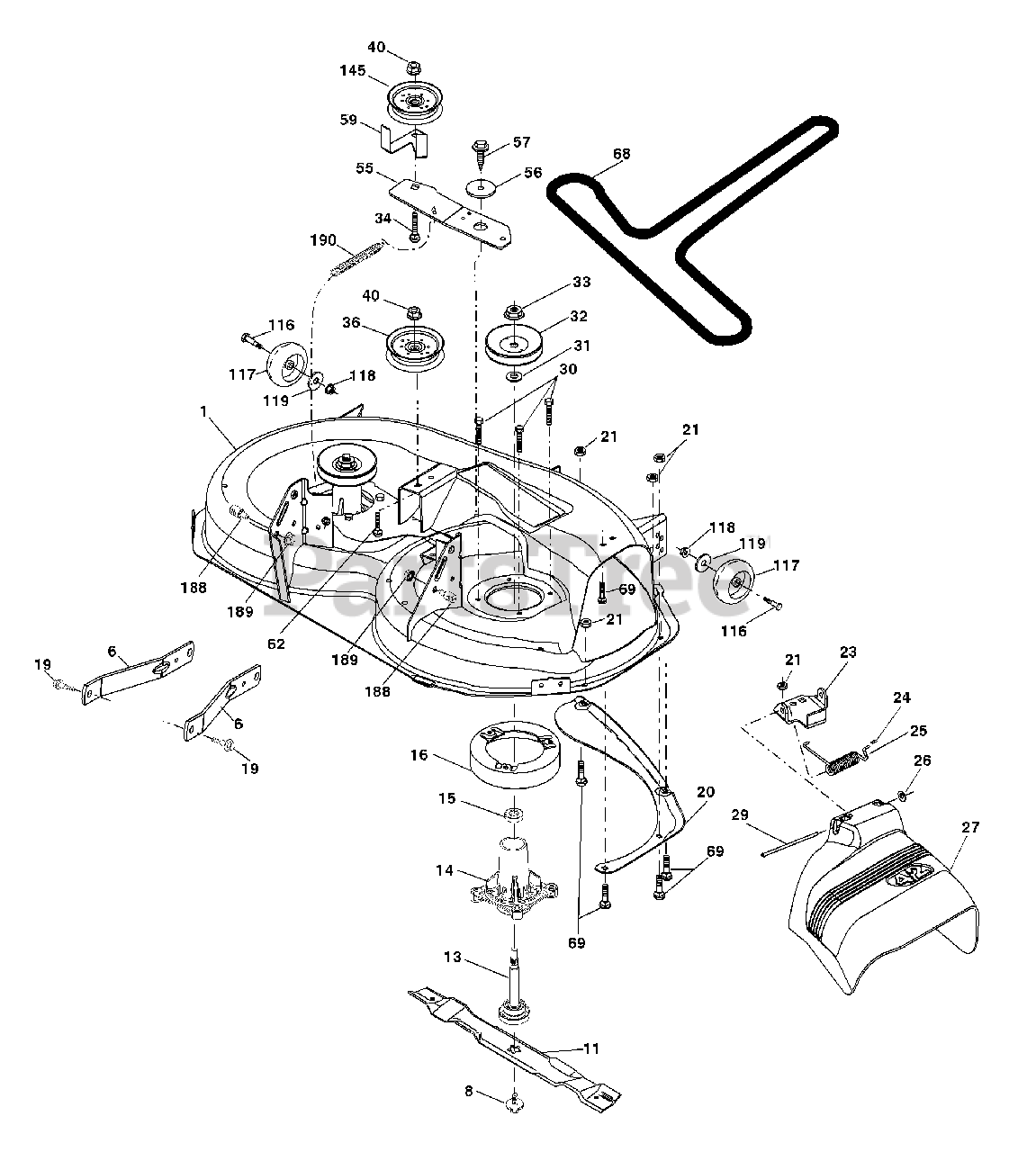

Mower Deck Parts Diagram

  • Title

1

Husqvarna 532402999

Mower Housing
(Superseded to 598602801)

$398.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532195186

Arm Suspension

$17.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532193003

Bolt/Washer asm 7/16-20 unf

$8.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532138971

Blade, 42" Hi-Lift

Note: (For bagging or discharge)

$20.99

$

In Stock, Qty 20+

0

Husqvarna 532134149

Blade, 42" Mulching Std
(Superseded to 594892701)

Note: (For mulching mowers only)

$

$

Not available

Husqvarna 532139775

Blade, 42" Mulching Premium
(Superseded to 594893101)

Note: (For better wear when mulching)

$

$

Not available

13

Husqvarna 532192872

Shaft Assembly, Mandrel
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

14

Husqvarna 532187281

Housing, Mandrel
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

15

Husqvarna 532110485

Bearing, Ball, Mandrel

$13.99

$

In Stock, Qty 11

0

16

Husqvarna 532174493

Stripper, Mower Deck

$7.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532196539

Bolt, Shoulder

$7.49

$

In Stock, Qty 20+

0

20

Husqvarna 532159770

Baffl e, Vortex

$

$

Not available

21

Husqvarna 873680500

Nut, Crownlock 5/16-18 unc
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532192557

Bracket, Defl ector

$9.49

$

In Stock, Qty 5

0

24

Husqvarna 532105304

Cap, Sleeve

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 532197026

Spring, Torsion, Defl ector

$10.99

$

In Stock, Qty 15

0

26

Husqvarna 532110452

Nut, Push

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532403004

Shield, Defl ector

$44.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532131491

Rod, Hinge
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Husqvarna 532173984

Screw Thdrol Rolling Wsh Hd
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 532187690

Washer, Spacer

$4.99

$

In Stock, Qty 8

0

32

Husqvarna 532173436

Pulley, Mandrel

$17.99

$

In Stock, Qty 20+

0

33

Husqvarna 532400234

Nut, Toplock, Flanged
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

34

Husqvarna 872110612

Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532196106

Pulley, Idler, Flat

$39.99

$

In Stock, Qty 20+

0

40

Husqvarna 873900600

Nut, Lock Flg. 3/8-16 unc
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

55

Husqvarna 532197249

Arm, Idler

$

$

Not available

56

Husqvarna 532199092

Spacer, Retainer

$6.99

$

In Stock, Qty 11

0

57

Husqvarna 817000616

Screw 3/8-16 x 1

$7.49

$

In Stock, only 3 left!

0

59

Husqvarna 532141043

Guard, Tuv Idler
(Superseded to 531165901)

$5.99

$

In Stock, only 2 left!

0

62

Husqvarna 872110616

Bolt Rd Hd Sq Nk 3/8-16 unc x 2

$6.49

$

Usually ships in 3-10 days

0

68

Husqvarna 532144959

V-Belt

$43.99

$

In Stock, Qty 20+

0

69

Husqvarna 872140505

Bolt
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

116

Husqvarna 532193406

Bolt, Shoulder
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

117

Husqvarna 532174873

Wheel, Gauge
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

145

Husqvarna 532177968

Pulley Idler

$31.99

$

In Stock, only 3 left!

0

188

Husqvarna 532195161

Stud Fastener

$

$

Not available

189

Husqvarna 873900500

Nut Lock Hex Flange
(Superseded to 583612701)

$

$

Not available

190

Husqvarna 532197251

Spring Mower Drive

$11.99

$

In Stock, only 2 left!

0

196

Husqvarna 819132012

Washer 13/32 x 1-1/4 x 12 Ga.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

Husqvarna 532192870

Mandrel Assembly
(Superseded to 587819701)

Note: (Includes housing, shaft and shaft hardware only-pulley not included)

$56.99

$

In Stock, Qty 20+

0

Husqvarna 532401224

Replacement Mower, Complete
(Superseded to 598602801)

$398.99

$

Usually ships in 3-10 days

0
