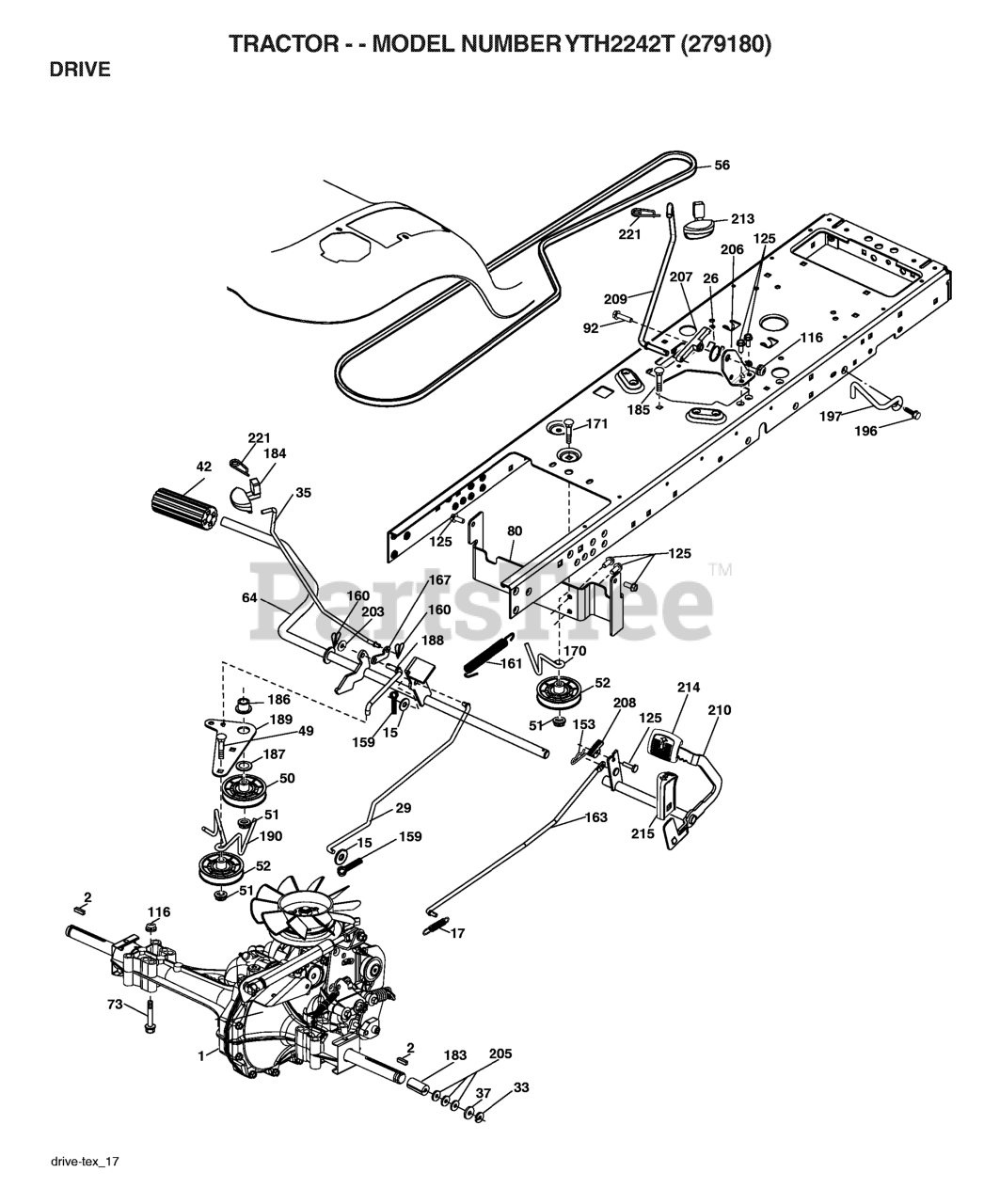

YTH 2242 T (917279180) - Husqvarna 42" Yard Tractor (2006-05) DRIVE Parts Diagram

42" Yard Tractor

DRIVE Parts Diagram

  • Title
50

Husqvarna 532194327

IDLER.FLAT.910.OFFSET

$20.99

$

In Stock, Qty 16

0

208

Husqvarna 532197869

GEAR.SECTOR.CONTROL.CR

$6.49

$

Usually ships in 3-10 days

0

160

Husqvarna 532169484

RETAINER CLIP

$

$

Not available

$6.49

$

Usually ships in 3-10 days

0

73

Husqvarna 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

170

Husqvarna 532194322

KEEPER.V-IDLER.CENTER.

$7.49

$

In Stock, only 1 left!

0

190

Husqvarna 532194318

KEEPER.BELLCRANK.DRIVE

$8.99

$

In Stock, only 1 left!

0

188

Husqvarna 532194323

RP.LINK.CLUTCH.GROUND.DRIVE
(Superseded to 582217001)

$5.99

$

In Stock, Qty 10

0

187

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available

125

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

186

Husqvarna 532194321

SPACER.RETAINER

$9.49

$

In Stock, Qty 9

0

196

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

80

Husqvarna 532400507

BRKT.STRP.TRQ.LT.HYD.C

$

$

Not available

$4.99

$

Usually ships in 3-10 days

0

205

$4.99

$

In Stock, Qty 20+

0

51

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 532197659

ROD.BRAKE.HG-0510

$18.99

$

Usually ships in 3-10 days

0

207

Husqvarna 532197868

LATCH.CONTROL.CRUISE
(Superseded to 587031401)

$

$

Not available

163

Husqvarna 532199000

ROD.PEDAL.CONTROL.0510

$

$

Not available

189

Husqvarna 532194317

BELLCRANK.GROUND.DRIVE.TEX.

$

$

Not available

206

Husqvarna 532197867

BRKT.MOUNT.LATCH.CRUIS
(Superseded to 532448596)

$5.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532197296

SPRING.BRAKE.HG3000/3500

$6.99

$

In Stock, only 1 left!

0

26

Husqvarna 532199679

SPRING.RETURN.CRUISE

$6.49

$

Usually ships in 3-10 days

0

153

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

167

Husqvarna 532196211

LATCH.BRAKE.SPRING
(Superseded to 532405257)

$4.99

$

Usually ships in 3-10 days

0

203

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

184

Husqvarna 532403118

HANDLE.PARKG.BRK.HUSQ X667
(Superseded to 532196439)

$12.99

$

In Stock, Qty 20+

0

2

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, only 4 left!

0

35

Husqvarna 532199591

ROD.BRAKE.PARKING.GT.H
(Superseded to 532435486)

$7.49

$

Usually ships in 3-10 days

0

214

Husqvarna 532401722

PEDAL.FORWARD.TEX.GT.4
(Superseded to 532421263)

$8.99

$

In Stock, only 1 left!

0

213

Husqvarna 532403119

KNOB.CONTROL.CRUSIE.HU

$12.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

116

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

42

Husqvarna 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

In Stock, Qty 14

0

197

Husqvarna 532195804

LINK.CLUTCH.ANIT-ROTAT

$8.99

$

In Stock, Qty 5

0

215

Husqvarna 532401723

PEDAL.REVERSE.TEX.GT.4

$14.99

$

Usually ships in 3-10 days

0

64

Husqvarna 532197865

SHAFT.ASM.PEDAL.BRK.CNTR

$53.99

$

In Stock, only 1 left!

0

161

Husqvarna 532195403

SPRING.RETURN.CLUTCH.2006
(Superseded to 532105709)

$11.99

$

Usually ships in 3-10 days

0

159

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

$3.49

$

Usually ships in 3-10 days

0

210

Husqvarna 532197860

ROCKER.ASM.PEDAL.CONTR

$51.99

$

Usually ships in 3-10 days

0

92

Husqvarna 874760520

BOLT
(Superseded to 874780520)

$4.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532194326

IDLER.V-GROOVE.910.OFFSET

$22.99

$

Usually ships in 3-10 days

0

209

Husqvarna 532199592

ROD.CONTROL.CRUISE.GT.

$10.99

$

Usually ships in 3-10 days

0

221

Husqvarna 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, only 2 left!

0

15

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

56

$60.99

$

In Stock, only 1 left!

0

33

$4.99

$

Usually ships in 3-10 days

0

183

Husqvarna 532137057

SPACER AXLE

$7.49

$

In Stock, only 3 left!

0
