YTH 2242 (954570383-A) - Husqvarna 42" Yard Tractor (2003-01) Electrical Parts Diagram

42" Yard Tractor

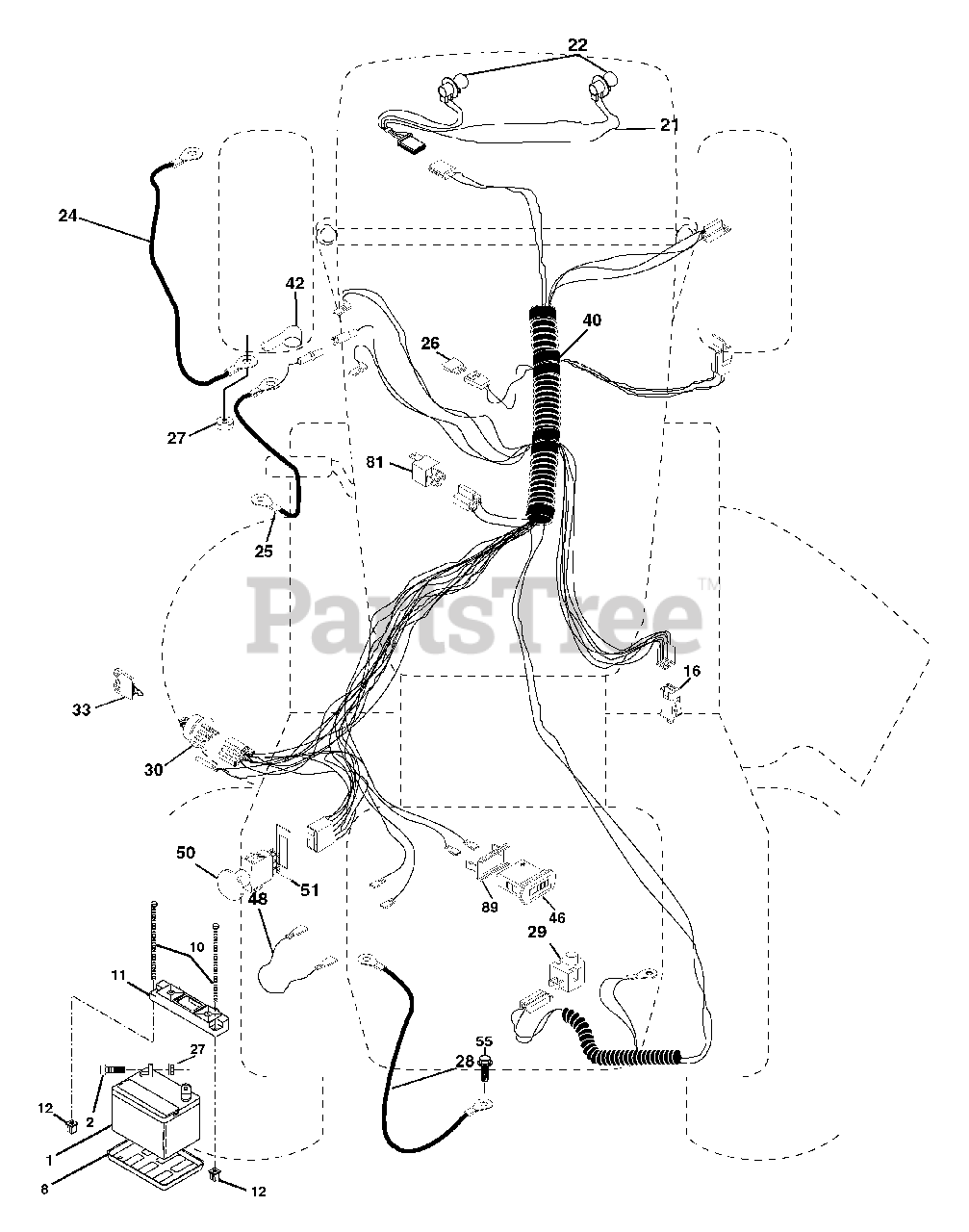

Electrical Parts Diagram

  • Title
1

Husqvarna 532144927

Battery
(Superseded to 532125603)

$194.99

$

In Stock, only 2 left!

0

2

Husqvarna 874760412

Bolt Hex Hd 1/4-20unc X 3/4

$7.49

$

In Stock, only 1 left!

0

8

Husqvarna 532124886

Tray Battery
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532145211

Bolt Brt Frt 1/4-20 x 75 Ainc
(Superseded to 532150177)

$

$

Not available

11

Husqvarna 532150109

Holddown Battery Front Mount

$

$

Not available

12

Husqvarna 532145769

Nut Push Nylon 1/4 Battery Frt
(Superseded to 532150177)

$

$

Not available

16

Husqvarna 532176138

Switch Interlock Push-In

$22.99

$

In Stock, Qty 5

0

21

Husqvarna 532175688

Harness Asm Light W/4152j

$44.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532004152

Bulb Light #1156

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532178909

Cable Battery 6 Ga 22 red w/16 wire

$26.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532124780

Cable Battery 6 Ga 11 red
(Superseded to 532004799)

$10.99

$

Usually ships in 3-10 days

0

$7.49

$

In Stock, only 1 left!

0

27

Husqvarna 873030800

Nut Flange, M8 x 1.25
(Superseded to 873350800)

$

$

Not available

28

Husqvarna 532145491

Cable Ground 6 Ga 21 black

$10.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532160784

Switch Plunger Nc Gray

$20.99

$

In Stock, only 1 left!

0

30

Husqvarna 532175566

Switch Ign

$26.99

$

In Stock, only 4 left!

0

33

Husqvarna 532140401

Key Ign Molded Generic

$6.99

$

In Stock, Qty 7

0

40

Husqvarna 532179724

Harness Ign.

$157.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532154336

Cover, Terminal, Red

$8.99

$

In Stock, only 2 left!

0

46

Husqvarna 532169635

Meter Hour
(Superseded to 532169642)

$103.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532140844

Adapter Ammeter

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532174651

Switch PTO
(Superseded to 582107601)

$28.99

$

In Stock, Qty 8

0

51

Husqvarna 532140405

Ring Retainer PTO

$6.49

$

Usually ships in 3-10 days

0

55

Husqvarna 817490508

Screw Thdrol 5/16-18 x 1-1/2 Tyt
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532109748

Relay Asm.

$30.99

$

In Stock, only 1 left!

0

89

Husqvarna 532169639

Bracket Snap-In Hourmeter

$6.49

$

Usually ships in 3-10 days

0
