YTH 220 TWIN (960410028-00) - Husqvarna Yard Tractor (2007-02) ENGINE 2 Parts Diagram

Yard Tractor

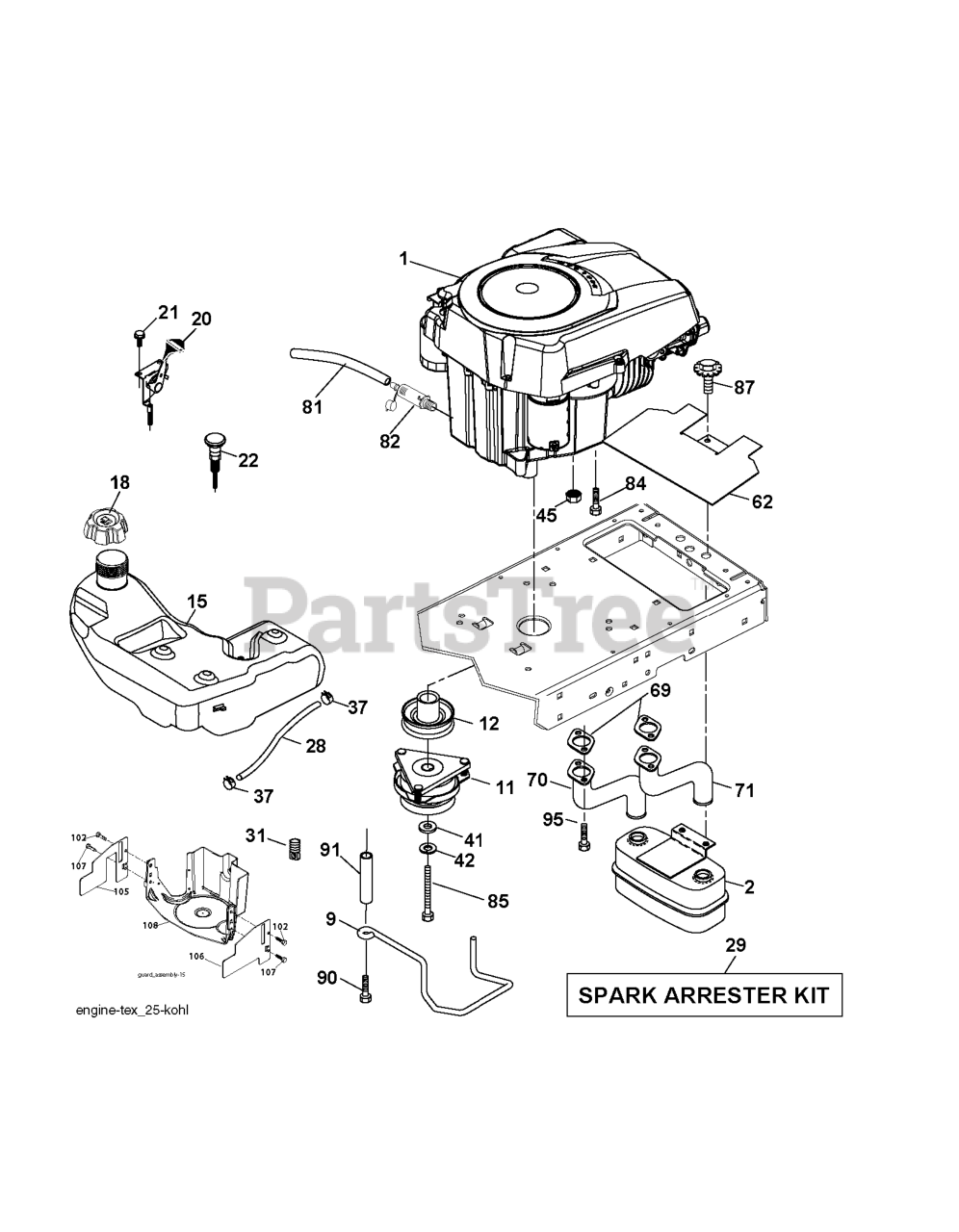

ENGINE 2 Parts Diagram

  • Title

107

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 1 left!

0

28

Husqvarna 532142158

REPL BY 532 00 85-43
(Superseded to 587044854)

$17.99

$

In Stock, only 1 left!

0

106

Husqvarna 532410617

SHIELD SIDE

$7.49

$

Usually ships in 3-10 days

0

82

Husqvarna 532181654

PLUG DRAIN OIL EASY
(Superseded to 532428287)

$18.99

$

In Stock, Qty 20+

0

105

Husqvarna 532410616

SHIELD SIDE

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532194267

CAP.FUEL.TANK.3"GREY
(Superseded to 584248702)

$17.99

$

In Stock, only 1 left!

0

95

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 17

0

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, only 4 left!

0

87

Husqvarna 532198239

BOLT.5/16-18UNCX1.W/SEMS.BLK

$7.49

$

In Stock, only 4 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

108

Husqvarna 532410532

NEEDS DESCRIPTION

$

$

Not available

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 20+

0

70

Husqvarna 532146699

RP.PIPE-EXHAUST LH
(Superseded to 583954501)

$22.99

$

In Stock, only 1 left!

0

85

Husqvarna 532179953

BOLT HEX 7/16-20 X 3.75 GR. 5
(Superseded to 501606601)

$4.99

$

In Stock, only 1 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

11

Husqvarna 532179335

CLUTCH MZ ZTR GT.48/54"1.125"

$341.99

$

In Stock, only 2 left!

0

71

Husqvarna 532146700

RP.PIPE-EXHAUST RH
(Superseded to 583954801)

$20.99

$

In Stock, Qty 14

0

84

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 13

0

41

Husqvarna 532126197

WASHER

$8.99

$

In Stock, Qty 20+

0

91

Husqvarna 532187495

BUSHING.1.375OD

$6.49

$

In Stock, only 1 left!

0

9

Husqvarna 532194319

KEEPER.BELT.ENGINE.3.25 (3 2)

$13.99

$

In Stock, only 1 left!

0

15

Husqvarna 532193499

TANK.FUEL.4GAL

$145.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532146629

RP SHIELD HEAT MUFFLER
(Superseded to 532434017)

$15.99

$

Usually ships in 3-10 days

0

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 532191611

SCREW
(Superseded to 532416358)

$

$

Not available

12

Husqvarna 532402463

PULLEY.ASM.ENGINE.1-1/8X3-1/4

$78.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532145006

PUSH CLIP

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 532182937

THROTTLE CONTROL
(Superseded to 532177328)

$47.99

$

In Stock, only 3 left!

0

22

Husqvarna 532191596

CONTROL.CHOKE.ERGO.PUSH-IN.BLA

$40.99

$

In Stock, only 1 left!

0

2

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

Usually ships in 3-10 days

0

69

NEEDS DESCRIPTION

Note: Gasket (Order part from Eng. Mfg.)

$

$

Not available
