YTH 21K46 (960480009-00) - Husqvarna 46" Yard Tractor (2010-12) ENGINE Parts Diagram

46" Yard Tractor

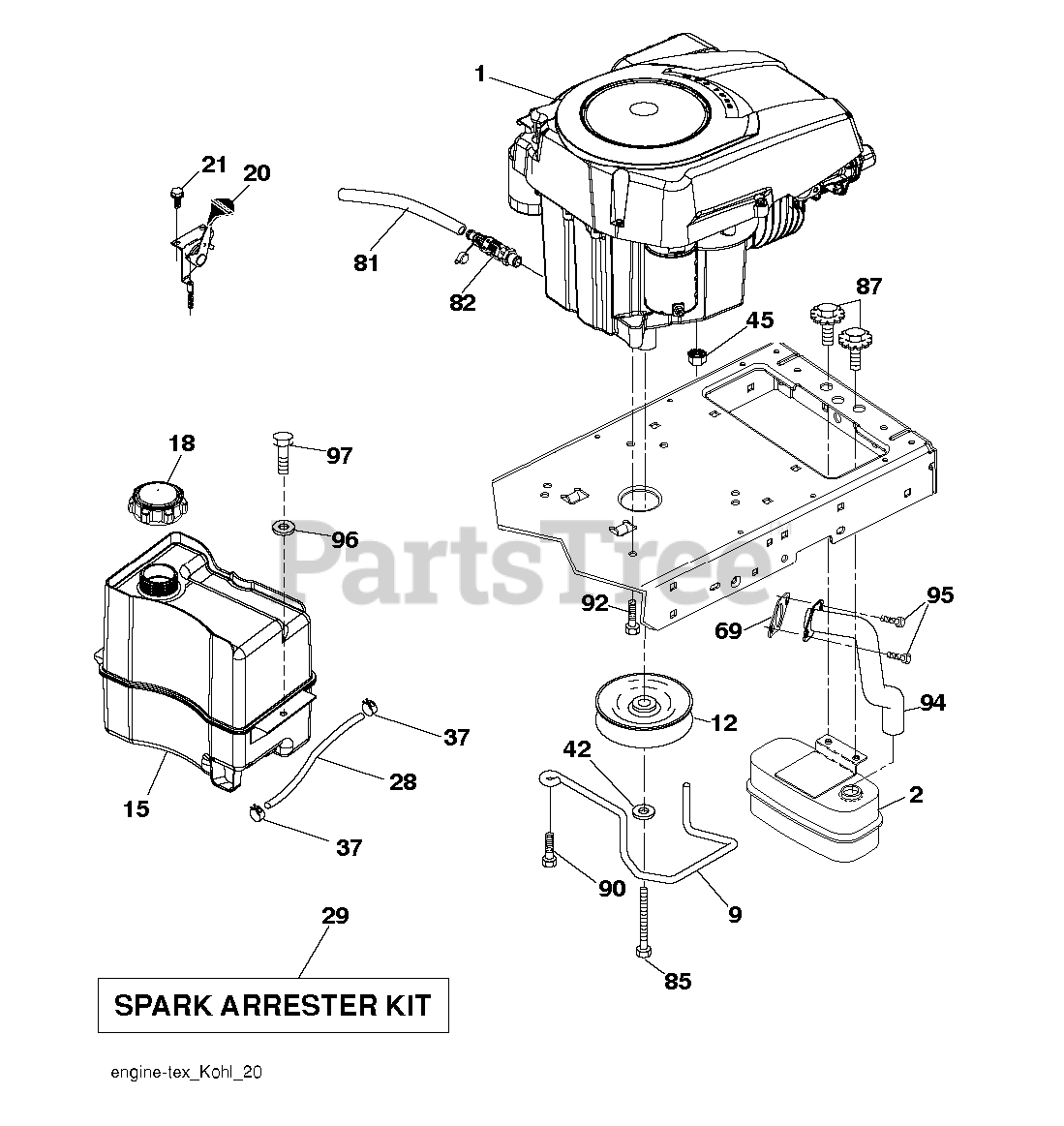

ENGINE Parts Diagram

  • Title
95

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 13

0

28

Husqvarna 532137040

LINE.FUEL.20
(Superseded to 587044820)

$11.99

$

In Stock, Qty 11

0

85

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

94

Husqvarna 532188654

RP.TUBE.EXHAUST.KOHL.COURAGE
(Superseded to 583955301)

$34.99

$

In Stock, only 2 left!

0

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

2

Husqvarna 532188655

MUFFLER.SINGLE.CYL.KOHL/B&S

$45.99

$

In Stock, only 2 left!

0

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

1

000000000

Note: ENGINE KOHLER MODEL SV610-3215

$

$

Not available

12

Husqvarna 532405472

RP_PULLEY ENGINE

$48.99

$

In Stock, only 1 left!

0

9

Husqvarna 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 584908001)

$

$

Not available

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 17

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 4 left!

0

20

Husqvarna 532401508

CONTROL.TH/CK.COBRA.KO

$34.99

$

In Stock, only 1 left!

0

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

Usually ships in 3-10 days

0

87

Husqvarna 537171877

BOLT 5/1618UNC X 3/4 W/ SEMS
(Superseded to 532171877)

$7.49

$

In Stock, Qty 5

0

15

Husqvarna 532407489

TANK.ASM.FUEL.FR.2.5GA.
(Superseded to 581290101)

$120.99

$

In Stock, only 1 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

Note: KIT

$182.99

$

In Stock, only 1 left!

0

69

Husqvarna 532185909

GASKET.EXHAUST.KOHLER

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, only 4 left!

0
