YTH 2148 XP (954170227-B) - Husqvarna 48" Yard Tractor (2005-01) CHASSIS & ENCLOSURES Parts Diagram

48" Yard Tractor

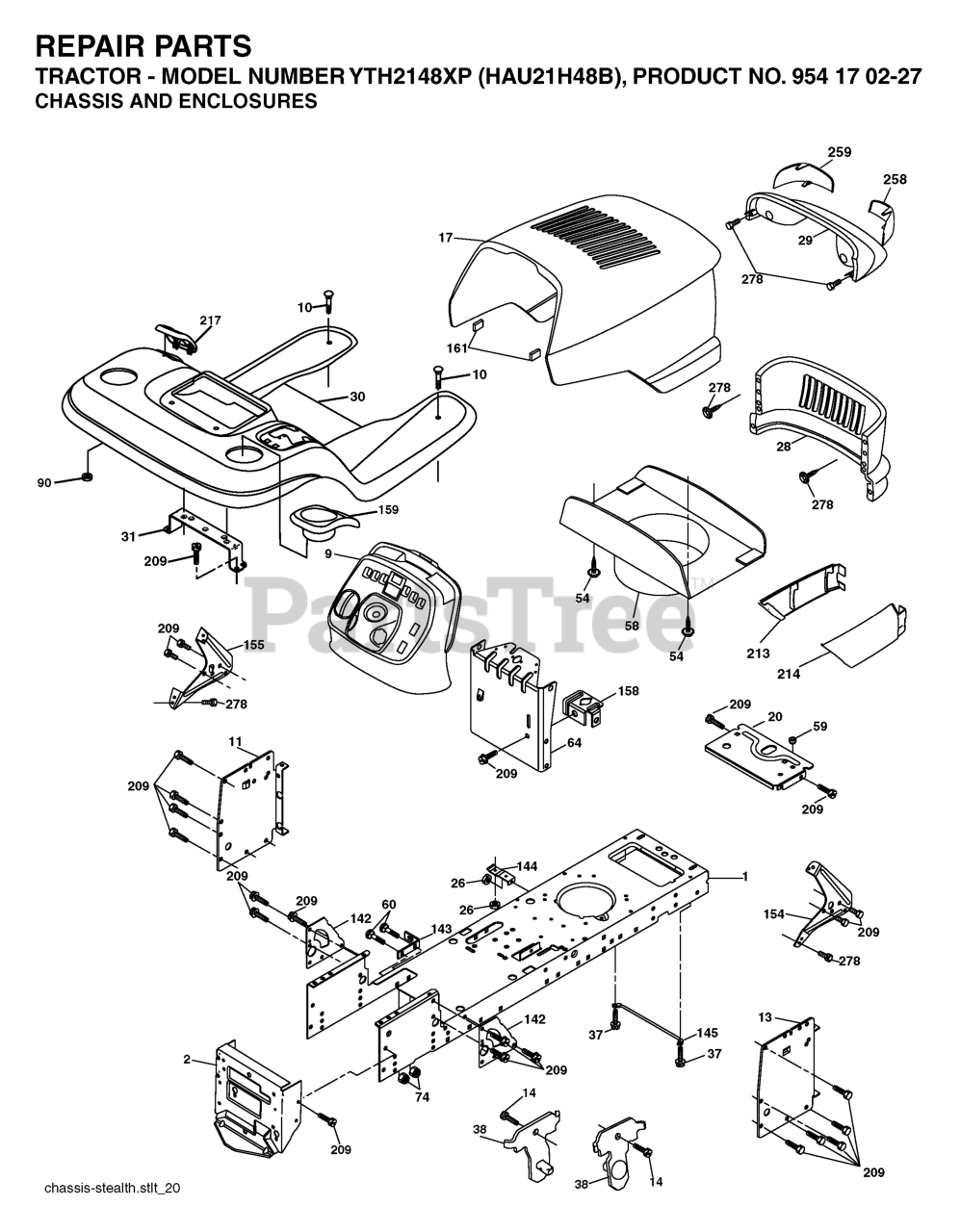

CHASSIS & ENCLOSURES Parts Diagram

  • Title
535 05 09-01

Husqvarna 535050901

PLATE CHASSIS

$

$

Not available

535 06 36-01

Husqvarna 535063601

REPLACEMENT BATTERY, A MOWER
(Superseded to 535096201)

$

$

Not available

535 04 95-02

$

$

Not available

535 05 44-01

$

$

Not available

535 10 32-01

Husqvarna 535103201

MICRO SWITCH

$

$

Not available

535 09 04-01

Husqvarna 535090401

RECTIFIER BOARD

$

$

Not available

535 08 87-01

Husqvarna 535088701

HARNESS, TILT SENSOR

$

$

Not available

535 06 80-01

$

$

Not available
