YTH 2148 (954572035-C) - Husqvarna 48" Yard Tractor (2005-01) STEERING Parts Diagram

48" Yard Tractor

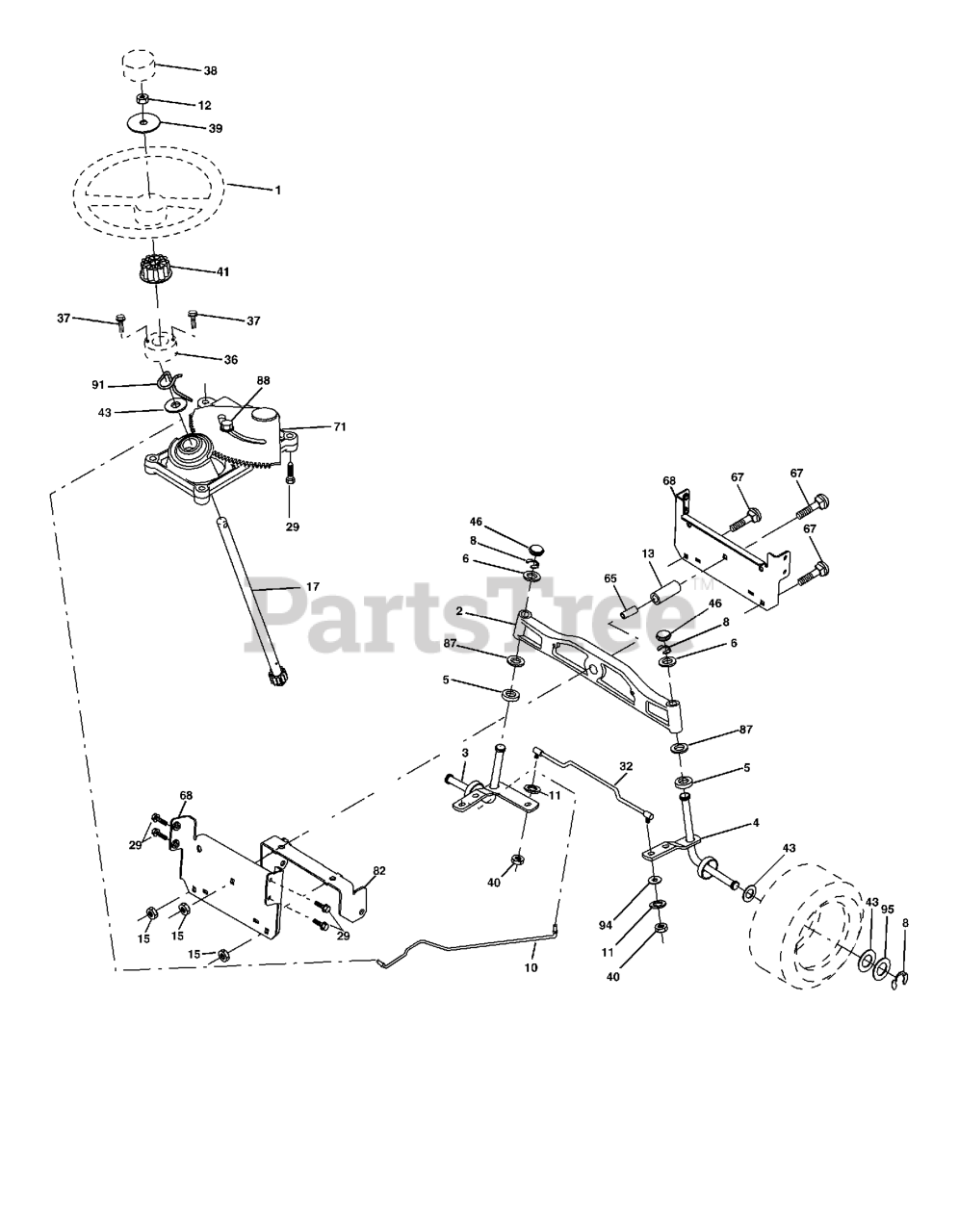

STEERING Parts Diagram

  • Title

39

Husqvarna 819183812

WASHER 9/16"ID, 2 3/8"OD

Note: 819183812

$9.49

$

Usually ships in 3-10 days

0

95

Husqvarna 532188967

WASHER.HARDENED

Note: 532188967

$4.99

$

In Stock, Qty 20+

0

94

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

Note: 819121414

$3.49

$

Usually ships in 3-10 days

0

5

Husqvarna 532124931

THRUST WASHER
(Superseded to 532006266)

Note: 532124931

$7.49

$

In Stock, Qty 8

0

36

Husqvarna 532155105

BUSHING, STRG. BLK
(Superseded to 532155108)

Note: 532155105

$7.99

$

In Stock, only 1 left!

0

82

Husqvarna 532169835

BRACKET
(Superseded to 532199978)

Note: 532169835

$15.99

$

Usually ships in 3-10 days

0

67

Husqvarna 872110618

BOLT CARRIAGE

Note: 872110618

$6.49

$

In Stock, only 2 left!

0

88

Husqvarna 532175118

BOLT, SHOULDER 7/16-20

Note: 532175118

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 596238701)

Note: 810040600

$4.99

$

In Stock, Qty 15

0

3

Husqvarna 532169840

SPINDLE.ASM.LH.15"TIRES
(Superseded to 596873901)

Note: 532169840

$18.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532159945

STEERING WHEEL ADAPTOR

Note: 532159945

$

$

Not available

71

Husqvarna 532175146

STEERING ASM

Note: 532175146

$182.99

$

In Stock, only 3 left!

0

40

Husqvarna 873540600

NUT CROWNLOCK 3/8-24

Note: 873540600

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 817000612

SCREW, 3/8-16X3/4

Note: 817000612

$4.99

$

In Stock, only 2 left!

0

34

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

Note: 810040500

$3.99

$

In Stock, only 2 left!

0

32

Husqvarna 532180580

ROD TIE BALL J WSL

Note: 532180580

$

$

Not available

38

Husqvarna 532166626

CAP.WHEEL.STEERING.GREY
(Superseded to 532172092)

Note: 532166626

$17.99

$

Usually ships in 3-10 days

0

12

Husqvarna 873940800

NUT.HEX.1/2-20

Note: 873940800

$7.49

$

In Stock, only 4 left!

0

65

Husqvarna 532160367

SPACER BRACE AXLE
(Superseded to 532414736)

Note: 532160367

$6.99

$

In Stock, only 4 left!

0

10

Husqvarna 532175121

DRAGLINK.15".TIRES.2001

Note: 532175121

$68.99

$

In Stock, only 2 left!

0

37

Husqvarna 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

Note: 532152927

$7.49

$

In Stock, only 2 left!

0

87

Husqvarna 532173966

WASHER, FLAT .781 X 1 1/2"

Note: 532173966

$7.49

$

Usually ships in 3-10 days

0

4

Husqvarna 532169839

SPINDLE.ASM.RH.15"TIRES
(Superseded to 596873801)

Note: 532169839

$31.99

$

In Stock, only 1 left!

0

8

Husqvarna 812000029

RING CLIP

Note: 812000029

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532121748

WASHER

Note: 532121748

$4.99

$

In Stock, Qty 20+

0

46

Husqvarna 532121232

CAP.SPINDLE.BLACK

Note: 532121232

$4.99

$

In Stock, Qty 8

0

15

Husqvarna 532145212

NUT
(Superseded to 532409149)

Note: 532145212

$4.99

$

In Stock, Qty 20+

0

2

Husqvarna 532184706

AXLE ASSY FRONT
(Superseded to 532193542)

Note: 532184706

$169.99

$

In Stock, only 1 left!

0

68

Husqvarna 532169827

BRACE.AXLE.15"TIRES

Note: 532169827

$21.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532166627

STEERING WHEEL
(Superseded to 532159944)

Note: 532166627

$

$

Not available

17

Husqvarna 532177883

SHAFT ASM STRG

Note: 532177883

$120.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532136518

TUBE, PIVOT AXLE

Note: 532136518

$9.99

$

Usually ships in 3-10 days

0

91

Husqvarna 532175553

CLIP.STEERING

Note: 532175553

$13.99

$

In Stock, only 1 left!

0

43

Husqvarna 532121749

WASHER

Note: 532121749

$3.49

$

Usually ships in 3-10 days

0
