YTH 2148 (954572035-C) - Husqvarna 48" Yard Tractor (2005-01) DRIVE Parts Diagram

48" Yard Tractor

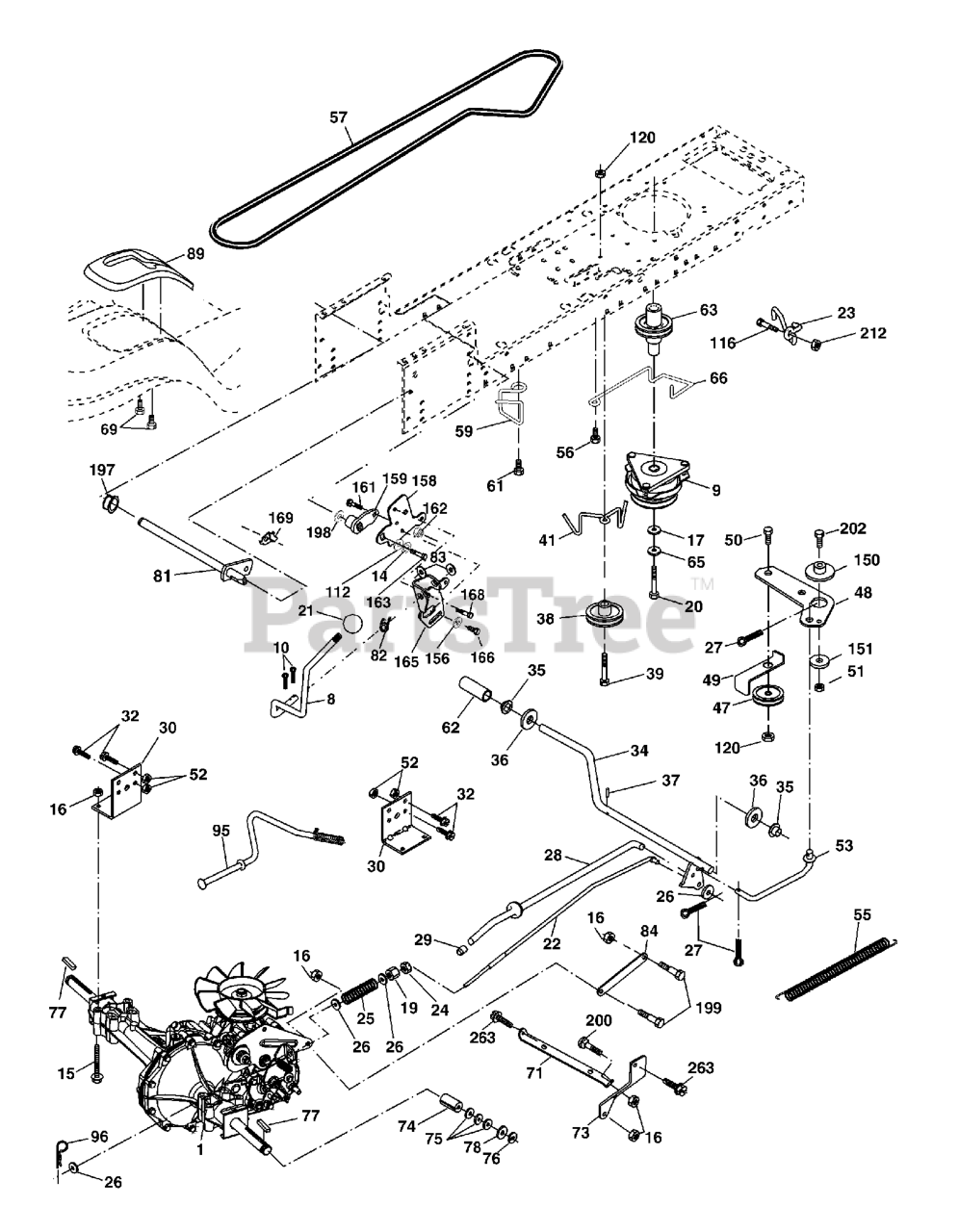

DRIVE Parts Diagram

  • Title
29

Husqvarna 532071673

PLUNGER CAP

Note: 532071673

$5.99

$

Usually ships in 3-10 days

0

158

Husqvarna 532165589

BRACKET
(Superseded to 532437458)

Note: 532165589

$7.49

$

Usually ships in 3-10 days

0

162

Husqvarna 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

Note: 873680400

$4.99

$

In Stock, Qty 15

0

48

Husqvarna 532154407

BELLCRANK, CLUTCH

Note: 532154407

$8.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532169183

STRAP TORQUE LH HYDRO

Note: 532169183

$7.49

$

Usually ships in 3-10 days

0

161

Husqvarna 872140406

BOLT
(Superseded to 872110407)

Note: 872140406

$4.99

$

Usually ships in 3-10 days

0

166

Husqvarna 817490510

CAPSCREW.HXHD.FLG.5/16-18X.625

Note: 817490510

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 810040400

LOCKWASHER
(Superseded to 596029801)

Note: 810040400

$3.99

$

In Stock, only 2 left!

0

53

Husqvarna 532105710

LINK, CLUTCH LT
(Superseded to 532199652)

Note: 532105710

$13.99

$

Usually ships in 3-10 days

0

163

Husqvarna 874780416

BOLT

Note: 874780416

$6.49

$

Usually ships in 3-10 days

0

57

Husqvarna 532140294

DRIVE BELT, LTH & YTH TRACTORS

Note: 532140294

$39.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532165596

SHAFT ASM CROSS TAPERED

Note: 532165596

$40.99

$

Usually ships in 3-10 days

0

212

Husqvarna 532145212

NUT
(Superseded to 532409149)

Note: 532145212

$4.99

$

In Stock, Qty 20+

0

197

Husqvarna 532169613

NYLINER SNAP 5/8" ID

Note: 532169613

$7.49

$

In Stock, Qty 6

0

112

Husqvarna 819091210

WASHER LT

Note: 819091210

$6.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532142432

SCREW.HI-LO.CONSOLE

Note: 532142432

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 873800600

NUT
(Superseded to 873680600)

Note: 873800600

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532179114

PULLEY IDLER COMPOSITE

Note: 532179114

$31.99

$

Usually ships in 3-10 days

0

96

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

Note: 532124788

$9.99

$

In Stock, Qty 12

0

52

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

Note: 873680500

$3.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532123205

RETAIN BELT

Note: 532123205

$6.49

$

Usually ships in 3-10 days

0

62

Husqvarna 532124872

PEDAL COVER T
(Superseded to 532008883)

Note: 532124872

$6.49

$

In Stock, Qty 14

0

77

Husqvarna 532123583

SQUARE KEY

Note: 532123583

$4.99

$

In Stock, only 4 left!

0

168

Husqvarna 532165492

BOLT.SHOULDER.5/16-18X

Note: 532165492

$10.99

$

In Stock, only 3 left!

0

59

Husqvarna 532169691

KEEPER, BELT CENTER

Note: 532169691

$26.99

$

Usually ships in 3-10 days

0

95

Husqvarna 532170201

CONTROL ASM. BYPASS HYDRO

$12.99

$

Usually ships in 3-10 days

0

32

Husqvarna 874760512

BOLT
(Superseded to 874780512)

Note: 874760512

$4.99

$

In Stock, Qty 20+

0

47

Husqvarna 532127783

IDLER PULLEY
(Superseded to 532139245)

Note: 532127783

$37.99

$

In Stock, only 1 left!

0

17

Husqvarna 532126197

WASHER

Note: 532126197

$8.99

$

In Stock, only 3 left!

0

83

Husqvarna 819171216

WASHER
(Superseded to 734117771)

Note: 819171216

$6.49

$

In Stock, only 2 left!

0

66

Husqvarna 532154778

KEEPER BELT ENGINE

Note: 532154778

$12.99

$

Usually ships in 3-10 days

0

51

Husqvarna 873680600

LOCKNUT

Note: 873680600

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532165866

ROD SHIFT FENDER ADJUST STLT

Note: 532165866

$

$

Not available

63

Husqvarna 532174607

PULLEY- ENGINE

Note: 532174607

$66.99

$

In Stock, only 1 left!

0

35

Husqvarna 532120183

BEARING.NYLON

Note: 532120183

$6.99

$

In Stock, only 3 left!

0

84

Husqvarna 532169594

LINK TRANSAXLE

Note: 532169594

$

$

Not available

37

Husqvarna 532124963

DRIVE PIN
(Superseded to 532002882)

Note: 532124963

$4.99

$

In Stock, Qty 7

0

27

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

Note: 876020412

$6.49

$

In Stock, Qty 20+

0

120

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

Note: 873900600

$4.99

$

In Stock, Qty 20+

0

78

Husqvarna 532121748

WASHER

Note: 532121748

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 873350600

NUT
(Superseded to 873220600)

Note: 873350600

$6.49

$

In Stock, only 2 left!

0

75

Husqvarna 532121749

WASHER

Note: 532121749

$3.49

$

Usually ships in 3-10 days

0

76

Husqvarna 812000001

E-RING LT

Note: 812000001

$4.99

$

Usually ships in 3-10 days

0

198

Husqvarna 532169593

WASHER.NYL.7/8IDX.105"HYD CR

Note: 532169593

$11.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532179334

CLUTCH ELECTRIC
(Superseded to 532414717)

Note: 532179334

$399.99

$

In Stock, only 1 left!

0

20

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

Note: 532173937

$4.99

$

In Stock, only 1 left!

0

169

Husqvarna 532165580

PLATE.FASTENING.CROSS.SHAFT

Note: 532165580

$6.99

$

Usually ships in 3-10 days

0

55

Husqvarna 532105709

SPRING, RETURN LT

Note: 532105709

$11.99

$

Usually ships in 3-10 days

0

151

Husqvarna 819133210

WASHER 12/32X2X10GA
(Superseded to 532413524)

$

$

Not available

82

Husqvarna 532165711

SHIFT SPRING

Note: 532165711

$7.49

$

In Stock, only 1 left!

0

50

Husqvarna 872110612

BOLT.3/8-16X1.50

Note: 872110612

$6.49

$

Usually ships in 3-10 days

0

22

Husqvarna 532169498

ROD BRAKE HYDRO

Note: 532169498

$20.99

$

Usually ships in 3-10 days

0

165

Husqvarna 532165623

RP BRACKET
(Superseded to 532438250)

Note: 532165623

$7.49

$

Usually ships in 3-10 days

0

56

Husqvarna 817060620

SCREW.3/8-16

Note: 817060620

$7.49

$

In Stock, Qty 11

0

202

Husqvarna 872110614

BOLT

Note: 872110614

$6.49

$

Usually ships in 3-10 days

0

36

Husqvarna 819211616

WASHER LT

Note: 819211616

$6.49

$

Usually ships in 3-10 days

0

74

Husqvarna 532137057

SPACER AXLE

Note: 532137057

$7.49

$

In Stock, only 3 left!

0

200

Husqvarna 872140508

BOLT

Note: 872140508

$2.99

$

Usually ships in 3-10 days

0

263

Husqvarna 817000612

SCREW, 3/8-16X3/4

Note: 817000612

$4.99

$

In Stock, only 2 left!

0

28

Husqvarna 532175765

ROD, PARKING BRAKE

Note: 532175765

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 819131316

WASHER
(Superseded to 596565301)

Note: 819131316

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 532178289

BRKT ASM MTNG
(Superseded to 532190736)

Note: 532178289

$40.99

$

In Stock, only 3 left!

0

89

Husqvarna 532191816

CONSOLE SHIFT STL AUTO
(Superseded to 532188309)

Note: 532191816

$8.99

$

Usually ships in 3-10 days

0

73

Husqvarna 532169182

STRAP TORQUE RH HYDRO

Note: 532169182

$17.99

$

In Stock, only 1 left!

0

199

Husqvarna 532169612

BOLT SHOULDER 5/16-18 UNC
(Superseded to 596231101)

Note: 532169612

$4.99

$

In Stock, only 2 left!

0

1

NEEDS DESCRIPTION

Note: (Order Parts From Transaxle Manufacturer)

$

$

Not available

21

Husqvarna 532140845

KNOB.DELUXE.(PISTOL.GRIP).BLAC

Note: 532140845

$13.99

$

Usually ships in 3-10 days

0

39

Husqvarna 872110622

BOLT

Note: 872110622

$4.99

$

In Stock, Qty 10

0

156

Husqvarna 532166002

WASHER.SRRTD.5/16

Note: 532166002

$6.49

$

Usually ships in 3-10 days

0

34

Husqvarna 532175578

SHAFT, FOOT PEDAL

Note: 532175578

$31.99

$

Usually ships in 3-10 days

0

61

Husqvarna 817120614

SCREW 3/8-16X.875
(Superseded to 817490614)

Note: 817120614

$

$

Not available

150

Husqvarna 532175456

SPACER, RETAINER

Note: 532175456

$

$

Not available

159

Husqvarna 532183900

RB HUB.SHIFT
(Superseded to 532444304)

Note: 532183900

$8.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532169592

BRKT, TRNSXLE MNT 20"

Note: 532169592

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532106888

SPRING ROD LT
(Superseded to 532151332)

Note: 532106888

$6.49

$

In Stock, only 1 left!

0

65

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

Note: 810040700

$

$

Not available

116

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

Note: 872140608

$4.99

$

In Stock, only 1 left!

0

16

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

Note: 873800500

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532175556

KEEPER, BELT IDLER

Note: 532175556

$9.99

$

In Stock, only 1 left!

0

15

Husqvarna 874490544

BOLT HEX 5/16-18 GR 5

Note: 874490544

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 876020416

PIN COTTER

Note: 876020416

$3.99

$

Usually ships in 3-10 days

0
