YTH 2148 (954572035-B) - Husqvarna 48" Yard Tractor (2005-01) SEAT Parts Diagram

48" Yard Tractor

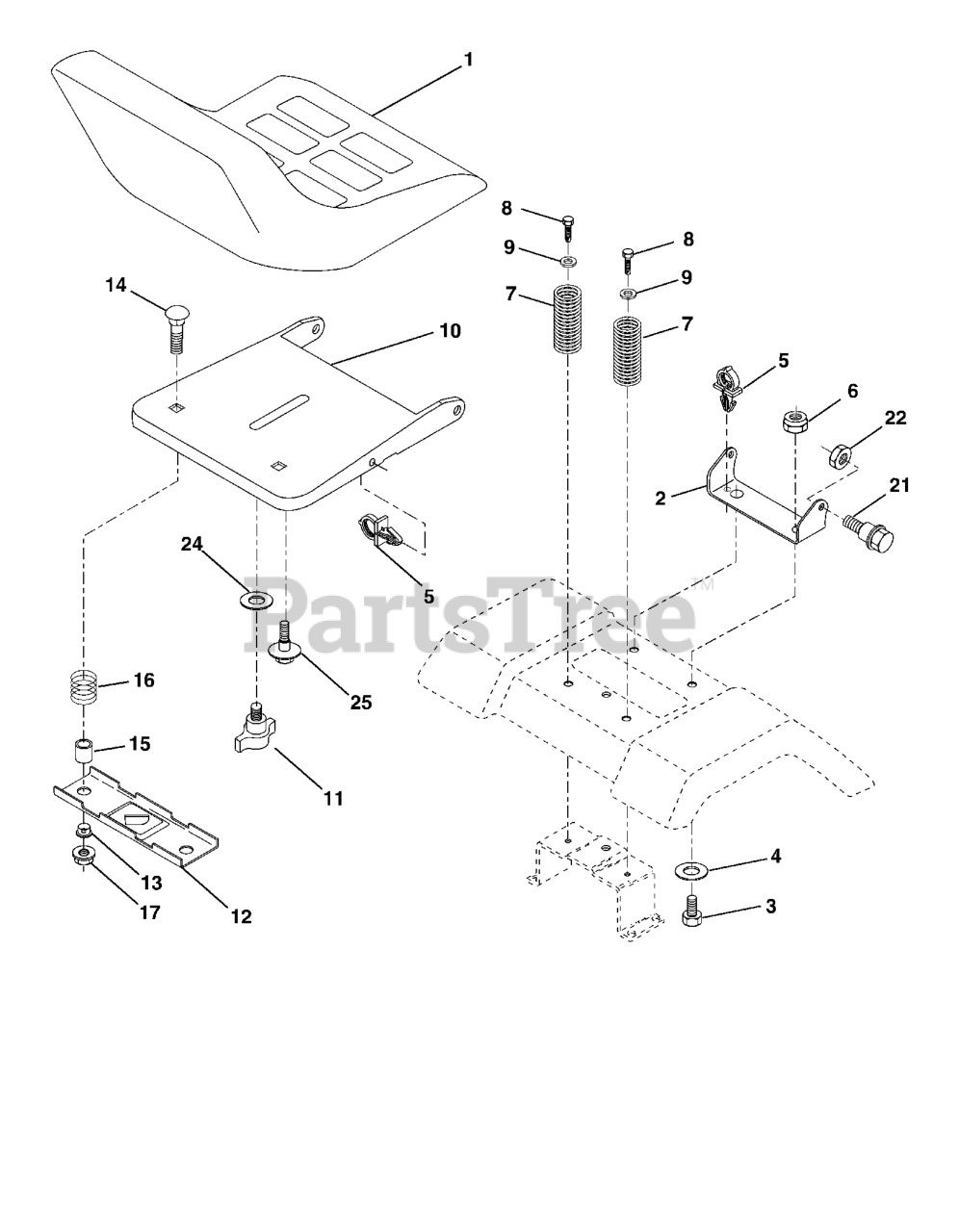

SEAT Parts Diagram

  • Title
21

Husqvarna 532171852

BOLT.SHOULDER.5/16-18
(Superseded to 587907801)

Note: 532171852

$4.99

$

In Stock, Qty 8

0

22

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

Note: 873800500

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 871110616

BOLT, HEX 3/8-16X1

Note: 871110616

$4.99

$

In Stock, only 2 left!

0

10

Husqvarna 532182493

PAN SEAT
(Superseded to 532195530)

Note: 532182493

$21.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532145006

PUSH CLIP

Note: 532145006

$6.49

$

Usually ships in 3-10 days

0

1

Husqvarna 532188715

SEAT.XH150.GRY
(Superseded to 532439700)

Note: 532188715

$

$

Not available

2

Husqvarna 532140551

SEAT PIVOT BRKT

Note: 532140551

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532127018

BOLT,SHOULD

Note: 532127018

$7.49

$

In Stock, only 1 left!

0

14

Husqvarna 872050412

BOLT.ROUND.HEAD.SQUARE.NECK

Note: 872050412

$6.49

$

Usually ships in 3-10 days

0

24

Husqvarna 819171912

WASHER

Note: 819171912

$7.49

$

In Stock, only 1 left!

0

7

Husqvarna 532124181

SPRING COMPRESSION
(Superseded to 587613301)

Note: 532124181

$6.99

$

In Stock, only 4 left!

0

13

Husqvarna 532121248

BUSHING

Note: 532121248

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 819131610

WASHER PM

Note: 819131610

$6.49

$

In Stock, Qty 7

0

16

Husqvarna 532123740

SPRING COMPRESSED

Note: 532123740

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 873800600

NUT
(Superseded to 873680600)

Note: 873800600

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532123976

NUT T
(Superseded to 873900400)

Note: 532123976

$4.99

$

In Stock, Qty 15

0

15

Husqvarna 532121749

WASHER

Note: 532121749

$3.49

$

Usually ships in 3-10 days

0

9

Husqvarna 819131614

WASHER
(Superseded to 819131612)

Note: 819131614

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532166369

KNOB.SEAT.ADJ.WINGNUT

Note: 532166369

$10.99

$

In Stock, only 1 left!

0

12

Husqvarna 532121246

BRKT SWITCH
(Superseded to 532174648)

Note: 532121246

$10.99

$

Usually ships in 3-10 days

0

8

Husqvarna 817000616

SCREW 3/8-16X1

Note: 817000616

$7.49

$

In Stock, only 3 left!

0
